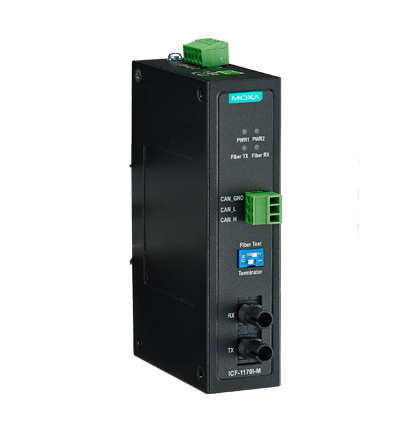

| • CAN Communication |
| CAN Interface |
ISO 11898-2, Terminals (CAN_H, CAN_L,CAN_GND) |
| Protocols |
CAN 2.0A and 2.0B (ISO 11898-2) |
| Connector Type |
3-pin removable screw terminal x1 |
| Termination Resistor |
Dip switch selector for 120 Ω terminal resistor |
| Transfer Rate |
Up to 1 Mbps |
| System Delay |
150 ns |
| Isolation Protection |
2 kV |
| ESD Protection |
Supports 15 kV |
| Transmission Distance |
Max 2 km (depends on the data rate and the protocol used) |
| Note |
The transmission distance is limited by the signal rate, as indicated in the ISO 11898-2 standard. |
| LED Indicators |
PWR1, PWR2, Fiber TX, Fiber RX |
| • Fiber Communication |
| Connector Type |
ST (multi-mode) fiber ports |
| Support Cable |
50/125, 62.5/125, or 100/140 μm (multi-mode) |
| Wavelength |
850 nm |
| TX Output |
Multi-mode (> -5 dBm) |
| Rx Sensitivity |
Multi-mode (-20 dBm) |
| • Physical Characteristics |
| Housing |
Metal |
| Dimensions |
30.3 x 70 x 115 mm (1.19 x 2.76 x 4.53 in) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 85°C (-40 to 185°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC dual power inputs for redundant power |
| Power Consumption |
ICF-1170I: 221 mA @ 12 V
Alarm Contact: 1 relay output with current carrying of 1 A @ 24 VDC |
| Voltage Reversal Protection |
Protects against V+/V- reversal |
| Over Current Protection |
1.1 A (protects against two signals shorted together) |
| • Standards and Certifications |
| Safety |
UL 508, EN 60950-1 |
| EMC |
CE, FCC |
| EMI |
EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS |
EN 61000-4-2 (ESD) Level 4,
EN 61000-4-3 (RS) Level 2,
EN 61000-4-4 (EFT) Level 4,
EN 61000-4-5 (Surge) Level 3,
EN 61000-4-6 (CS) Level 2,
EN 61000-4-8 (PFMF) Level 3 |
| Freefall |
IEC 60068-2-32 |
| Green Product |
RoHS, CRoHS, WEEE |
| • MTBF (mean time between failures) |
| Time |
792,085 hrs |
| Database |
Telcordia (Bellcore), GB |
