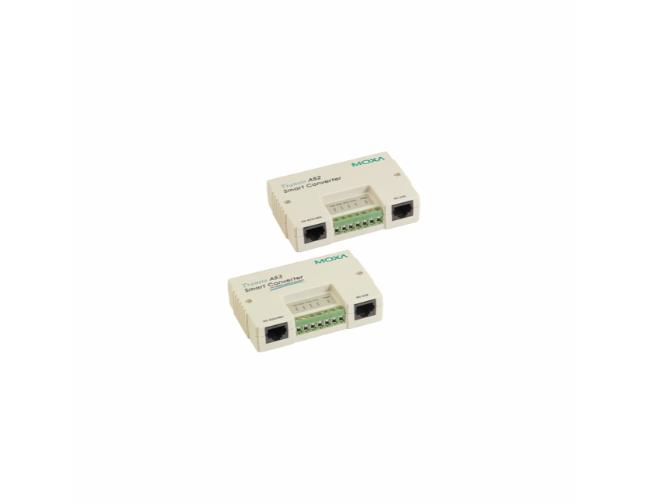

A53-DB9F w/o Adapter - RS-232/422/485 converter with 2 kV isolation, DB9F cable by MOXA
|
|
|
A53-DB9F w-o Adapter_SUMMARY.html
- Automatic Data Direction Control (ADDC) RS-485 data control
- Automatic baudrate detection
- RS-422 hardware flow control: CTS, RTS signals
- LED indicators for power and signal status
- RS-485 multidrop operation, up to 32 nodes
- 2 kV isolation protection (A53)
- Built-in 120-ohm termination resistors
|
|
|
A53-DB9F w-o Adapter_DESCRIPTION.html
A53-DB9F w-o Adapter - The A52 and A53 are general RS-232 to RS-422/485 converters designed for users who need to extend RS-232 transmission distance and increase networking capability.
A53-DB9F w-o Adapter.html
Serial Signals |
RS-232 |
- TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
|
RS-422 |
- Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
|
RS-485-4w |
|
RS-485-2w |
|
Environmental Limits |
Operating Temperature |
|
Storage Temperature (package included) |
|
Ambient Relative Humidity |
- 5 to 95% (non-condensing)
|
Standards and Certifications |
EMC |
|
EMI |
- CISPR 32, FCC Part 15B Class A
|
EMS |
- IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC
61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 1 kV IEC
61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m IEC 61000-4-8 PFMF
|
Environmental Testing |
- IEC 60068-2-1
IEC 60068-2-14 IEC 60068-2-2 IEC 60068-2-3
|
Vibration |
|
|
