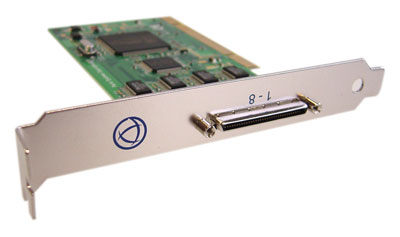

Perle's SPEED LE range of universal PCI serial cards provide the low-cost, high performace solution companies need when adding RS232 serial ports to a Windows or Linux based PC or Server. The range of SPEED LE Serial Cards are PCI 2.3 compliant for 3.3v and 5v PCI bus slot support, and PCI-X compliant. Available in standard and low profile form factors, all SPEED LE cards come with a 15 Kv electrostatic discharge protection providing optimum reliability and peace of mind when connecting industrial data acquisition, Point of Sale, automation equipment and other RS232 serial devices to a PC or server.
SPEED LE cards are certified with 32 and 64 bit versions of Windows, Vista and Linux operating systems. For Solaris x86, Solaris SPARC, SCO OpenServer and SCO UnixWare, we recommend UltraPort Serial Cards.
Supported Operating System Drivers
- Windows® Server 2012 R2
- Windows® 8.1 (32 / 64 Bit)
- Windows® Server 2012
- Windows® 8 (32 / 64 Bit)
- Windows® Server 2008 R2
- Windows® 7 (32 / 64 Bit)
- Windows® Server 2008 (32 / 64 Bit)
- Windows® Vista (32 / 64 Bit)
- Windows® Server 2003 (32 / 64 Bit)
- Windows® XP (32 / 64 Bit)
- Windows® 2000
- Linux 3.x, 2.6.x, 2.4.x, 2.2.16+ (32 / 64 Bit)
For Solaris x86, Solaris SPARC, SCO OpenServer and SCO UnixWare, we recommend UltraPort Serial Cards.
Connectors
- SPEED8 LE HD: Single VHDCI-68 female connector
- Connector Options include DB9, DB25 and RJ45 connector boxes and fan-out cables
Serial Port Protection
15Kv Electrostatic Discharge Protection ( ESD )
Signal support
TXD, RXD, RTS, CTS, DTR, DCD, DSR, RI
UART
16C950 ( 16C550 compatible )
Environmental
Approvals
- FCC Part15 ,Class B
- EN55022:1998 + A1:2000 + A2:2003 Class A
- EN55024:1998 + A1:2001 + A2:2003
- EN60950-1:2001 +A11:2004
Form Factor
SPEED8 LE HD are low profile MD1 cards shipped with standard sized brackets. Low profile brackets are included
Warranty: Limited Lifetime Warranty
HSTUS Number: 8517.62.0050
ECCN Number: 5A991
