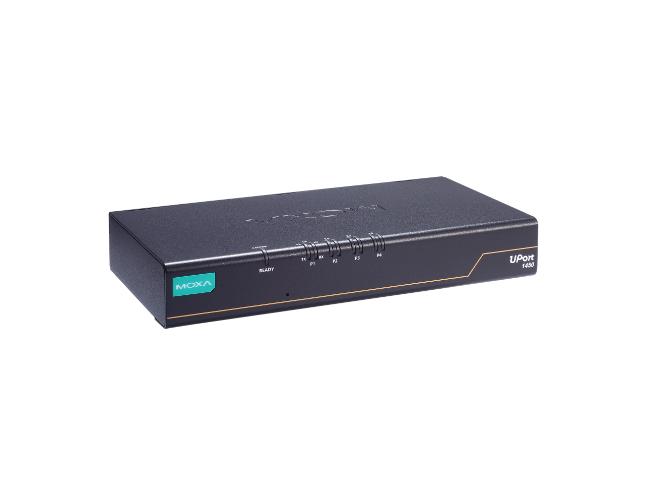

UPort 1450I - 4 Port USB-to-Serial Hub,RS-232/422/485, w/ Isolation
by MOXA
|
|
|
|
- Hi-Speed USB 2.0 for up to 480 Mbps USB transmission
- 921.6 kbps maximum baudrate for super fast data transmission
- 15N high retention USB type B connector
- 128-byte FIFO and on-chip H/W, S/W flow control
- Built-in 15 kV ESD protection for all serial ports
- Hassle-free COM port retention
- Drivers provided for Windows/WinCE/Linux
- Choose bus power or external power
- Locking power jack
|
|
|
Overview
The UPort® 1400 USB-to-serial converters, UPort 1450I, allow you to connect 4 RS-232 devices to your laptop or workstation through the USB (Universal Serial Bus) port. The UPort® 1400 converters are compatible with new and legacy serial devices, and are perfect for mobile, instrumentation, and point-of-sale applications.
Typical Application—Satellite Truck
Before the arrival of mobile satellite technology, applications relied on terrestrial communication systems to collect data in remote locations and broadcast the signals to a geostationary communications satellite. Satellite trucks, which are commonly used in modern Satellite News Gathering (SNG), allow command centers to gather intelligence and other data with greater mobility and flexibility than before. Due to the mobile nature of SNG technology, onboard data acquisition equipment needs to be highly portable yet provide seamless and reliable communication. In addition, satellite trucks are outfitted with various degrees of video production and editing gear that need to be readily available and connected at all times. One of our clients uses Moxa’s UPort® 1450I converter as their solution of choice for reliable device connectivity in their fleet of satellite trucks. The UPort® 1450I has the following features:
- No data loss with 128-byte FIFO and on-chip flow control for hardware and software
- Electrostatic protection and LED indicators designed for critical environments
- Small form factor and wall-mountable to save space
- Easy COM port configuration and plug & play capability
| • USB Interface |
| Compliance |
USB 1.1/2.0 compliant |
| Connector |
USB type B |
| Speed |
480 Mbps (Hi-Speed USB) and 12 Mbps (Full-Speed USB) |
| • Serial Interface |
| Number of Ports |
4 |
| Serial Standards |
RS-232/422/485 |
| Connector |
DB9 male |
| • Serial Line Protection |
| ESD Protection |
15 kV embedded |
| Electrical Isolation |
2 kV (UPort 1450I only) |
| • Performance |
| Baudrate |
50 bps to 921.6 kbps (including 500 kbps) |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS, XON/XOFF |
| FIFO |
128 bytes |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-4w |
TxD+(B), TxD-(A), RxD+(B), RxD-(A), GND |
| RS-485-2w |
Data+(B), Data-(A), GND |
| RS-485 Data Direction |
ADDC® (Automatic Data Direction Control) |
| • Operating Systems |
| Windows Real COM Drivers |
Windows 2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2012 (x64), Windows Embedded CE 5.0/6.0 |
| • Android Driver |
| Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
| Note |
Please refer to Moxa’s website for the latest driver support information. |
| • Physical Characteristics |
| Housing |
SECC sheet metal (1 mm) |
| Weight |
Product only: 720 g (1.59 lb)
Packaged: 1320 g (2.91 lb) |
| Dimensions |
204 x 30 x 125 mm (8.03 x 1.18 x 4.92 in) |
| • Environmental Limits |
| Operating Temperature |
0 to 55°C (32 to 131°F) |
| Storage Temperature |
-20 to 75°C (-4 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Altitude |
Up to 2000 m |
| Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Standards and Certifications |
| Safety |
UL 60950-1 |
| EMC |
CE, FCC |
| EMI |
EN 55022 Class A, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Subpart B Class A |
| EMS |
EN 55024, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11 |
| Green Product |
RoHS, CRoHS, WEEE |
| • Power Requirements |
| Power Consumption |
• 12 to 48 VDC external power:
UPort 1450: 385 mA @ 12 VDC
UPort 1450I: 360 mA @ 12 VDC |
| • MTBF (mean time between failures) |
| Time |
UPort 1450: 546,770 hrs |
| Database |
UPort 1450: Telcordia (Bellcore), GB |
|
