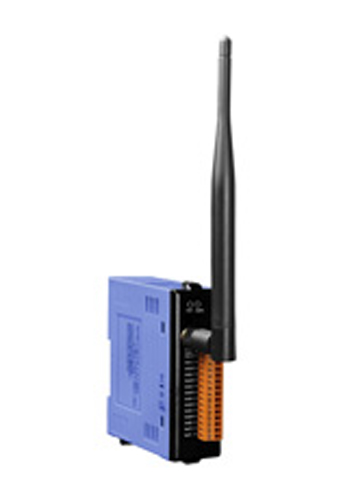

ZT-2017 - 8 Channel Analog Inputs with High Common Voltage Protection
by ICP DAS
|
|
|
|
Zigbee Wireless 8-channel Analog Input (Current) Zigbee Data Acquisition Module with High Common Voltage Protection, Supports DCON and Modbus RTU Protocols and operating temperatures from -25 °C ~ +75 °C (-13F ~ 167F), communication distance up to 700 meters (2297 feet).
|
|
|
The ZT-2017 is a wireless 16-bit, 8-channel differential analog input ZigBee module that provides a programmable input range on all analog channels (+/-150 mV, +/-500 mV, +/-1 V, +/-5 V or +/-10 V) . Each analog channel can be configured for an individual input range and has a high 240 Vrms overvoltage protection. Users can easily to configure the module address, protocol, checksum, ZT-PID, ZT-channel and type code settings using a combination of rotary and DIP switches.
- ISM 2.4 GHz Operating Frequency
- Fully Compliant with 2.4G /ZigBee Specifi cations
- Wireless Transmission Range up to 700 m
- GUI Confi guration Software (Windows Version)
- 8 Differential Analog Input Channels (mV, V)
- Individual Channel Confi guration
- Overvoltage Protection up to 240 Vrms
- EFT and ESD Protection
- DIN-Rail Mounting
Building Automation, Factory Automation, Machine Automation, Remote Maintenance, Remote Diagnosis, Testing Equipment.
| Communication Interface |
| Wireless Standards |
ZigBee 2007 Pro |
| Transmission Power |
11 dBm(FCC Certifi cated) ( Max 19 dBm) |
| 2.4 GHz Antenna |
5 dBi Omni directional |
| Transmission Range (LoS) |
700 m (Typical) |
| Certification |
CE/FCC, FCC ID |
| Max. Slaves in a ZigBee Network |
255 |
| ZB-100R/ZB-100T Support |
- |
| Protocols |
Supports DCON and Modbus RTU Protocols |
| Hot Swap |
Rotary and DIP switch |
| LED Indicators |
| Power |
1 LED, red |
| ZigBee Communication |
1 LED, green |
| Power |
| Power Consumption |
1.4 W Max. |
| Mechanical |
| Flammability |
Fire Retardant Materials (UL94-V0 Level) |
| Dimensions (W x L x H) |
33 mm x 87 mm x 107 mm |
| Installation |
DIN-Rail |
| Environment |
| Operating Temperature |
-25 °C ~ +75 °C |
| Storage Temperature |
-30 °C ~ +80 °C |
| Relative Humidity |
10 ~ 90% RH, Non-condensing |
| Analog Input |
| Input Channels |
8 Differential |
| Input Types |
+/-10 V, +/-5 V, +/-1V, +/-500 mV, +/-150 mV or -20 mA ~ +20 mA
(Requires Optional External 125 Ω Resistor) |
| Resolution |
Normal Mode |
16-bit |
| Fast Mode |
12-bit |
| Sampling Rate |
Normal Mode |
16-bit, 10 Samples/Sec. (Total) |
| Fast Mode |
12 bit, 60 Samples/Sec. (Total) |
| Accuracy |
Normal Mode |
+/-0.1% of FSR |
| Fast Mode |
+/-0.5% of FSR |
| -3dB Bandwidth |
Normal Mode |
15.7 Hz |
| Fast Mode |
78.7 Hz |
| Zero Drift |
+/-20 μV/°C |
| Span Drift |
+/-25 ppm/°C |
| Common Mode Rejection |
86 dB |
| Normal Mode Rejection |
100 dB |
| Input Impedance |
>2 MΩ |
| Overvoltage Protection |
240 Vrms |
| Individual Channel Configuration |
Yes |
| Intra-module Isolation, Field-to-Logic |
3000 VDC |
| ESD Protection |
+/-4 kV contact for each channel |
|
|
