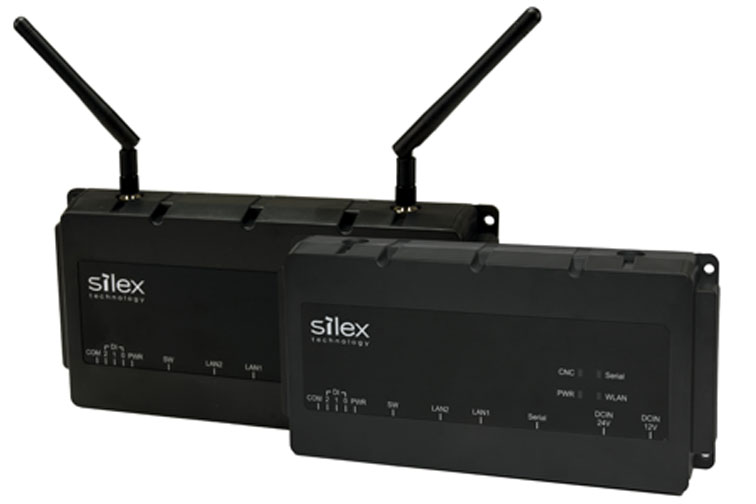

| Product Name |
FBR-100AN |
| Wired LAN |
RJ-45：×2 (MAC Addresses x2)
10Base-T / 100Base-TX / 1000Base-T (auto recognition) |
| Wireless LAN |
IEEE 802.11a/b/g/n 2Tｘ2R
■2.4GHz：1～13ch
■5GHz：W52/W53/W56/W58
(2.4/5 GHz on supports STA, AP function not supported) |
| Interface |
D-Sub9 male: x1 (RS-232C / 422A / 485)
Digital input: 3bit
|
| Switch |
PUSH switch: × 1
DIP switch: 4bit
|
| LED |
Body: × 4 (2 color LED)
RJ-45: × 2 (2 color LED)
|
| Operating Environment |
Temperature：-20～+50℃
Humidity：20～90%RH(No Condensation) |
| Storage Environment |
Temperature：-20～+55℃
Humidity：20～90%RH(No Condensation) |
| Power Supply |
AC adapter or DC12-24V
|
| Max. Power Consumption |
24V/0.28A
12V/0.54A |
| External Dimension |
230 * 105 * 36mm (without antenna)
|
| Weight |
450g |
| Included Items |
Body, standard pole antenna (FBR-100AN only), setup guide, simple declaration of conformity, GPL information sheet
|
| Certifications |
[EMC]
VCCI Class-A
FCC Part15 Subpart B Class-A
ICES-003 Issue 6 Class-A
EN55032 Class-A, EN301489-17
[Radio]
Japan・US・Canada・EU
[RoHS]
EU RoHS |
| Warranty |
5 years |
| MSRP |
Open |
| Dust / Waterproof |
IP53 compliant
|
| Vibration Resistant |
Sine wave 1.0G (XY direction) 10 to 500Hz
|
| Anti-static (Noise) |
Anti-static: Contact discharge ± 4kV Air discharge ± 8kV
Noise: Power supply line ± 2kV Signal line ± 1kV
|
| Corrosion Resistant |
40 ± 2 ℃ / 80 ± 5% RH / 15ppm (H2S hydrogen sulfide gas) / 96H
|
| Security |
Open / Shared (WEP)
WPA-PSK / EAP (AUTO)
WPA2-PSK / EAP (AES / AUTO)
IEEE 802.1X authentication (EAP-TLS / TTLS / FAST, PEAP / LEAP Wireless LAN only) |
| Software Support |
Client software that supports MTConnectver.1.3.1 and later verified software:
•Fanuc MT-LINKiver.3.6 and later
•iQEdgecrossMTConnectData Collector ver1.1.3.0 and later
•Device Explorer OPC server V6.2.0 and later and Device Gateway V2.2.0 and later (Takebishi)
•IoT Data Share Ver.1.14.1 and later (Denso wave) |
