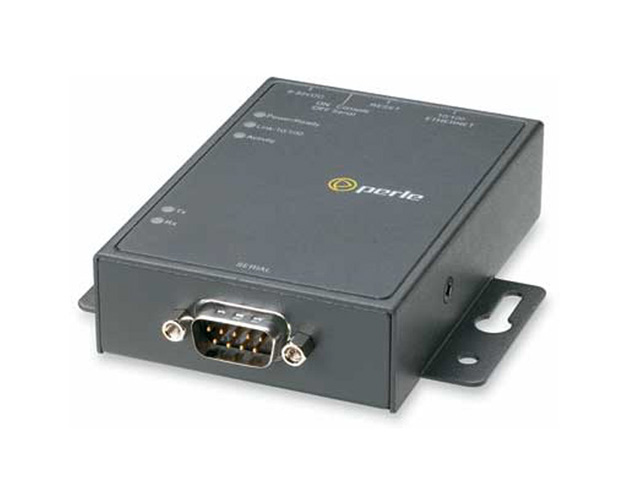

04031790 IOLAN DG1 TX Device Server: 1 x DB9M connector with software selectable RS232/422/485 interface, 10/100/1000 Ethernet by PERLE

04031790 IOLAN DG1 TX Device Server: 1 x DB9M connector with software selectable RS232/422/485 interface, 10/100/1000 Ethernet
by PERLE

Write a review Write a review
  • 1 serial Ports (DB9M)
  • Software selectable RS232/422/485 serial port interface
  • 10/100/1000 Ethernet
  • Extended temperature model available



Mfg SKU # : 04031790
List Price : $562.00
Our Price : $478.00
Stock : 142
Quantity :

The IOLAN DS1T G9 Device Server, 04031790,  is the best choice for simple serial to Ethernet connectivity applications. Delivering a cost effective solution in a compact size, the IOLAN DS/TS offers flexibility and advanced TrueSerial® technology making it ideal for applications that require an authentic serial connection across an Ethernet network. IOLAN DS1T G9 Device Servers are also available with support for Extended Temperature Ranges.

Features and Benefits

  • TrueSerial®  delivers the most authentic serial connections across Ethernet
  • Powerful processors for the best throughput and performance on the market
  • Indicators for network and serial interfaces for easy troubleshooting
  • Plug & Play installation utility eliminates configuration hassles for all IOLANs on you IP network
  • TruePort software provides true remote serial ports over an Ethernet LAN
  • Share a serial port with multiple TCP or UDP servers
  • Software Development Kit available to develop powerful custom applications
  • Power over serial cable models eliminate costs of a separate power installation
  • Next Generation IP support (IPv6) for investment protection and network compatibility
  • Compact and protective solid steel enclosure for tabletop, wall mount or DIN rail mounting
Diagram DS1







Flexible and Reliable Serial to Ethernet Connections

The IOLAN DS/TS is ideal for connecting serial-based COM port, UDP or TCP socket based applications to remote devices. Perle’s TruePort re-director provides fixed TTY or COM ports to server based applications enabling communication with remote devices connected to Perle device servers. You can also tunnel serial data between devices across an IP network.

Easy to set up and manage, the IOLAN DS1 has a software selectable RS-232/422/485 interface capability which simplifies setup and eliminates mechanical tampering associated with DIP switch based products.

Perle’s Device Management software, shipped as standard with the IOLAN DS/TS, provides better centralised control and management of multiple units resulting in maximum uptime for your remote equipment. Protection against electrostatic discharges and power surges is provided on the IOLAN DS/TS with its robust 15Kv ESD protection circuitry enabling organisations to utilise this solution with confidence.

IOLAN Plug-ins

Backed with the experience of connecting hundreds of thousands of different devices to Ethernet over the years, using a Perle Device Server you can rest assured that virtually any device with a serial COM port will operate in conjunction with your desired application exactly as it did when you had it directly connected.  If the unlikely event occurs that the Perle Device Server does not enable this out of the box, Perle will make it work.

Perle IOLAN Device Servers utilize customer installable “Device Plug-ins” to successfully network devices where other solutions have failed. Request a free engineering consultation now.

Advanced IP Technology

With support for Next Generation IP (IPv6) the IOLAN range provides organizations with investment protection to meet this rapidly growing standard.

Demand for IPv6, which is compatible with IPv4 addressing schemes, is driven by the need for more IP address. With the implementation and rollout of advanced cellular networks, a robust method is needed to handle the huge influx of new IP addressable devices on the Internet. In fact, the US Department of Defense has mandated that all equipment purchased be IPv6 compatible. In addition, all major Operating Systems such as Windows, Linux, Unix and Solaris, as well as routers, have built-in support for IPv6.

It is therefore important for end users and integrators to select networking equipment that incorporates the IPv6 standard. The IOLAN line with support for IPv6 already built in, is the best choice in serial to Ethernet technology.

Hardware Specifications - IOLAN DS1 - TS2

  IOLAN DS1 IOLAN TS2 IOLAN DS1 G IOLAN TS2 G
Processor MPC852T, 66 Mhz, 87 MIPS 600Mhz ARM Processor
Memory
RAM MB 16 512
Flash MB 4 4000
Interface Ports
Number of Serial Ports 1 2 1 2
Serial Port Interface Software selectable RS-232/422/485 on DB25M, DB25F, DB9M or RJ45 RS-232on RJ45 - 10 pin Software selectable RS-232/422/485 on DB25F, DB9M or RJ45 RS-232on RJ45 - 10 pin
Sun / Solaris Sun / Oracle ‘Solaris' Safe - no "break signal" sent during power cycle causing costly server re-boots or downtime
Serial Port Speeds 50bps to 230Kbps with customizable baud rate support 300bps to 230Kbps with customizable baud rate support
Data Bits 5,6,7,8, 9-bit protocol support
Parity Odd, even, Mark, Space, None
Flow Control Hardware, Software, Both, None
Serial Port Protection 15Kv Electrostatic Discharge Protection ( ESD )
Local Console Port RS232 on Serial Port
Network 10-base T / 100-base TX ethernet RJ45 Autosensing 1000-base-T / 100-base TX / 10-base T Auto-MDIX
Software selectable Ethernet speed 10/100 Auto Software selectable Ethernet speed 10/100/1000
Software selectable Half/Full/Auto duplex
Ethernet Isolation 1.5Kv Magnetic Isolation
Power
Power Supply 120 V AC (USA), 230V AC (International) Wall Power Adaptor included
Power Supply Options Power via External power 9-30v DC, 4.8 Watts uses standard 5.5mm x 9.5mm x 2.1mm barrel socket, Power IN over serial cable.
Nominal Input Voltage 12v DC / 24v DC
Input Voltage Range 9-30v DC
Power IOLAN over Serial 9 - 30v DC with DB25 and RJ45 models N/A 9 - 30v DC with DB25 and RJ45 models
Typical Power Consumption '@ 12v DC ( Watts ) 1.7 1.7 1.9 2
Indicators
LEDs Power / Ready
Network Link
Network Link activity
Serial: Transmit and Receive data per port
Environmental Specifications
Heat Output ( BTU/HR ) 5.8 5.8 6.8 8.9
MTBF ( Hours ) 124,004 299,680 267,483 254,834

Calculation model based on MIL-HDBK-217-FN2 @ 30 °C

Operating Temperature 0ºC to 55ºC,
  32ºF to 131ºF
Storage Temperature -40ºC to 66ºC,
  -40ºF to 150ºF
Humidity 5 to 95% (non condensing) for both storage and operation.
Case SECC Zinc plated sheet metal (1 mm)
Ingress Protection Rating IP40
Mounting Wall or Panel mounting . DIN Rail mounting kit optional
Product Weight and Dimensions
Weight .23 KG (.51 lbs)
Dimensions 90 x 64 x 22 (mm), 3.6 x 2.5 x 0.87 (in) case dimensions not including mounting tabs,
  90 x 89 x 24 (mm), 3.6 x 3.5 x 0.87 (in) includes mounting tabs.
Packaging
Shipping Dimensions 260 x 170 x 70 (mm), 10.2 x 6.7 x 2.8 (in)
Shipping Weight 0.49 KG (1.1 lbs)
Regulatory Approvals
Emissions CFR47:2003, Chapter 1, Part 15 Subpart B,(USA) Class A CFR47 FCC Part 15 Subpart B:2015
ICES-003, Issue 4, February 2004 (Canada) ICES-003:2016 Issue 6:2016
CISPR 32:2015/EN 55032:2015 (Class A)
CISPR 16-2-3:2010/A2:2014
EN61000-3-2 : 2010, Limits for Harmonic Current Emissions EN61000-3-2:2014, Limited for Harmonic Current Emissions
EN61000-3-3 : 2010, Limits of Voltage Fluctuations and Flicker EN61000-3-3:2013, Limits of Voltage Fluctuations and Flicker
Immunity CISPR 24:2010/EN 55024:2010
EN61000-4-2: 2009 Electrostatic Discharge
EN61000-4-3: 2006/A2:2010: RF Electromagnetic Field Modulated
EN61000-4-4: 2004 Fast Transients
EN61000-4-5: 2006 Surge
EN61000-4-6: 2009 RF Continuous Conducted
EN61000-4-8: Power-Frequency Magnetic Field
EN61000-4-11: Voltage Dips and Voltage Interruptions
Safety IEC 60950-1 (ed 2); am1 am2 and EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013 IEC 62368-1 and EN 62368-1:2014
CAN/CSA-C22.2 No. 60950-1-03 and ANSI/UL 60950-1, Second Edition CAN/CSA-C22.2 No. 62368-1-14 and UL 62368-1
Other Reach, RoHS and WEEE Compliant
Directive 2011/65/EU restriction of the use of certain hazardous substances in electrical and electronic equipment and meets the following standard:: EN 50581:2012
ECCN - 5A991
HTSUS Number: 8471.80.1000
Perle Lifetime warranty

Serial Connector Pinout
IOLAN DB9M Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422
1 in DCD - - -
2 in RxD RxD+ - RxD+
3 out TxD TxD+ DATA+ TxD+
4 out DTR - - -
5 line GND GND GND GND
6 in DSR RxD- - RxD-
7 line RTS - - -
8 in CTS - - -
9 line - TxD- DATA- TxD-
IOLAN RJ45 Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422
1 line Power In Power In Power In Power In
2 in DCD - - -
3 out RTS TxD+ DATA+ TxD+
4 in DSR - - -
5 out TxD TxD- DATA- TxD-
6 in RxD RxD+ - RxD+
7 line GND GND GND GND
8 in CTS RxD- - RxD-
9 out DTR - - -
10 line - - - -
IOLAN DB25M Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422
1 line Sheild Sheild Sheild Sheild
2 out TxD - - -
3 in RxD - - -
4 out RTS - - -
5 in CTS - - -
6 in DSR - - -
7 line GND GND GND GND
8 in DCD - - -
9 line - - - -
12 line Power In Power In Power In Power In
13 line - - - CTS-
14 line - TxD+ DATA+ TxD+
15 line - TxD- DATA- TxD-
18 line - - - RTS+
19 line - - - RTS-
20 out DTR - - -
21 line - RxD+ - RxD+
22 line - RxD- - RxD-
25 line - - - CTS+
IOLAN DB25F Socket Direction RS232 RS485 Full Duplex RS485 Half Duplex RS422
1 line Sheild Sheild Sheild Sheild
2 in RxD - - -
3 out TxD - - -
4 in CTS - - -
5 out RTS - - -
6 out DTR - - -
7 line GND GND GND GND
8 in DCD - - -
9 line - - - -
12 line Power In Power In Power In Power In
13 line - - - RTS-
14 line - RxD+ - RxD+
15 line - RxD- - RxD-
18 line - - - CTS+
19 line - - - CTS-
20 in DSR - - -
21 line - TxD+ DATA+ TxD+
22 line - TxD- DATA- TxD-
25 line - - - RTS+

Optional Perle adapters for use with straight thru CAT5 cabling
