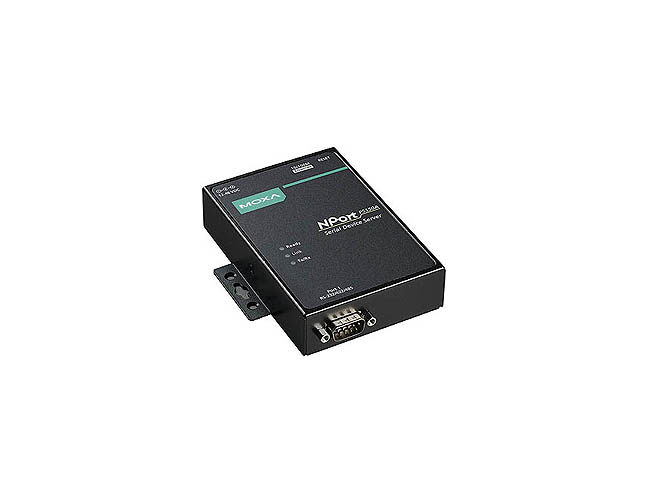

NPort P5150A - 1-port RS-232/422/485 device server, 10/100M Ethernet, DB9 male, PoE, 0-60 Degree C, 1KV serial surge
by MOXA
|
|
|
|
- IEEE 802.3af-compliant PoE power device equipment
- Speedy 3-step web-based configuration
- Surge protection for serial, Ethernet, and power
- COM port grouping and UDP multicast applications
- Screw-type power connectors for secure installation
- Real COM/TTY drivers for Windows and Linux
- Standard TCP/IP interface and versatile TCP and UDP operation modes
|
|
|
The NPort P5150A device servers are designed to make serial devices network-ready in an instant. It is a power device and is IEEE 802.3af compliant, so it can be powered by a PoE PSE device without an additional power supply. Use the NPort® P5150A device servers to give your PC software direct access to serial devices from anywhere on the network. The NPort® P5150A device servers are ultra-lean, ruggedized, and user-friendly, making simple and reliable serial-to-Ethernet solutions possible.
| • Ethernet Interface |
| Number of Ports |
1 |
| Speed |
10/100 Mbps, auto MDI/MDIX |
| Connector |
8-pin RJ45 |
| Magnetic Isolation Protection |
1.5 kV built-in |
| • Serial Interface |
| Number of Ports |
1 |
| Serial Standards |
RS-232/422/485 |
| Connector |
DB9 male |
| Serial Line Protection |
15 kV ESD protection for all signals, Level 2 Surge, EN61000-4-5 |
| RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
| Pull High/Low Resistor for RS-485 |
1 kΩ, 150 kΩ |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate |
50 bps to 921.6 kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Software |
| Network Protocols |
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2 |
| Configuration Options |
Web Console (with new Quick Setup), Serial Console, Telnet Console, Windows Utility |
| Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers |
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
| • Physical Characteristics |
| Housing |
Metal |
| Weight |
300 g |
| Dimensions |
Without ears: 77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
With ears: 100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: 0 to 60°C (32 to 140°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 75°C (-40 to 167°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Altitude |
Up to 2000 m |
| Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC (supplied by power adapter) or 48 VDC (supplied by PoE) |
| Power Consumption |
125 mA @ 12 V, 40 mA @ 48 VDC (supplied by power adapter)
180 mA @ 48 V (supplied by PoE) |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1 |
| EMC |
CE, FCC |
| EMI |
EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS |
EN 55024 |
| Power Line Protection |
EN 61000-4-4(EFT) Level 2,
EN 61000-4-5(Surge) Level 3 |
| • Reliability |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) |
2,231,530 hrs |
|
|
|
|
