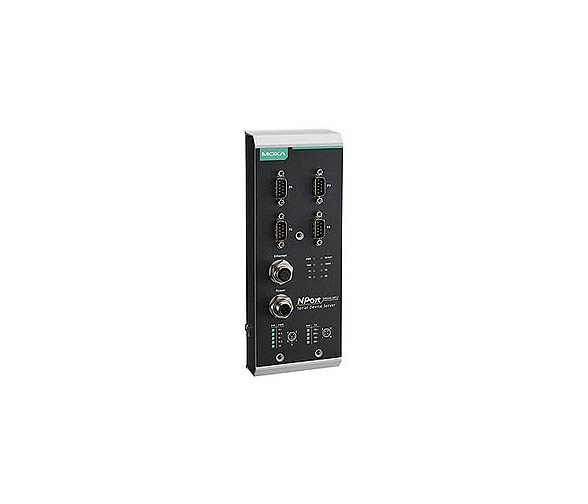

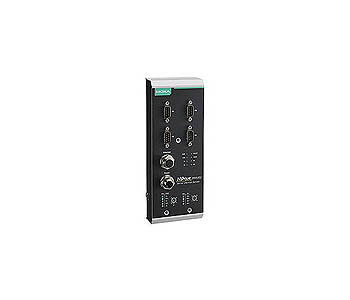

NPort 5450AI-M12-CT-T - 4-port 3 in 1 Device Server w/ M12 Connector (Ethernet, power input), -40 to 70  Degree C, Conformal Coa by MOXA

NPort 5450AI-M12-CT-T - 4-port 3 in 1 Device Server w/ M12 Connector (Ethernet, power input), -40 to 70 Degree C, Conformal Coa
by MOXA

Write a review Write a review
  • Speedy 3-step web-based configuration
  •  COM port grouping and UDP multicast applications
  •  Real COM/TTY drivers for Windows and Linux
  •  Standard TCP/IP interface and versatile TCP and UDP operation modes
  •  Complies with EN 50121-4
  •  Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard.
  •  M12 connector and IP40 metal housing
  •  2 kV isolation for serial signals



Mfg SKU # : NPort 5450AI-M12-CT-T
Our Price : $1,530.75
Stock :Call for Availability
Quantity :
The NPort 5450AI-M12-CT-T serial device servers are designed to make serial devices network-ready in an instant, and provide direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.
Ethernet Interface
  • 10/100BaseT(X) Ports (M12 D-coded 4-pin female connector)

    • 1
Ethernet Software Features
  • Configuration Options

    • Web Console (HTTP/HTTPS), Windows Utility, Device Search Utility (DSU), MCC Tool, Telnet Console
  • Management

    • ARP, BOOTP, DHCP Client, DNS, HTTP, HTTPS, ICMP, IPv4, LLDP, SMTP, SNMPv1/v2c, TCP/IP, Telnet, UDP
  • Filter

    • IGMP v1/v2
  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
  • Android API

    • Android 3.1.x and later
Serial Interface
  • Connector

    • DB9 male
  • No. of Ports

    • 4
  • Serial Standards

    • RS-232, RS-422, RS-485
  • Baudrate

    • Supports standard baudrates (unit=bps): 50, 75, 110, 134, 150, 300, 600, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200, 230.4k, 460.8k, 921.6k
  • Data Bits

    • 5, 6, 7, 8
  • Stop Bits

    • 1, 1.5, 2
  • Parity

    • None, Even, Odd, Space, Mark
  • Flow Control

    • RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
  • RS-485 Data Direction Control

    • ADDC® (automatic data direction control)
Serial Signals
  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND
  • RS-485-2w

    • Data+, Data-, GND
Power Parameters
  • Input Current

    • 440 mA @ 12 VDC
  • Input Voltage

    • 12 to 48 VDC
  • Note

    • Compliant with EN 50155 on 24/48 VDC
  • Power Connector

    • M12 A-coded 5-pin male connector
Reliability
  • Automatic Reboot Trigger

    • Built-in WDT
  • Alert Tools

    • Built-in buzzer and RTC (real-time clock)
Physical Characteristics
  • Dimensions

    • 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)
  • Weight

    • 686 g (1.51 lb)
Environmental Limits
  • Operating Temperature

    • -25 to 55°C (-13 to 131°F)
  • Storage Temperature (package included)

    • -40 to 85°C (-40 to 185°F)
  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications
  • EMC

    • EN 55032/24
  • EMI

    • CISPR 32, FCC Part 15B Class A
  • EMS

    • IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
      IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
      IEC 61000-4-5 Surge: Power: 0.5 kV; Signal: 2 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m
      IEC 61000-4-8 PFMF
  • Railway

    • EN 50121-4
  • Safety

    • UL 60950-1
  • Vibration

    • IEC 60068-2-6
Declaration
  • Green Product

    • RoHS, CRoHS, WEEE
MTBF
  • Time

    • 467,777 hrs
  • Standards

    • Telcordia (Bellcore) Standard TR/SR
