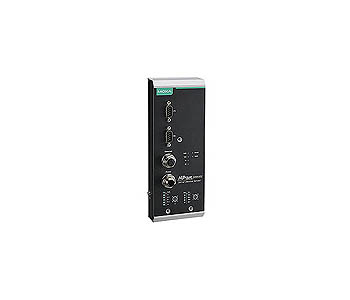

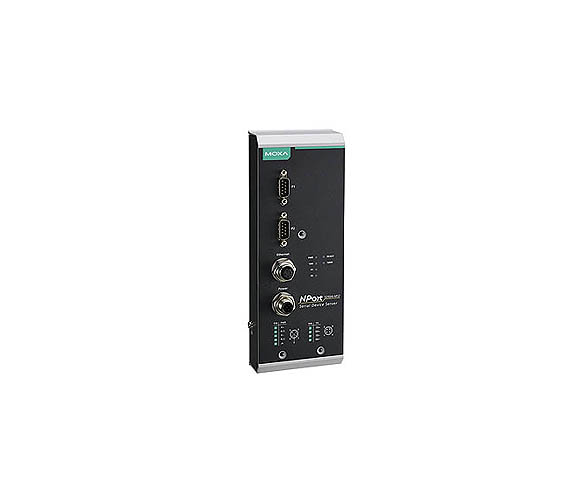

NPort 5250AI-M12-CT - 2-port 3 in 1 Device Server w/ M12 Connector (Ethernet, power input), -25 to 55 Degree C, Conformal Coati
by MOXA
|
|
|
|
- Speedy 3-step web-based configuration
- COM port grouping and UDP multicast applications
- Real COM/TTY drivers for Windows and Linux
- Standard TCP/IP interface and versatile TCP and UDP operation modes
- Complies with EN 50121-4
- Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard.
- M12 connector and IP40 metal housing
- 2 kV isolation for serial signals
|
|
|
The NPort 5250AI-M12-CT serial device servers are designed to make serial devices network-ready in an instant, and provide direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.
| • Ethernet Interface |
| Number of Ports |
1 |
| Speed |
10/100 Mbps, auto MDI/MDIX |
| Connector |
M12 |
| • Serial Interface |
| Number of Ports |
1, 2, 4 |
| Serial Standards |
RS-232/422/485 |
| Connector |
DB9 male |
| Serial Line Protection |
15 kV ESD protection for all signals |
| RS-485 Data Direction Control |
ADDC® (automatic data direction control) |
| • Serial Communication Parameters |
| Data Bits |
5, 6, 7, 8 |
| Stop Bits |
1, 1.5, 2 |
| Parity |
None, Even, Odd, Space, Mark |
| Flow Control |
RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF |
| Baudrate |
50 bps to 921.6 kbps |
| • Serial Signals |
| RS-232 |
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w |
Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w |
Data+, Data-, GND |
| • Software |
| Network Protocols |
ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP |
| Configuration Options |
Web Console (with new Quick Setup), Telnet Console, Windows Utility |
| Windows Real COM Drivers |
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Fixed TTY Drivers |
SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X |
| Linux Real TTY Drivers |
Linux 2.4.x, 2.6.x, 3.x |
| • Physical Characteristics |
| Housing |
Metal, IP40 protection |
| Weight |
686 g |
| Dimensions |
80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in) |
| • Environmental Limits |
| Operating Temperature |
Standard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F) |
| Storage Temperature |
-40 to 85°C (-40 to 185°F) |
| Ambient Relative Humidity |
5 to 95% (non-condensing) |
| Altitude |
Up to 2000 m |
| Note |
Please contact Moxa if you require products guaranteed to function properly at higher altitudes. |
| • Power Requirements |
| Input Voltage |
12 to 48 VDC |
| Note |
Compliant with EN 50155 on 24/48 VDC |
| Power Consumption |
NPort 5150AI-M12: 310mA @12V
NPort 5150AI-M12-CT: 310mA @12V
NPort 5150AI-M12-T: 310mA @12V
NPort 5250AI-M12: 360mA @12V
NPort 5250AI-M12-CT: 360mA @12V
NPort 5250AI-M12-T: 360mA @12V
NPort 5450AI-M12: 440mA @12V
NPort 5450AI-M12-CT: 44 |
| Connector |
M12 |
| • Standards and Certifications |
| Safety |
UL 60950-1, EN 60950-1 |
| EMC |
CE, FCC |
| EMI |
EN 55022 Class A, FCC Part 15 Subpart B Class A |
| EMS |
EN 55024 |
| Rail Traffic |
EN 50155*, EN 50121-4 |
| Note |
*Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details. |
| Vibration |
IEC 60068-2-6 |
| • Reliability |
| Alert Tools |
Built-in buzzer and RTC (real-time clock) |
| Automatic Reboot Trigger |
Built-in WDT (watchdog timer) |
| MTBF (mean time between failures) |
NPort 5150AI-M12: 789,341 hrs
NPort 5250AI-M12: 639,622 hrs
NPort 5450AI-M12: 467,777 hrs |
|
|
|
|
