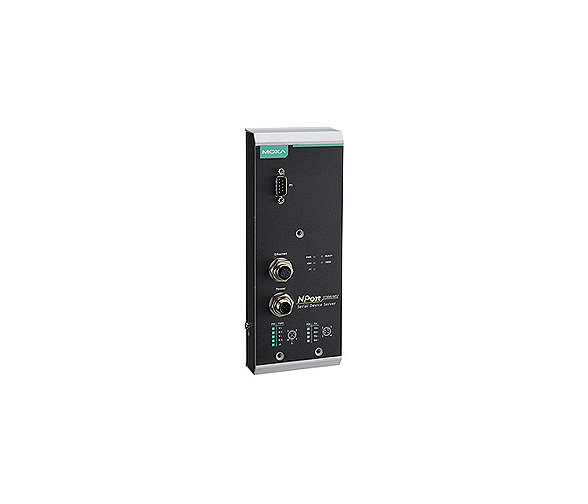

NPort 5150AI-M12-CT-T - 1-port 3 in 1 Device Server w/ M12 Connector (Ethernet, power input), -40 to 70  Degree C ,Conformal Coa by MOXA

NPort 5150AI-M12-CT-T - 1-port 3 in 1 Device Server w/ M12 Connector (Ethernet, power input), -40 to 70 Degree C ,Conformal Coa
by MOXA

Write a review Write a review
  • Speedy 3-step web-based configuration
  •  COM port grouping and UDP multicast applications
  •  Real COM/TTY drivers for Windows and Linux
  •  Standard TCP/IP interface and versatile TCP and UDP operation modes
  •  Complies with EN 50121-4
  •  Complies with all EN 50155 mandatory test items This product is suitable for rolling stock railway applications, as defined by the EN 50155 standard.
  •  M12 connector and IP40 metal housing
  •  2 kV isolation for serial signals



Mfg SKU # : NPort 5150AI-M12-CT-T
Our Price : $996.50
Stock :Call for Availability
Quantity :
The NPort 5150AI-M12-CT-T serial device servers are designed to make serial devices network-ready in an instant, and provide direct access to serial devices from anywhere on the network. Moreover, the NPort 5000AI-M12 is compliant with EN 50121-4 and all mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, making them suitable for rolling stock and wayside applications where high levels of vibration exist in the operating environment.
 Ethernet Interface
Number of Ports 1
Speed 10/100 Mbps, auto MDI/MDIX
Connector M12
 Serial Interface
Number of Ports 1, 2, 4
Serial Standards RS-232/422/485
Connector DB9 male
Serial Line Protection 15 kV ESD protection for all signals
RS-485 Data Direction Control ADDC® (automatic data direction control)
 Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF
Baudrate 50 bps to 921.6 kbps
 Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
 Software
Network Protocols ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, IGMP V1/2, LLDP
Configuration Options Web Console (with new Quick Setup), Telnet Console, Windows Utility
Windows Real COM Drivers Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers Linux 2.4.x, 2.6.x, 3.x
 Physical Characteristics
Housing Metal, IP40 protection
Weight 686 g
Dimensions 80 x 216.6 x 52.9 mm (3.15 x 8.53 x 2.08 in)
 Environmental Limits
Operating Temperature Standard Models: -25 to 55°C (-13 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature -40 to 85°C (-40 to 185°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Altitude Up to 2000 m
Note Please contact Moxa if you require products guaranteed to function properly at higher altitudes.
 Power Requirements
Input Voltage 12 to 48 VDC
Note Compliant with EN 50155 on 24/48 VDC
Power Consumption NPort 5150AI-M12: 310mA @12V
NPort 5150AI-M12-CT: 310mA @12V
NPort 5150AI-M12-T: 310mA @12V
NPort 5250AI-M12: 360mA @12V
NPort 5250AI-M12-CT: 360mA @12V
NPort 5250AI-M12-T: 360mA @12V
NPort 5450AI-M12: 440mA @12V
NPort 5450AI-M12-CT: 44
Connector M12
 Standards and Certifications
Safety UL 60950-1, EN 60950-1
EMC CE, FCC
EMI EN 55022 Class A, FCC Part 15 Subpart B Class A
EMS EN 55024
Rail Traffic EN 50155*, EN 50121-4
Note *Complies with a portion of EN 50155 specifications. Please contact Moxa or a Moxa distributor for details.
Vibration IEC 60068-2-6
 Reliability
Alert Tools Built-in buzzer and RTC (real-time clock)
Automatic Reboot Trigger Built-in WDT (watchdog timer)
MTBF (mean time between failures) NPort 5150AI-M12: 789,341 hrs
NPort 5250AI-M12: 639,622 hrs
NPort 5450AI-M12: 467,777 hrs
