0 slot base, Windows CE 6.0, Programmable Controller with 1500 tags of Indusoft, 520 Mhz CPU, 1 GB RAM, and 4 GB Flash Disk, VGA by ICP DAS
|
|
|

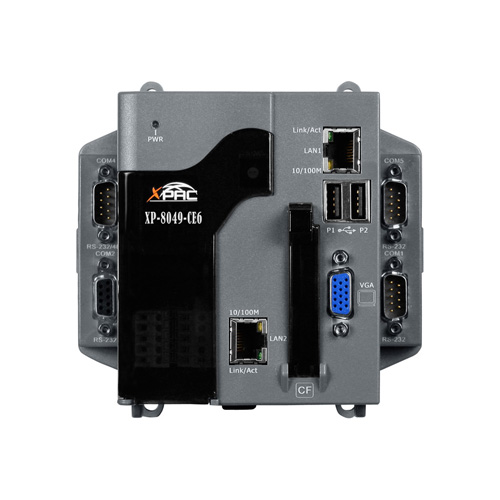

XP-8000-CE6 Programmable Automation Controller with InduSoft inside, Windows Embedded CE 6.0
Mfg SKU # : | XP-8049-CE6-EN1500R |
|
|
|
Features
XP-8x49-CE6 is the new generation Windows CE 6.0 based InduSoft PAC (Programmable Automation Controller) of ICP DAS. InduSoft is the most powerful, integrated collection of e-automation development tool that includes all the building blocks needed to develop HMI (Human Machine Interface) and SCADA (Supervisory Control and Data Acquisition system.
XP-8000-CE6 series equips a AMD LX 800 CPU (500MHz), variant connectivity (VGA, USB, Ethernet, RS-232/RS-485), and 3/7 slots for high performance parallel I/O modules (high profile I-8K series) and serial-type I/O modules (high profile I-87K I/O modules). Its operating system, Windows Embedded CE 6.0 is an operating system with resource saving and real-time capability as their main features. To develop XP-8000-CE6, the time spent for development is not much especially with our SDK and pluggable IO modules.
Software Features
InduSoft Web Studio General Features |
IWS applications run on microcomputers connected in real-time to machines or processors through XP-8000-CE6 programmable controllers, remote I/O devices, and other data acquisition equipment. These applications consist of animated operator-interface screens, rollable I/O devices, an application tags database, and optional modules such as alarm monitors, trend charts, recipes, schedulers, and a security system. |
|
|
InduSoft Integrated with XP-8000-CE6 |
Easy steps to accomplish your system. |
Communication drivers are provided by ICP DAS. |
Supports more than 200 Communication drivers such as Siemens, Omron and so forth. |
InduSoft supports Modbus / OPC / DDE / TCP/IP / SNMP Client and Server. |
Monitor and control system from both sites (WinPAC) and control room (PC) |
|
|
Access Database Easily |
Supports third-party SQL relational databases such as SQL Server, MS Access, Excel, Oracle ...etc. |
Database connectivety from any platform supported by IWS or CEView, through the unique Studio Database Gateway. |
Supports Secondary Database in the modes "Redundancy" or "Store and Forward" to increase the reliability of the system and avoid loss of data. |
|
|
SNMP Protocol Supported |
I/O Status of WinPAC can be gathered via Internet by polling or inform actively(trap) mode to remote SNMP manager station. |
WinPAC controller can be treated as a SNMP gateway to transfer the information including I/O and user-defined data to SNMP manager station. |
Integrating I/O and Network information in SNMP manager station. |
|
|
Web Thin Clients |
Use a regular WEB Browser (Internet Explorer) to host the application. |
Requests online and history data from the Server where InduSoft Web Studio is running, becoming a CLIENT for the data. |
Provide Multi-level security for applications, including the Internet and Intranet. |
|
|
Useful Package Tool is Provided |
ICP DAS has released a package tool for InduSoft. The package tool is integrated with several ActiveX objects and communication tools, including "GSM_ActiveX", "SHM_ActiveX", "COM_ActiveX" and "COM Port Communication Tool"...etc. |
|
By using ActiveX objects provided by ICP DAS in InduSoft, user can easily develop multi-function application. |
Reduce the number of used drivers. |
To integrate with GSM/GPRS external modem easily. |
|
|
Hardware Features
- AMD LX800 CPU (32-bit and 500MHz)
- 1 GB RAM
- 4GB Built-In Flash Disk
- Built-in VGA Port
- 64-bit Hardware Serial Number
- Dual Watchdog Timer
- Dual Battery-Backup SRAM (512KB)
- Dual Ethernet Port
- Redundant Power Input
- Ventilated Housing Design Allows Operation Between -25℃ ~ +75℃
Models |
XP-8049-CE6 |
XP-8349-CE6 |
XP-8749-CE6 |
System Software |
OS |
Microsoft Windows Embedded CE 6.0 |
Preloaded Software |
InduSoft Web Studio v6.1 Service Pack 6 (NTView Pro: 300 Tags, 3 Drivers ,and 4 Web Thin Clients) |
CPU Module |
CPU |
AMD LX800 processor (500MHz) |
System Memory |
1 GB RAM |
Dual Battery Backup SRAM |
512 KB (for 5 years data retain) |
Flash |
4 GB as IDE Master |
EEPROM |
16 KB |
Data Retention: 40 years; 1,000,000 erase/write cycles |
CF Card |
8 GB (support up to 32 GB) |
64-bit Hardware Serial Number |
Yes |
Dual Watchdog Timer |
Yes |
Rotary Switch |
Yes (0 ~ 9) |
DIP Switch |
- |
Yes (8 bits) |
VGA & Communication Ports |
VGA |
Yes (resolution: 640 x 480, 800 x 600, 1024 x 768,1152 x 864 and 1280 x 1024) |
Ethernet Port |
RJ-45 x 2, 10/100 Base-TX Ethernet Controller
(Auto-negotiating, auto MDI/MDI-X, LED indicator) |
USB 2.0 |
2 |
COM 1 |
RS-232 (RxD, TxD and GND); non-isolated |
Internal communication with I-87K modules in slots |
COM 2 |
RS-232 (RXD, TXD and GND); Non-isolation |
COM 3 |
RS-485 |
D2+, D2-; self-tuner ASIC inside |
Isolation |
3000 VDC |
COM 4 |
RS-232/RS-485 (RxD, TxD, CTS, RTS and GND for RS-232, Data+ and Data- for RS-485); non-isolated |
COM 5 |
RS-232 (RxD, TxD, CTS, RTS, DSR, DTR, CD, RI and GND); non-isolated |
I/O Expansion Slots |
Slot Number |
0 slot |
3 slots |
7 slots |
Hot Plug * Will be available |
- |
For high profile I-87K modules only |
Mechanical |
Dimensions (W x L x H) |
137 mm x 132 mm x 125 mm |
231 mm x 132 mm x 125 mm |
355 mm x 132 mm x 125 mm |
Installation |
DIN-Rail or Wall Mounting |
Environmental |
Operating Temperature |
-25 °C ~ +75 °C |
Storage Temperature |
-30 °C ~ +85 °C |
Ambient Relative Humidity |
5% ~ 90% RH, non-condensing |
Power |
Input Range |
+10 ~ +30 VDC |
Isolation |
1 kV |
Redundant Power Input |
Yes, with one power relay (1 A @ 24 VDC) for alarm |
Capacity |
1.8A, 5V supply to CPU and backplane, total 15 W |
1.8A, 5V supply to CPU and backplane, 5.2A, 5V supply to I/O expansion slots, total 35 W |
2.0A, 5V supply to CPU and backplane, 5.0A, 5V supply to I/O expansion slots, total 35 W |
Consumption |
14.4 W (0.6 A @ 24 VDC) |
14.4 W (0.6 A @ 24 VDC) |
16.8 W (0.7 A @ 24 VDC) |
|
|
