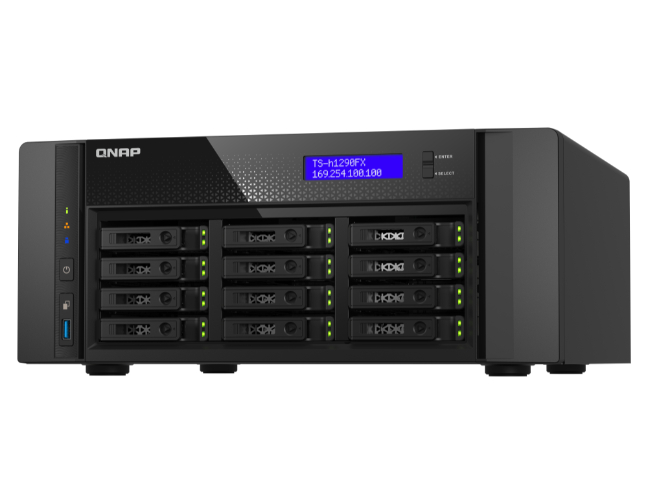

TS-h1290FX-7302P-128G-US - 12-Bay all-flash desktop NAS, AMD EPYC 7302P (up to 3.2GHz), 12 x 2.5" U.2 NVMe/SATA SSD bays by QNAP
|
|
|
TS-h1290FX-7302P-128G-US_SUMMARY.html
- 12-bay U.2 NVMe / SATA all-flash NAS
- AMD EPYC™ 7002 series processor
- ZFS storage for 25GbE collaboration
|
|
|
TS-h1290FX-7302P-128G-US_DESCRIPTION.html
Supporting U.2 NVMe PCIe Gen 4 / SATA SSD storage, the TS-h1290FX-7302P-128G-US is a cost-efficient and powerful all-flash NAS. With a sleek design and near-silent cooling, the TS-h1290FX seamlessly integrates into cozy studio/office surroundings. Equipped with an AMD EPYC™ 16 core 7302P/8 core 7232P processor and built-in 25GbE connectivity, the TS-h1290FX can tackle the heaviest of workloads and enables smooth file transfer, display, and real-time editing of 4K/8K media. The TS-h1290FX also features a ZFS-based operating system to ensure data integrity while supporting inline data deduplication and compression for optimal storage utilization. Price-competitive, high-performance, and easily scalable—the TS-h1290FX is here to streamline your backup, collaboration, and video editing/storage workflows.
TS-h1290FX-7302P-128G-US.html
|
CPU |
AMD EPYC™ 7302P 16-core/32-thread processor, up to 3.3 GHz |
CPU Architecture |
64-bit x86 |
Encryption Engine |
(AES-NI) |
System Memory |
128 GB RDIMM DDR4 ECC (8 x 16 GB) |
Maximum Memory |
1 TB (8 x 128 GB) |
Memory Slot |
8 x RDIMM DDR4 |
Flash Memory |
5GB (Dual boot OS protection) |
Drive Bay |
12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
|
Drive Compatibility |
2.5-inch bays: 2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen4 x4
solid state drives |
Hot-swappable |
|
SSD Cache Acceleration Support |
|
GPU pass-through |
|
SR-IOV |
|
2.5 Gigabit Ethernet Port (2.5G/1G/100M) |
2 (2.5G/1G/100M/10M) |
25 Gigabit Ethernet Port |
2 x 25GbE SFP28 SmartNIC port |
Wake on LAN (WOL) |
Only the 2.5GbE port
|
Jumbo Frame |
|
PCIe Slot |
4 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x16 Slot 3: PCIe Gen 4 x8
Slot 4: PCIe Gen 4 x16 Card dimensions for PCIe slot 1 ~ Slot 2: 185 x 111.15 x
18.76 mm / 7.28 x 4.38 x 0.74 inches. Card dimensions for PCIe slot 3 ~ Slot 4: 280 x 111.15 x
18.76 mm / 11.02 x 4.38 x 0.74 inches. Wider cards can be installed if the next PCIe slot will
not be used.
|
USB 3.2 Gen 1 port |
3 |
Form Factor |
Tower |
LED Indicators |
Power/Status, LAN, USB, SSD1-12 |
LCD Display/ Button |
|
Buttons |
Power, Reset, USB Auto Copy |
Dimensions (HxWxD) |
5.91 x 14.49 x 14.25 inch Dimensions do not include foot pad (foot
pad may be up to 30mm / 1.18 inches high depending on model)
|
Weight (Net) |
22.93 lbs |
Weight (Gross) |
24.91 lbs |
Operating Temperature |
0 - 40 °C (32°F - 104°F) |
Storage Temperature |
-20 - 70°C (-4°F - 158°F) |
Relative Humidity |
5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
Power Supply Unit |
750W, 100-240V |
Power Consumption: Operating Mode, Typical |
134.41 W |
Fan |
2 x 92mm, 12VDC |
System Warning |
Buzzer |
Kensington Security Slot |
|
Max. Number of Concurrent Connections (CIFS) - with Max. Memory |
10,000 |
|
|
|
