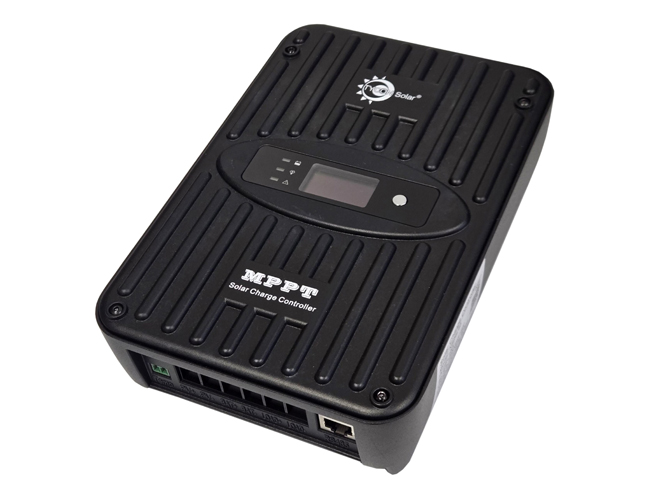

Tycon Systems TS-SC24-60N-MPPT - 12/24V Auto 60A MPPT Smart Temp Comp 150V Solar Charge Ctrl w/ Status Display and Load Ctrl, 60 by TYCON SYSTEMS

Tycon Systems TS-SC24-60N-MPPT - 12/24V Auto 60A MPPT Smart Temp Comp 150V Solar Charge Ctrl w/ Status Display and Load Ctrl, 60
by TYCON SYSTEMS

Write a review Write a review

• Included Bluetooth Interface and Mobile App
• OLED Display for better visibility
• 99.5% MPPT Efficiency
• 60A Battery Charge, 30A Load Control
• Fanless Design

Mfg SKU # : TS-SC24-60N-MPPT
List Price : $279.95
Our Price : $274.35
Stock : 362
Quantity :

The TS-SC24-60N-MPPT, a 60A MPPT Solar Controller, optimizes your solar power system’s performance. This advanced controller ensures your solar panels operate at their maximum power point, boosting your energy production efficiency. Its robust design and high-quality components guarantee reliable and long-lasting performance.

Firstly, the controller features an intelligent tracking algorithm that continuously monitors and adjusts your solar panels’ operating point. This algorithm maximizes energy harvest from your solar array, even under varying weather conditions. Additionally, the TS-SC24-60N-MPPT includes multiple protection features, such as overcharge, over-discharge, and short-circuit protection, safeguarding your system and extending your batteries’ lifespan.

Moreover, the TS-SC24-60N-MPPT is user-friendly and easy to install. It comes with a clear LCD display that provides real-time information on system performance, including voltage, current, and power output. The intuitive interface allows you to easily configure settings and monitor your solar power system’s status.

Furthermore, this solar controller is compatible with various types of batteries, including lead-acid, lithium-ion, and gel batteries. This versatility makes it an ideal choice for a wide range of solar power applications, from residential to commercial installations.

  TS-SC24-60N-MPPT
Rated Battery Voltage 12/24 VDC (Auto-Detect)
Battery Types Supported Lead Acid: AGM, GEL, Flooded                                Other: Lithium, Custom
Solar (PV) Input Voltage 150VDC Max
Solar/Battery Charge Current 60A Max
Max Solar Panel Size 12V Battery = 840W                                                       24V Battery = 1680W
Rated Load Current 30A Max
Battery Charge/ Float Voltage AGM = 14.4V / 13.8V, GEL = 14.2V / 13.8V, Flooded = 14.6V / 13.8V
Note: multiply x2 for 24V Batteries
Temperature Compensation -3.0mV/℃/2V
Lithium Activation Standard
MPPT Efficiency >99.5%
Communication Port RS485
Dry Contact Load On/Off Indicator 5VDC~12VDC
Self-Consumption <1.8W
Max Wire Size 4AWG
Grounding Negative Ground
Display Accuracy Voltage +/-5%, Current +/-.5A, Temperature +/-5%
Environmental Protection IP42
Certifications CE, FCC, RoHS
Operating Temp -30°C to 60°C (-22°F to 140°F)
Dimensions 245x170x69mm ( 9.6x6.7x2.7”)
Weight 2.4Kg (5.3lb)
Warranty  3 Years
