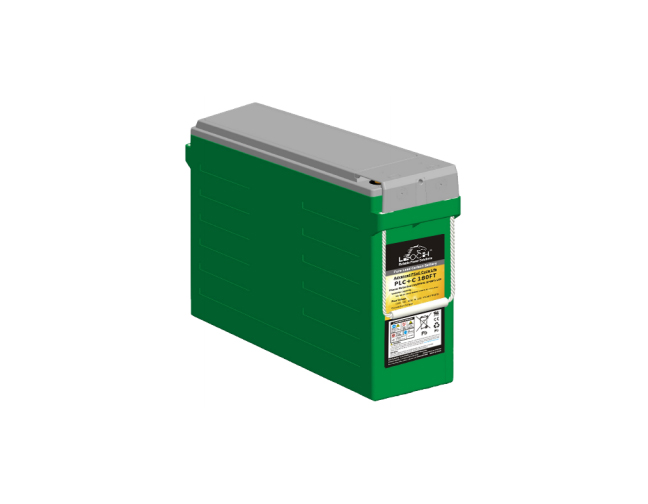

Tycon Systems TPBAT12-180 - 12V 180Ah Pure Lead Carbon SLA Battery with 6mm/0.25" Stud. L22 x W5 x H12.6
by TYCON SYSTEMS
|
|
|
|
- Sealed and Maintenance Free Pure Lead Carbon
- Safety Valve for Ultimate Safety; Prevents Overpressure
- Exceptional Deep Discharge Recovery Performance
- Low Self Discharge Characteristics
- Highly Resistant to Vibration and Shock
Applications
• Remote Equipment Power
• Surveillance Cameras
• Wireless Base Stations
• Medical Equipment
• Remote Sensors
• Backup Power Systems
|
|
|
The TPBAT12-180 high rate valve regulated pure lead carbon sealed lead acid (VRLA) AGM battery has been developed for long term operation in harsh environments. They have a very high deep discharge cycle life and impressive 8 year float life. They are designed to operate over a wide temperature range such as those experienced in outdoor equipment applications. The batteries can be installed in any position without affecting their performance or reliability.
|
TPBAT12-180 |
Voltage |
12V |
Capacity (amp hours; 20hr) |
180 |
Typical Float Life |
8 Years |
30% Discharge Cycle Life |
5000 Cycles |
Type / Technology |
Valve Regulated Pure Lead Carbon Sealed Lead Acid / Absorbent Glass Mat (AGM) |
Self-Discharge (25°C) |
<5% per month |
Charge Voltage (-3mV / °C) |
14.1 to14.4V ; Max Current 180A |
Float Voltage (-2mV / °C) |
13.5 to 13.8V |
Internal Resistance |
3.5mO |
Operating Temperature |
-40C (-40F) to +55C (131F) |
Housing |
ABS (UL94V-0) |
Certifications |
ISO 9001: 2000, ISO 14001, OHSAS 18001, IATF16949 |
Compliances |
IEC 60896 |
Dimensions (L x W x H) |
559 x 125 x 320 (22 x 4.92 x 12.6”) |
Weight |
57.6kg (127lb) |
|
|
|
|
