Battery Voltage (DC) |
24V or 48V (customer configure) |
Input Voltage (AC) |
120/240VAC, 50/60Hz, 5A Max. |
Capacities (Amp Hr) |
24V 360Ah, 48V 180Ah |
Avail Storage Capacity (Watt Hr) |
8640Wh |
Max Output Power |
900W |
Suggested Maximum Load |
750W |
Maximum Instantaneous Load |
20A 500msec |
Battery Type |
Valve Regulated Sealed Lead Acid / GEL |
Battery Life |
5 years |
Battery Cable Fuse |
6 x 32mm Ceramic 30A 250V |
Controller Type |
60A MPPT Solar Controller with Status Display and 20A Load with on/off switch |
Maximum Solar Panel Size |
1600W @ 24V Battery, 3200W @ 48V Battery |
Controller Display Status |
Battery Voltage, Charging Voltage, Charging Current, Load Current, Temperature |
Overcharge Protection |
28.8V @ 24V Battery, 57.6V @ 48V Battery |
Over-discharge protection |
22V @ 24V Battery, 44V @ 48V Battery |
Over-discharge recovery voltage |
25.2V @ 24V Battery, 50.4 @ 48V Battery |
Controller Self Consumption |
<1.2W |

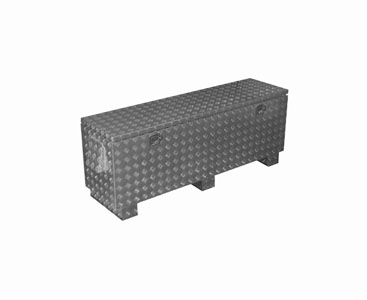

Enclosure Type |
Ground Mount, Key Lock, Aluminum Diamond Plate |
Enclosure External Size |
68” x 19” x 25” (1732 x 483 x 635mm) |
Operating Temperature |
-40°C to +65°C (-40°F to 149°F) |
System Weight (without batteries) |
78lbs (35kg) |
Battery Weight |
8 x 68lbs (31kg) |
Certifications |
Individual components used have CE Certifications. Batteries have CE and UL |
