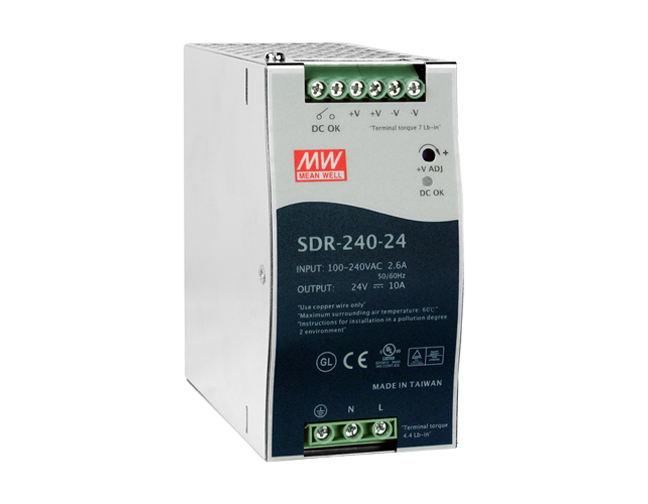

SDR-240-24 - 240 Watt Series / 24 VDC / 10.0 Amps Industrial Slim High-Efficiency Single Output DIN Rail Power Supply
by ANTAIRA
|
|
|
|
SDR-240-24_SUMMARY.html
- Built-in active PFC function, PF>0.93
- High efficiency 93% and low power dissipation
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Cooling by free air convection
- Built-in constant current limiting circuit
- Can be installed on DIN rail TS-35/7.5 or 15
- UL 508(industrial control equipment)approved
- EN61000-6-2(EN50082-2) industrial immunity level
- Built-in DC OK Relay contact
- 100% full load burn-in test
- 150% peak load capability
|
|
|
