ENC-ST-23x14x12 - Steel Outdoor Enclosure with tamper proof locking door. 23x14x12 inside, pole/wall mountable. Includes pole mo by Tycon Systems

ENC-ST-23x14x12 - Steel Outdoor Enclosure with tamper proof locking door. 23x14x12 inside, pole/wall mountable. Includes pole mo
by Tycon Systems

Write a review Write a review
  • Weatherproof Nema 4X / IP65, UV resistant , outdoor enclosures
  • Choice of Die Cast 10x 8x3” or Polycarbonate 14x10x5” or Steel 23 x1 4 x1 2 "
  • Gasket sealed
  • Weatherproof cable feedthru



Mfg SKU # : ENC-ST-23x14x12
List Price : $299.95
Our Price : $294.00
Stock : Call for Availability
Quantity :

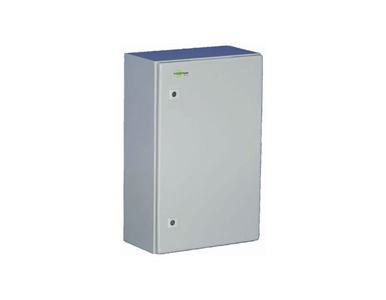

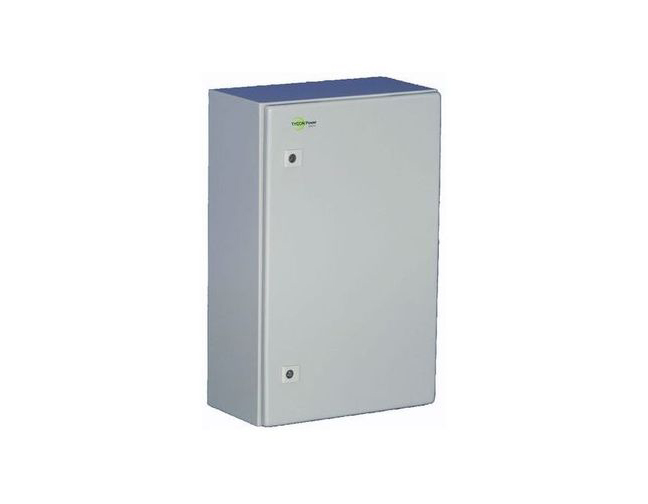

The ENC-ST-23x14x12 Powder Coat Painted Outdoor Enclosure has a locking hinged lid for security and convenient access to the generous 23" x 14" x 12" interior space.

The steel enclosure is passivated under the power coat paint to prevent corrosion and will give many years of trouble free service in the harshest environments. A bottom mounted removable plate provides cutouts for two RJ45 Cable Feedthrus and two N Connectors. The inside has a removable steel mounting plate and the door and sidewalls have accommodations for the addition of other mounting plates.

The hinged lid is gasket sealed and has two tamper proof closures for security. There is a special key provided.

It meets NEMA 4X / IP65 weatherproofing standards.

The ENC-ST can be mounted to a wall or a pole up to 4" diameter. The pole/wall mount bracket and clamps are included

Enclosure Type Powder Coated Steel
Weatherproofing Nema 4X / IP65
Enclosure Mounting Wall or pole mount with hose clamps ( optional )
Interior Mounts Removable Steel Backplate
Enclosure External Size 24 x 15 x 14" (610 x 381 x 356mm)
Enclosure Internal Size 23 x 14 x 12" (584 x 356 x 305mm)
Weight 55lb (25kg)
