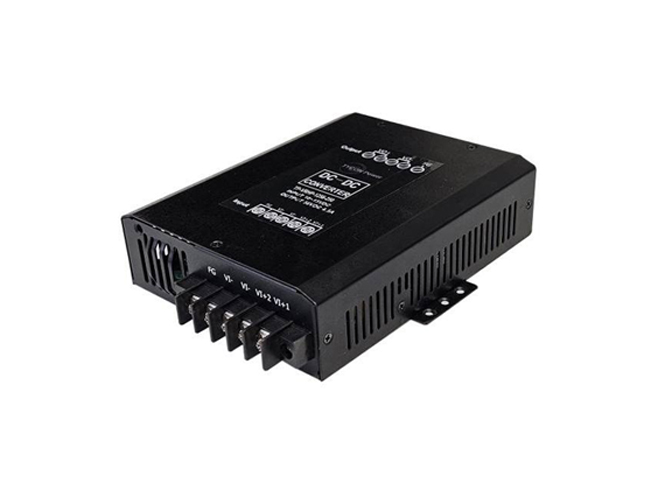

Tycon Systems TP-VRHP-1256-250 - 10-15VDC Input, 56V 4.46A 250W Regulated Output DCDC Isolated Voltage Converter, Wire Terminal
by TYCON SYSTEMS
|
|
|
|
• DC to DC converter
• Up to 250W Output
• Din Rail Adapters Included
• Automatic Battery Saving Capabilities
|
|
|
The TP-VRHP-1256-250 DC to DC converters offer high output voltage conversion in a compact metal enclosure. They have wire terminal inputs and outputs for maximum flexibility. The units come with DIN rail adapters for DIN rail mounting. They provide power output up to 250W. The TP-VRHP-1256-250 has a battery saver feature. If voltage falls below 10V the DC to DC converter will turn off to save battery. As soon as the voltage returns to normal the DC to DC converter will power on.
| |
TP-VRHP-1256-250 |
| DC Input Voltage Range |
+/- 10 to 15 VDC |
| DC Voltage Output |
56VDC @ 4.46A |
| Maximum Power |
250W |
| Input/ Output Isolation |
Isolated |
| Efficiency |
>83% |
| Load/ Line Reg |
5% / 1% |
| Ripple/ Noise |
2% / 5% |
| Isolation |
1500 VDC Min. / 100M Ohms Min |
| Output Wire Gauge |
12AWG Maximum |
| Input Wire Gauge |
12AWG Minimum |
| In/Out LED |
Green = Normal |
| Protections |
Short Circuit, Overvoltage, Overload |
| Operating Temp |
-40°F to 158°F (-40°C to +70°C) |
| Operating Humidity |
0 to 90% RH |
| Size |
5.9 x 7.4 x 1.7" (150x187x43.6mm) |
| Weight |
2.6lbs (1.2kg) |
| Warranty |
3 Years |
|
|
|
|
