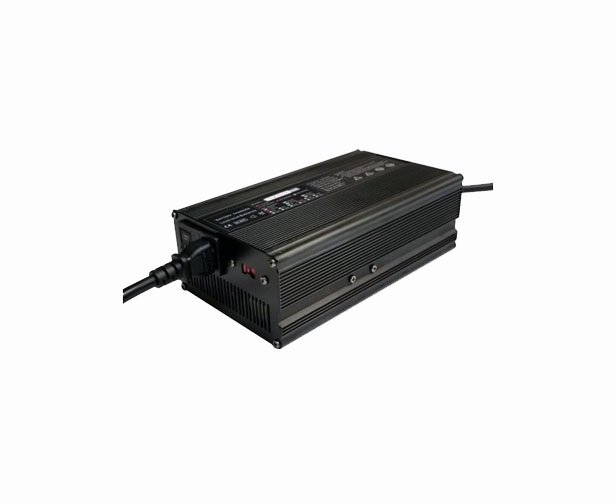

TP-BC72-600 - 72VDC 6A 600W Battery Charger, 120/240VAC in, 2 wire output by Tycon Systems
|
|
|
- 72V 600W Total Power
- Over-Voltage, Over-Current, Reverse-Current, Over-Load, Short-Circuit Protections
- Led indicator: Red=Charging, Green=Battery Full/Float Charge
- CE Certification
|
|
|
The TP-BC72-600 battery chargers provide up to 600W of total charging power. The battery charger is compatible with GEL/AGM type sealed lead acid batteries. The charger has various protections for reverse current, short-circuit, over-load, over-voltage, and over-current. There is an LED which indicates charging (Red) or battery full (Green). The unit comes with a removeable AC cord with a North American Plug. The units are can work from 90VAC to 240VAC (selectable via switch).
Total Power Available ( for Load and Battery charging) |
600W |
Nominal Battery Voltage |
72VDC |
Battery Charge Max Current |
6A |
Battery Charge Voltage |
88.2V |
Battery Float Voltage |
82.8V |
Efficiency |
>88% |
DC Output Cable |
2 Wire 14AWG ; 1.2m (48”) long cable Brown = V+, Blue = V |
AC Input Connector |
IEC C14 |
AC Power Cord |
IEC C13 to Nema 5-15P, 1.2m (48") |
AC Power Input |
120VAC / 240VAC , 50/60Hz |
Hi-Pot Test |
1500VAC / 10mA / 1min |
Insulation Resistance |
>10MOhm, 500VDC |
Operating Temperature |
-10 to +40C (14 to +104°F) |
Operating Humidity (RH) |
5% to 90% (non condensing) |
Storage Temperature |
-40 to +70°C (-40 to +158°F) |
Storage Humidity |
5% to 95% (non-condensing) |
Standards Compliance |
CE, EN60335-1:2002 and EN60335-2-29:2002 |
MTBF (Mean Time Between Failure) |
>50,000 hrs |
Dimensions (LxWxH) |
216 x 120 x 76mm (8.5 x 4.75 x 3”) |
Weight |
1.95kg (4.3lb) |
|
|
