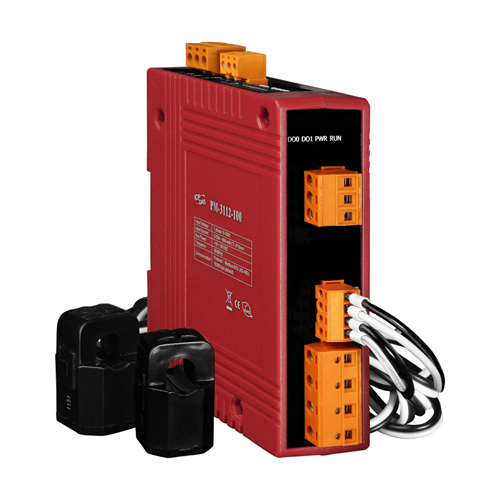

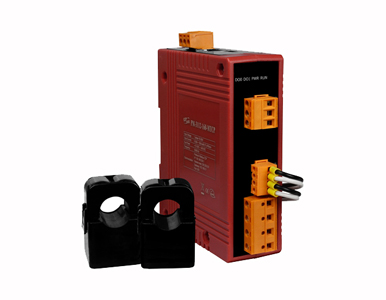

PM-3112-100-MTCP - PM-3112-100 with Modbus TCP
by ICP DAS
|
|
|
|
- True RMS Power Measurements
- Energy Analysis for 1P2W, 1P4W
- Current Measurements Up to 200 A with Different CT Ratio
- Voltage Measurements Up to 300 V
- Clip-on CT for Easy Installation
- W Accuracy Better than 1% (PF=1)
- Supports Ethernet Interface
- Supports Modbus TCP Protocol
- Supports 2 Power Relay Output (Form A)
|
|
|
PM-3112-100-MTCP is a Modbus TCP 2 loops single-phase Smart Power Meter with 2 CTs, Supports input types: Vrms, Irms, kW, kWh, kVA, kVAh, kVAR, kVARh, and PF. +10 ~ 300 VDC. Supports Operating temperature of -10°C ~ +70°C (+14°F ~ +158°F).
*Note: This model does not include CT
ICP DAS brings powerful, cost-effective, advanced Smart Power Meters PM-3000 series that gives you access to real-time electric usage for single-phase power measurement. With its high accuracy (<1%, PF=1 ), the PM-3000 series can be applied to both low voltage primary side and/or medium/high voltage secondary side and enables the users to obtain reliable and accurate energy consumption readings from the monitored equipments in real time under operation. These compact size and cost-effective power meters are equipped with revolutionary wired clip-on CT (various types, support input current up to 200 A). It operates over a wide input voltages range 10 ~ 300 VAC which allows worldwide compatibility. And with 2 channels relay outputs, it can be linked with sirens or lightings for alarm messages. It supports Modbus TCP protocol for easy integration.
| AC Power Measurement |
| Wiring |
1P2W-2CT |
| Input Voltage |
10 ~ 300 V |
| Input Current |
CT Φ10 mm (60 A); CTΦ16 mm (100 A); CTΦ24 mm (200 A) |
| Input Frequency |
50/60 Hz |
| W Accuracy |
Better than 1% (PF=1) |
| Starting Current |
>0.03A ( 60A ), >0.05A (100A ), >0.09A( 200A ) |
| Power Parameter Measurement |
True RMS voltage (Vrms), True RMS current (Irms), Active Power (kW), Active Energy (kWh), Apparent Power (kVA), Apparent Energy (kVAh), Reactive Power (kVAR), Reactive Energy (kVARh), Power Factor (PF) |
| Data Update Rate |
1 Second |
| Communication |
| Ethernet |
Protocol |
Modbus TCP |
| Alarm Output |
| Power Relay |
Form A (Normal Open) x 2; Relay Contact Voltage Range: 5 A @ 250 VAC (47 ~ 63Hz), 5 A @ 30 VDC |
| Power |
| Input Range |
+12 ~ 48 VDC |
| Power Consumption |
2 W |
| Mechanical |
| Casing |
Plastic (Flammability UL 94V-0) |
| Dimensions (W x L x H) |
127 mm x 105 mm x 33 mm |
| Module Installation |
DIN-Rail Mounting |
| CT Installation |
Clip-On |
| Environment |
| Operating Temperature |
-10 ~ +70 °C |
| Storage Temperature |
-25 ~ +80 °C |
| Ambient Relative Humidity |
10% ~ 90% RH, Non-condensing |
|
|
