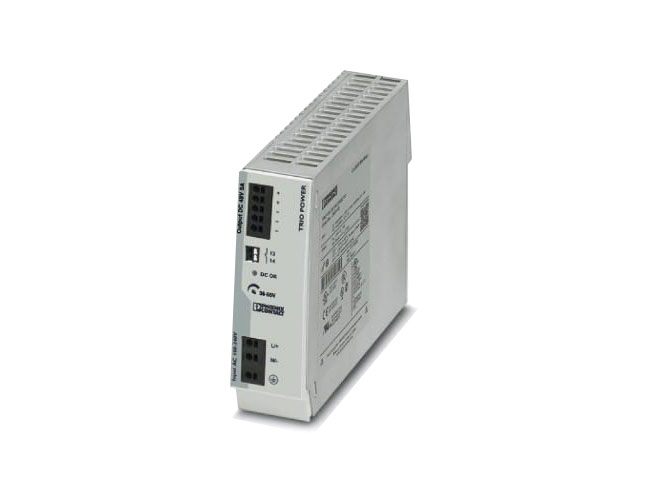

| Environmental Product Compliance |
| REACH SVHC |
Lead 7439-92-1 |
| China RoHS |
Environmentally Friendly Use Period = 25; |
| General |
| Net weight |
0.9 kg |
| Efficiency |
typ. 90.5 % (120 V AC) |
|
typ. 91 % (230 V AC) |
| Insulation voltage input/output |
3 kV AC (type test) |
|
1.5 kV AC (routine test) |
| Protection class |
I (in closed control cabinet) |
| Degree of protection |
IP20 |
| MTBF (IEC 61709, SN 29500) |
> 2000000 h (25 °C) |
|
> 1200000 h (40 °C) |
|
> 620000 h (60 °C) |
| Mounting position |
horizontal DIN rail NS 35, EN 60715 |
| Assembly instructions |
alignable: horizontally 0 mm (≤ 40 °C) 10 mm (≤ 70 °C), vertically 50 mm |
| Standards and Regulations |
| Electromagnetic compatibility |
Conformance with EMC Directive 2014/30/EU |
| Noise emission |
EN 55011 (EN 55022) |
| Noise immunity |
Immunity according to EN 61000-6-1 (residential), EN 61000-6-2 (industrial) |
| Standards/regulations |
EN 61000-4-2 |
| Contact discharge |
4 kV (Test Level 2) |
| Standards/regulations |
EN 61000-4-3 |
| Frequency range |
80 MHz ... 1 GHz |
| Test field strength |
10 V/m (Test Level 3) |
| Frequency range |
1.4 GHz ... 2 GHz |
| Test field strength |
3 V/m (Test Level 2) |
| Standards/regulations |
EN 61000-4-4 |
| Comments |
Criterion B |
| Standards/regulations |
EN 61000-6-3 |
|
EN 61000-4-6 |
| Frequency range |
0.15 MHz ... 80 MHz |
| Voltage |
10 V (Test Level 3) |
| Conducted noise emission |
EN 55016 EN 61000-6-4 (Class A) |
| Standards/regulations |
EN 61000-4-11 |
| Low Voltage Directive |
Conformance with Low Voltage Directive 2014/35/EC |
| Standard - Electrical safety |
IEC 60950-1/VDE 0805 (SELV) |
| Standard – Safety extra-low voltage |
IEC 60950-1 (SELV) and EN 60204-1 (PELV) |
| Standard - Safe isolation |
DIN VDE 0100-410 |
| Standard – Limitation of mains harmonic currents |
EN 61000-3-2 |
| UL approvals |
UL Listed UL 508 |
|
UL/C-UL Recognized UL 60950-1 |
| Shock |
18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
| Vibration (operation) |
DNV GL CG-0339 / Class B 2 Hz - 100 Hz resonance search, 90 min. in resonance, 2 Hz - 25 Hz, ±1.6 mm amplitude, 25 Hz - 100 Hz, 4g acceleration |
| Rail applications |
EN 50121-4 |
| Overvoltage category (EN 60950-1) |
II |
| Overvoltage category (EN 62477-1) |
III |
| Connection data, input |
| Connection method |
Push-in connection |
| Conductor cross section solid min. |
0.2 mm² |
| Conductor cross section solid max. |
4 mm² |
| Conductor cross section flexible min. |
0.2 mm² |
| Conductor cross section flexible max. |
2.5 mm² |
| Conductor cross section AWG min. |
24 |
| Conductor cross section AWG max. |
12 |
| Stripping length |
10 mm |
| Output data |
| Nominal output voltage |
48 V DC ±1 % |
| Setting range of the output voltage (USet) |
36 V DC ... 55 V DC (> 48 V DC, constant capacity restricted) |
| Nominal output current (IN) |
5 A |
| Dynamic Boost (IDyn.Boost) |
7.5 A (5 s) |
| Derating |
> 60 °C ... 70 °C (2.5%/K) |
| Connection in parallel |
Yes, for redundancy and increased capacity |
| Connection in series |
yes |
| Feedback resistance |
≤ 60 V DC |
| Protection against surge voltage on the output |
≤ 60 V DC |
| Control deviation |
< 1 % (change in load, static 10 % ... 90 %) |
|
< 3 % (Dynamic load change 10 % ... 90 %, 10 Hz) |
|
< 0.1 % (change in input voltage ±10 %) |
| Residual ripple |
< 20 mVPP (with nominal values) |
| Output power |
240 W |
| Peak switching voltages nominal load |
< 15 mVPP |
| Maximum power dissipation in no-load condition |
typ. 4 W (120 V AC) |
|
typ. 4.1 W (230 V AC) |
| Power loss nominal load max. |
typ. 24.5 W (120 V AC) |
|
typ. 20.1 W (230 V AC) |
| Short-circuit current |
< 7 A DC (Permanent) |
| Connection data for signaling |
| Connection method |
Push-in connection |
| Conductor cross section solid min. |
0.2 mm² |
| Conductor cross section solid max. |
1.5 mm² |
| Conductor cross section flexible min. |
0.2 mm² |
| Conductor cross section flexible max. |
1.5 mm² |
| Conductor cross section AWG min. |
24 |
| Conductor cross section AWG max. |
16 |
| Stripping length |
8 mm |
| Dimensions |
| Width |
42 mm |
| Height |
130 mm |
| Depth |
160 mm |
| Weight per piece |
1120.0 GRM |
| Input data |
| Nominal input voltage range |
100 V AC ... 240 V AC |
|
110 V DC ... 250 V DC |
| Input voltage range |
100 V AC ... 240 V AC -15 % ... +10 % |
|
110 V DC ... 250 V DC ±10 % |
| Dielectric strength maximum |
≤ 300 V AC 15 s |
| AC frequency range |
50 Hz ... 60 Hz ±10 % |
| Discharge current to PE |
< 3.5 mA |
| Current consumption |
2.9 A (100 V AC) |
|
2.3 A (120 V AC) |
|
1.2 A (230 V AC) |
|
1.2 A (240 V AC) |
| Nominal power consumption |
285.7 VA |
| Mains buffering |
typ. 15 ms (120 V AC) |
|
typ. 15 ms (230 V AC) |
| Input fuse |
6.3 A (internal (device protection)) |
| Choice of suitable circuit breakers |
6 A ... 16 A (Characteristics B, C, D, K) |
| Power factor (cos phi) |
0.91 |
| Connection data, onput |
| Connection method |
Push-in connection |
| Conductor cross section solid min. |
0.2 mm² |
| Conductor cross section solid max. |
4 mm² |
| Conductor cross section flexible min. |
0.2 mm² |
| Conductor cross section flexible max. |
2.5 mm² |
| Conductor cross section AWG min. |
24 |
| Conductor cross section AWG max. |
12 |
| Stripping length |
8 mm |
| Ambient conditions |
| Degree of protection |
IP20 |
| Ambient temperature (operation) |
-25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K) |
| Ambient temperature (start-up type tested) |
-40 °C |
| Ambient temperature (storage/transport) |
-40 °C ... 85 °C |
| Max. permissible relative humidity (operation) |
≤ 95 % (at 25 °C, non-condensing) |
| Climatic class |
3K3 (in acc. with EN 60721) |
| Degree of pollution |
2 |
| Installation height |
≤ 5000 m (> 2000 m, Derating: 10 %/1000 m) |
| Approvals |
| |
- cULus Listed
- cULus Recognized
- EAC
- UL Recognized
- cUL Recognized
- cUL Listed
- UL Listed
|
