| Interfaces |
|---|
| RJ45 |
- 4 x 10/100/1000BASE-TX PoE up to 100 meters (328 ft) + 4 x 10/100/1000BASE-TX up to 100
meters (328 ft) + 2-port 100/1000BASE SFP
- Auto-negotiation
- Auto-MDI/MDIX-crossover for use with either crossover over straight-through cable types
- Ethernet isolation 1500 V
|
| Small Form Factor Pluggable (SFP) slot(s) |
2 empty SFP slot models for 100/1000Base-X SFP modules supplied by Perle, Cisco or
other manufacturers of MSA compliant SFPs
|
| Alarm Contact |
One relay output with current 0.5A @ 48V at Normal Open or
Normal Close
|
|
| Power
|
|---|
| Dual Power Input |
46-57VDC (Terminal Block 8 pins)
|
| Power
Consumption |
9.72W (without PoE)
|
| Maximum
Current Consumption @24 vDC |
0.20A @ 48VDC (without PoE)
|
| Power Connector |
8-Pin
Removable Terminal Block
|
| Overload Current Protection |
10A fuse provides overload current protection
|
| Reverse polarity protection |
The positive and negative inputs can be reversed providing safe and simple power
connectivity.
|
| PoE Power Output |
- Up to 90W/port
- Power Budget: 270W
- 46-57VDC for IEEE 802.3af type 1, ≤15.4W PD devices.
- 52-57VDC for IEEE 802.3at/bt type 2/3, 30W, 60W PD devices.
- 54-57VDC for IEEE 802.3bt, type 4, 90W PD devices
|
|
| Switch Properties |
|---|
| Standards |
- IEEE 802.3af/at/bt Power over Ethernet
- IEEE 802.3 10BASE-T
- IEEE 802.3u 100BASE-TX/FX
- IEEE 802.3az Energy Efficient Ethernet
- IEEE 802.1p Quality of Service (QoS)
- IEEE 802.3ab 1000BASE-T
- IEEE 802.3z 1000BASE-SX/1000BASE-LX
|
| Processing Type |
- Store-and-Forward
- Auto Negotiation
- Half-duplex back-pressure and IEEE
- Auto MDI/MDIX
|
| MAC Address Table Size |
4K
MAC
|
| Packet Buffer Memory |
1.5 Mbit
|
| Jumbo Frame Size |
9216 bytes
|
| Forward/Filtering
Rate |
- 14,880pps for 10Mbps
- 148,810pps for 100Mbps
- 1,488,100pps for 1000Mbps
|
|
| Indicators |
|---|
| Power LED 1 |
This LED is
green when power is applied
|
| Power LED 2 |
This LED is green when power is applied
|
| Fault LED |
This LED is red when a fault is detected
|
| RJ45 /
SFP Ethernet LED |
These LED is solid green for
established link and bllinks green when activity is detected (per port)
|
|
|
Environmental Specifications |
|---|
| Operating Temperature Ranges |
- IDS-114HP: -10°C to 60°C (14°F to 140°F)
- IDS-114HP-XT: -40°C to 75°C (-40°F to 167°F)
|
| Storage Temperature Range |
-40°C to 85°C (-40°F to 185°F)
|
| Operating Humidity Range |
5% to 90% non-condensing
|
| Storage Humidity
Range |
5% to 95% non-condensing
|
|
Operating Altitude |
Up to 3,048 meters (10,000 feet)
|
| Chassis |
Metal with an IP30
ingress protection rating
|
| Din Rail Mountable |
DIN Rail attachment included. Mounts to standard 35 mm DIN rail in
accordance with DIN EN 60175.
|
| Maximum
Heat Output |
33.17 BTU/Hr (without PoE)
|
| MTBF |
5184093 hours
Calculation model based on MIL-HDBK-217-FN2 @ 25°C
|
|
| Product Weight and Dimensions |
|---|
| Weight |
578g / 1.27lbs
|
| Dimensions |
45 x 125 x 145
mm / 1.77 x 4.92 x 5.71 Inch (W x D x H)
|
|
| Packaging |
|---|
| Shipping Weight |
759g / 1.76lbs
|
| Shipping
Dimensions |
235 x 185 x 65 mm / 9.25 x 7.28 x 2.56 Inch
(W X D X H)
|
| Contents Shipped |

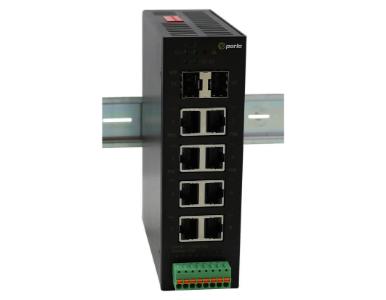

- Industrial Ethernet Switch with DIN Rail attachment
- Terminal block
- QR Code for online manuals
|
|
| Standards and Certifications |
|---|
| Safety |
UL 61010
|
| EMC Emissions |
- FCC Part 15 Class A
- VCCI Class A
- EN 61000-6-4
- ICES-003
- EN 55032
|
| EMC Immunity |
- EN 61000-6-2
- EN 61000-4-2 (ESD)
- EEN 61000-4-3 (Radiated RFI)
- EN 61000-4-4 (Burst)
- EN 61000-4-5 (Surge)
- EN 61000-4-6 (Induced RFI)
- EN 61000-4-8 (Magnetic field)
|
| Industrial |
EN 50121-4
|
| Environmental Test Compliance |
- IEC 60068-2-6 Fc (Vibration)
- IEC 60068-2-27 Ea (Shock)
|
| Environmental |
Reach, RoHS and WEEE Compliant
|
| Other
|
- ECCN: 5A991
- HTSUS Number: 8517.62.0020
|
