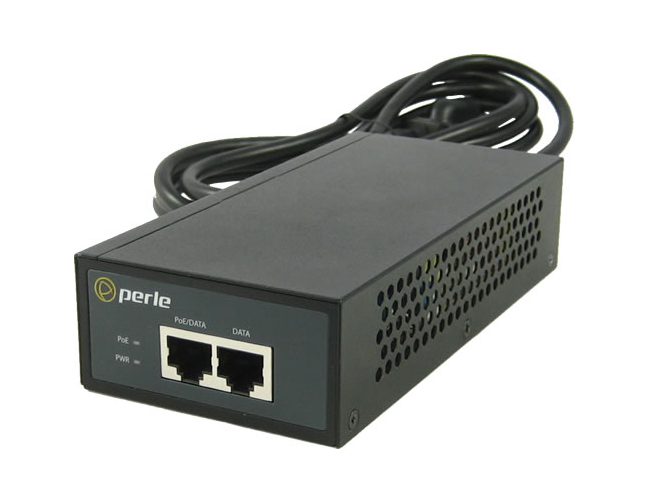

Perle 05059984 - PINJ30 PoE Power Injector. One port 10/100/1000Base-T , 30 watts, IEEE 802.3at compliant. PoE+ and PoE compatib
by PERLE
|
|
|
|
- IEEE 802.3at ( PoE+ ) compliant with 2-event classification
- IEEE 802.3af ( PoE ) backward compatible
- Output power up to 30W over 100 meters (328ft) UTP
- Supports 10/100/1000Base-T applications
- Automatically detects whether the connected device is PoE-capable to avoid sending power to a non-PoE device
- Plug & Play: No configuration required
|
|
|
The Perle
PINJ30 is a single port,
high power PoE+
mid-span injector. It acts as an intermediary device between a non-PoE
switch and a PoE device to inject fully
compliant power over the
Ethernet cable.
Generating up
to 30 Watts, the PINJ30 provides electrical power to remote PD
access points, pan-tilt
and zoom (PTZ) cameras and video-phones.
It complies with the IEEE
802.3at PoE+ standard (30W
of power) and is backward compatible with IEEE802.3af
PoE (15.4W of power). It is
designed to power existing 10/100Base-T network devices and Gigabit devices such
as IEEE
802.11ac access points and
IP cameras.;
With the PINJ30, there is no need to buy an expensive PoE switch or install
electrical wiring and outlets in hard to reach locations. Just use and open
port on an existing non-PoE switch to save
time and money by sending power and data over the same cable.
|
Specifications |
PINJ30 |
|
Data port |
1x 10/100/1000Base-T RJ45 |
|
Data and Power port |
1x 10/100/1000Base-T RJ45 for connecting to PoE PD |
|
Power Over Ethernet Output |
Pin Assignment and Polarity based on IEEE 802.3at ( ALT A )
Output 1/2 (+), 3/6 (–) |
|
AC Input |
100 to 240 VAC, 50 to 60Hz Universal Power 3 Pin AC-Inlet IEC-C14 (
IEC-C13 connector country specific power cord provided ) |
|
Back of product |
 |
|
Power Consumption |
36.6 Watts maximum ( @ 30W PoE output ) |
|
Indicators |
PWR: Solid green when AC power is on, off when AC power is not on
PoE: Solid green when PoE port is supplying power, off when not |
|
Environmental Specifications |
|
Operating Temperature Ranges |
0 to 40°C ( 32 to 104°F ) |
|
Storage Temperature Range |
-40 to 70°C ( -40 to 158°F ) |
|
Operating Humidity Range |
10 to 95% ( non-condensing ) |
|
MTBF |
698,142 hours @ 25°C * |
|
Chassis |
Rugged Metal Case with an IP20 ingress protection rating |
|
Product
Weight and Dimensions |
|
Weight |
0.39 kg ( 0.9 lbs ) |
|
Dimensions |
73 x 36 x 154 (mm) , 2.87 x 1,42 x 6.00 (in) |
|
Packaging |
|
Shipping Weight |
0.73 kg ( 1.6 lbs ) |
|
Shipping Dimensions |
22 x 17 x 7 ( cm ) 8.7 x 6.7 x 2.8 ( inch ) |
|
Standards
and Certifications |
|
Safety |
UL 60950-1
EN 60950-1:2006+A11:2009+A1:2010+A12:2011
CE Mark |
|
Emissions |
EN55011 2009 + A1: 2010 ( Group 1 Class A ) |
|
EMC and Immunity |
EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, |
|
