RGS-PR92484DGP+ - IEC 61850-3 36-port rackmount layer3 switch; 20GE + 4G Combo + 8 100M/1G SFP + 4 1G/2.5G/10G SFP
by ORing Industrial Networking
|
|
|
|
RGS-PR92484DGP+_SUMMARY.html
IEC 61850-3 and IEEE 1613 certifiedSupport Layer 3 static routing, OSPF, RIP and VRRPSupport O-Ring (recovery time < 30ms), O-Chain and MSTP (RSTP/STP compatible) for Ethernet RedundancySupport IPv6 new internet protocol versionProvided HTTPS/SSH protocol to enhance network securitySupport SMTP client and SNTP server protocolSupport application-based QoS managementSupport Device Binding security functionSupport DoS/DDoS auto preventionIGMP v2/v3 (IGMP snooping support) for filtering multicast trafficSupport SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network ManagementSupport ACL and 802.1x User Authentication for securitySupport 10K Bytes Jumbo FrameMultiple notification for warning of unexpected eventWeb-based ,Telnet and Console (CLI) managementSupport LLDP Protocol19 inches rack mountable design
|
|
|
RGS-PR92484DGP+_DESCRIPTION.html

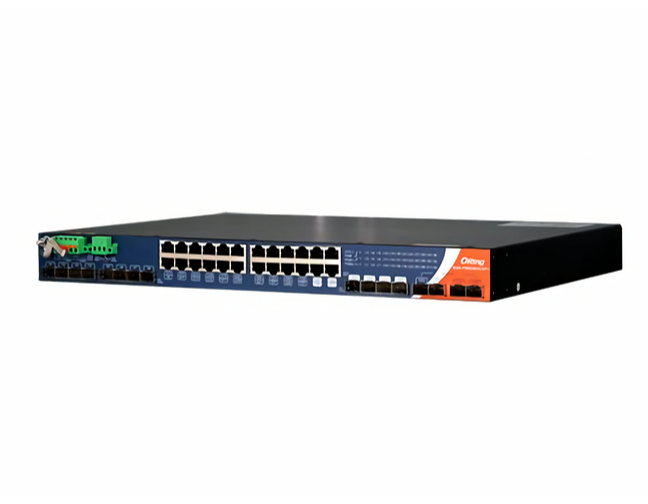

RGS-PR92484DGP+ industrial substation switch is specially designed for industry applications. Equipped with 20x 10/100/1000Base-T(X) ports, 4x gigabit combo ports, 8x 100/1000BaseX SFP ports and 4x 1000/2500/10000BaseX SFP ports, making it ideal for large-scale industrial networks. The fanless switch supports redundant ring and RSTP/STP technologies, it also come with an isolated redundant power supply to increase system reliability and availability.
RGS-PR92484DGP+.html
Physical ports
|
| 10/100Base-T(X) ports in RJ45 |
20 |
| Gigabit Combo ports with 10/100/1000Base-T(X) RJ45
and 100/1000Base-X SFP ports |
4 |
| 1000/10G Base-X with SFP/SFP+ port |
4 |
| 100/1000Base-X with SFP port |
8 |
LED Indicators
|
| System Indicator (Status) |
Green: Power indicator |
| Fault Indicator (Fault) |
Amber: Indicate unexpected event occurred |
Power
|
| Redundant Input power |
Dual inputs ,100~240VAC /DC |
| Overload current protection |
Present |
| Reverse polarity protection |
Present |
Physical Characteristic
|
| Enclosure |
IP-30 |
| Dimensions (mm) |
442mm x 43.8mm x 335mm |
| Weight (g) |
4,000 g |
Technology
|
| Ethernet Standards |
IEEE 802.3 for 10Base-T
IEEE 802.3u for
100Base-TX and 100Base-FX
IEEE 802.3ab for 1000Base-T
IEEE 802.z for 1000Base-X
IEEE
802.3ae for 10Gigabit Ethernet
IEEE 802.3x for Flow control
IEEE 802.3ad for LACP
(Link
Aggregation Control Protocol )
IEEE 802.1p for COS (Class of Service)
IEEE 802.1Q
for
VLAN Tagging
IEEE 802.1w for RSTP (Rapid Spanning Tree Protocol)\\ IEEE 802.1s for MSTP
(Multiple Spanning Tree Protocol)
IEEE 802.1x for Authentication
IEEE 802.1AB for
LLDP
(Link Layer Discovery Protocol)
|
| MAC Table |
32K |
| Packet buffer Size |
32Mbits |
| Priority Queues |
8 |
| Processing |
Store-and-Forward |
| Switch Properties |
Switching latency: 7 us
Switching
bandwidth:
128Gbps
Max. Number of Available VLANs: 4095
VLAN ID Range : 1 to 4094
IGMP
multicast groups: 128 for each VLAN
Port rate limiting: User Define
|
| Jumbo frame |
Up to 10K Bytes |
| Security Features |
Device Binding security feature
Enable/disable ports, MAC based port security
Port based network access control
(802.1x)
MAC-based authentication
MAC address limit
VLAN (802.1Q ) to segregate and secure
network traffic
Radius centralized password management
SNMPv3 encrypted
authentication
and access security
Https / SSH enhance network security
Web and CLI authentication
and
authorization
IP source guard
|
| Software Features |
Routing protocols ,OSPFv2 RIP and static
routing
IEEE 802.1D Bridge, auto MAC address learning/aging and MAC address (static)
Multiple Registration Protocol (MRP)
MSTP (RSTP/STP compatible)
TOS/Diffserv
supported
Quality of Service (802.1p) for real-time traffic
VLAN (802.1Q) with VLAN
tagging
IGMP v2/v3 Snooping
Application-based QoS management
DOS/DDOS auto
prevention
Port configuration, status, statistics, monitoring, security
DHCP
Server/Client/ Relay
Modbus TCP
NTP server
SMTP Client
Port failure with
relay
output
|
| Network Redundancy |
O-Ring
O-Chain
MRP
MSTP(RSTP/STP
compatible)
|
Fault contact
|
| Relay |
24VDC /1A |
Environmental
|
| Storage Temperature |
-40 to 85? |
| Operating Temperature |
-40 to 75? |
| Operating Humidity |
5% to 95% Non-condensing |
|
