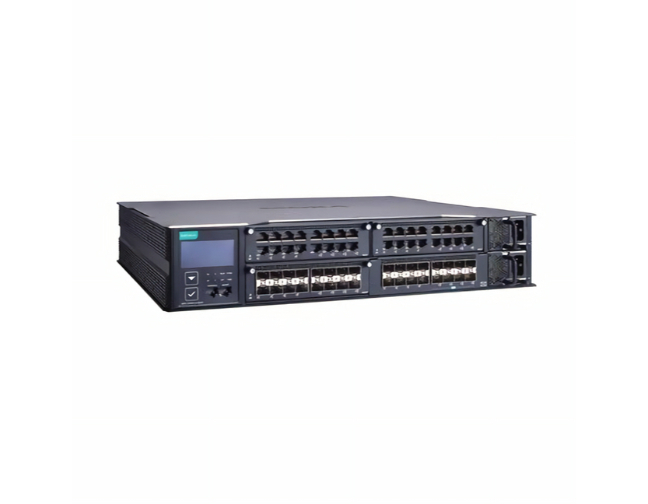

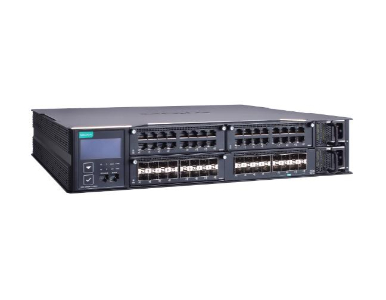

MRX-G4064-L3-8XGS - Layer 3 modular managed Gigabit Ethernet switch with 3 slots for 16-port Gigabit Ethernet modules by MOXA
|
|
|
MRX-G4064-L3-8XGS_SUMMARY.html
- 8
10GbE Ethernet ports
- Up to
56 1GbE ports or SFP slots
- HAST(High-availability Static Trunk)technology supports backbone reliability
- Onboard LCM display for at-a-glance status updates supports easy on-site maintenance
and operation
- Dual
power modules and 6+2 fan redundancy design for non-stop network operations
- Real-time system temperature monitoring to protect network and devices
|
|
|
MRX-G4064-L3-8XGS_DESCRIPTION.html
MRX-G4064-L3-8XGS - The MRX-G4064 Series is designed to meet the high-performance, high-availability requirements of industrial video, voice, and data applications resulting from the growing convergence of information technology in industrial sites.
MRX-G4064-L3-8XGS.html
Ethernet Interface |
1000/2500/10000BaseSFP Ports |
|
1000BaseSFP Slots |
|
Out-of-band Management (OOBM) |
- 1 x 8-pin RJ45 1GbE Ethernet port (MGMT)
|
Module |
- There are 3 module slots on the switch. Users can select different types of modules to insert
into the switch. The modules that can be selected include 16-port modules with 1000BaseT(X) or
1000BaseSFP interfaces.
Refer to Expansion Modules in the Accessories section for a full
list of supported interface modules.
|
Standards |
- IEEE 802.1D-2004 for Spanning Tree Protocol
IEEE 802.1p for Class of Service IEEE 802.1Q
for VLAN Tagging IEEE 802.1s for Multiple Spanning Tree Protocol IEEE 802.1w for Rapid
Spanning Tree Protocol IEEE 802.1X for Authentication IEEE 802.3ab for 1000BaseT(X)
IEEE 802.3ad for Port Trunk with LACP IEEE 802.3x for Flow Control IEEE 802.3z for
1000BaseSX/LX/LHX/ZX IEEE 802.3ae for 10 Gigabit Ethernet IEEE 802.3az for
Energy-Efficient Ethernet ITU-T G.8032 Ethernet Ring Protection Switching
|
Ethernet Software Features |
Management |
- IPv4
Flow control Back Pressure Flow Control DHCP Client ARP RARP
LLDP Linkup Delay SMTP SNMP Trap SNMP Inform SNMPv1/v2c/v3 RMON
TFTP SFTP HTTP HTTPS Telnet Syslog Private MIB Port Mirroring (SPAN,
RSPAN)
|
Filter |
- GMRP
GVRP GARP 802.1Q IGMP Snooping v1/v2/v3 IGMP Querier
|
Redundancy Protocols |
- STP
RSTP Turbo Ring v2 Ring Coupling Multiple Dual-Homing Link
Aggregation Network Loop Protection MSTP
|
Routing Redundancy |
|
Security |
- Broadcast storm protection
Rate Limit Access control list Static port lock
Sticky MAC HTTPS/SSL SSH RADIUS TACACS+ Login and password policy Secure
Boot
|
Time Management |
- SNTP
IEEE 1588v2 PTP (hardware-based) NTP Server/Client NTP Authentication
|
Protocols |
- TCP/IP
UDP ICMP ARP RARP TFTP DNS NTP Client DHCP Client
802.1X QoS HTTPS HTTP Telnet SMTP SNMPv1/v2c/v3 IPv4 RMON
Syslog
|
Unicast Routing |
|
MIB |
- P-BRIDGE MIB
Q-BRIDGE MIB IEEE8021-SPANNING-TREE-MIB IEEE8021-PAE-MIB
IEEE8023-LAG-MIB LLDP-EXT-DOT1-MIB LLDP-EXT-DOT3-MIB SNMPv2-MIB RMON MIB Groups
1, 2, 3, 9
|
Switch Properties |
MAC Table Size |
|
Max. No. of VLANs |
|
IGMP Groups |
|
Jumbo Frame Size |
|
Packet Buffer Size |
|
Priority Queues |
|
VLAN ID Range |
|
Power Parameters |
Input Voltage |
- 100-240 VAC, 50-60 Hz or 230-240 VDC (for each power supply)
|
Operating Voltage |
- 90-264 VAC, 47-63 Hz or 180-300 VDC (for each power supply)
|
Overload Current Protection |
|
Reverse Polarity Protection |
|
Input Current |
- Max. 1.236 A @ 110 VAC
Max. 0.675 A @ 220 VAC Max. 0.74 A @ 180 VDC Max. 0.439 A @ 300
VDC
|
Power Consumption (Max.) |
- Max. 134.2 W @ 110 VAC
Max. 132.3 W @ 220 VAC Max. 133.2 W @ 180 VDC Max. 131.8 W @ 300
VDC
Note: These are the maximum power consumption ratings for the device with the maximum
number of modules installed.
|
Power Module |
- 2 x slots (2 x PWR-300-HVA-IF power modules included)
|
Physical Characteristics |
IP Rating |
|
Dimensions |
- 440 x 88 x 420 mm (17.32 x 3.46 x 16.54 in)
|
Weight |
|
Fan Module |
- 8 x slots (8 x XM-4000-FAN-R preinstalled)
|
Installation |
|
Interactive Interface |
- Onboard LCM display
Push buttons for configuration
|
Environmental Limits |
Operating Temperature |
|
Storage Temperature (package included) |
|
Ambient Relative Humidity |
- 5 to 95% (non-condensing)
|
Standards and Certifications |
Safety |
- UL 62368-1
UL 61010-2-201 IEC 62368-1
|
EMC |
- EN 55032/35
EN 61000-6-2/-6-4
|
EMI |
- CISPR 32, FCC Part 15B Class A
|
EMS |
- IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m
IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4
kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF IEC 61000-4-11 Voltage Dips &
Interruptions
|
Railway |
|
Shock |
|
Vibration |
|
Package Drop Test |
|
Package Vibration Test |
|
|
