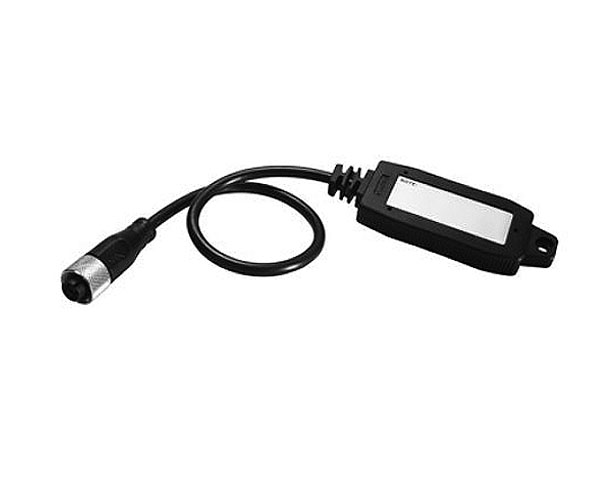

Moxa ABC-01-M12 - Configuration backup and restoration tool with M12 Connection
by MOXA

ABC-01 series with RS-232/M12 console port connection
Backup and restore switch configuration files
Load the system configuration automatically after system reboot
Portable low-power design (requires no power supply)
CE and FCC approved

Description
Specification
Datasheet

The ABC-01-M12 configuration backup and restoration tool is designed with M12 connector that can be used to save and load the configuration of Moxa's ToughNet series EN50155 managed Ethernet switches through the switches' RS-232 console port. This simple yet powerful tool makes it much easier to back up a switch's system parameters, or even replace an existing switch with a new switch. With the ABC-01, you can quickly re-install a substitute switch (of the same model) or recover the entire system configuration, including IP address, if a switch failure occurs.

• Interface
Connectors	RS-232/M12 port
LED Indicators	None
• Basic Operation
Storage Capacity	128 KB Flash
Configuration	Use the web console of Moxa’s managed switches
• Power Requirements
Input Voltage	3 to 5 VDC (through the RS-232 port’s RTS signal)
• Physical Characteristics
Housing	PVC molding, IP40 protection
Dimensions	32.5 x 97 x 12 mm (1.28 x 3.82 x 0.47 in)
Weight	ABC-01-M12: 60 g
Mounting Method	M4 screws (< 4 mm)
Cable Length	35 cm ±3 cm (including connector)
• Environmental Limits
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-20 to 70°C (-4 to 158°F)
Ambient Relative Humidity	5 to 95 % (non-condensing)
• Standards and Certifications
EMI	FCC Part 15 Subpart B Class A, EN 55022 Class A
EMS	EN 61000-4-2 (ESD) Level 2(ABC-01 Series), EN 61000-4-2 (ESD) Level 3(ABC-02 Series), EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3
• Warranty
Warranty Period	5 years
