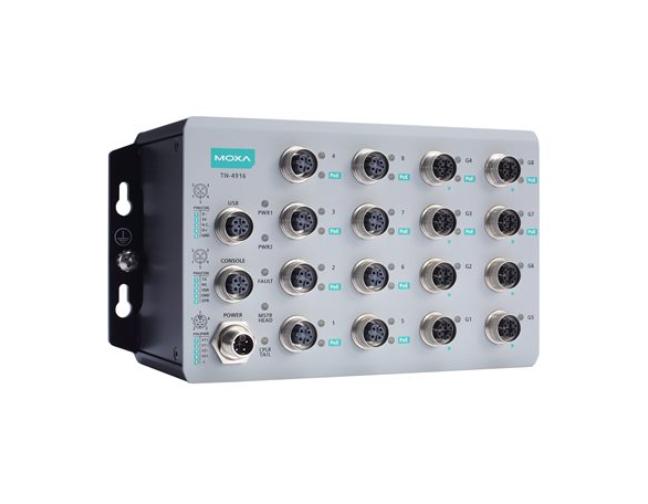

TN-4916-8PoE-4GPoE-4GTX-WV-CT-T - 16 port router includes 8*GE with 4PoE, and 8*FE with 8PoE, 24 to 110 VDC power input, -40 to by MOXA
|
|
|
TN-4916-8PoE-4GPoE-4GTX-WV-CT-T_SUMMARY.html
- 8 Gigabit ports and up to 12 PoE ports
- IEC 61375 ETBN functionality(ETBN models)
- Dual bypass relay
- Supports regular and push-pull M12 connectors
- Isolated power input range from 24 to 110 VDC
- Complies with all EN 50155 mandatory test itemsThis product is suitable for rolling stock railway applications,as defined by the EN 50155 standard.
- -40 to 70C operating temperature range
- IEC 62443-4-2:2019 certified
|
|
|
TN-4916-8PoE-4GPoE-4GTX-WV-CT-T_DESCRIPTION.html
TN-4916-8PoE-4GPoE-4GTX-WV-CT-T - The ToughNet TN-4900 Series, designed for rolling stock
Ethernet networks, is a set of high-performance M12 routers with 8
Gigabit ports and up to four bypass relay ports. These routers feature
firewall, ETBN, and routing functionality to facilitate the deployment
of applications across networks. The TN-4900 Series routers use M12
and other circular connectors to ensure tight, robust connections
that guarantee reliability against environmental disturbances, such
as vibration and shock.
TN-4916-8PoE-4GPoE-4GTX-WV-CT-T.html
Ethernet Interface -
PoE Ports (10/100BaseT(X), M12 D-coded 4-pin female connector) -
PoE Ports (100/1000BaseT(X), M12 X-coded 8-pin female connector) -
10/100/1000BaseT(X) Ports (M12 X-coded 8-pin female connector) -
Standards - IEEE 802.1Q for VLAN Tagging
IEEE 802.1w for Rapid Spanning Tree Protocol IEEE 802.3af/at for PoE/PoE+ output IEEE 802.3ab for 1000BaseT(X) IEEE 802.1X for authentication IEEE 802.1D-2004 for Spanning Tree Protocol IEEE 802.3x for flow control IEEE 802.3u for 100BaseT(X) IEEE 802.1p for Class of Service IEEE 802.3 for 10BaseT Ethernet Software Features -
Configuration Options - Command Line Interface (CLI) through Serial/Telnet/SSH
Web Console (HTTP/HTTPS) Windows Utility -
Filter - IGMP v1/v2
Static Multicast 802.1Q -
Management - Back Pressure Flow Control
SNMP Inform LLDP Syslog HTTP HTTPS Flow control SMTP QoS/CoS/ToS Port Mirror SNMP Trap SNMPv1/v2c/v3 IPv4 Telnet DHCP Server SFTP SCP TFTP RARP Account Management DHCP Client (Option 1/3/12/50/51/53/54/55/57/61/66/67/124/255) DHCP Server (Option 1/3/6/12/15/28/42/50/55) DHCP Relay Agent -
Redundancy Protocols - RSTP
Static Port Trunk Turbo Ring v2 STP -
Routing Redundancy -
Security - Secure Boot
IPsec L2TP (server) RADIUS Trust access control -
Time Management -
Unicast Routing - RIPV1/V2
OSPF Static Route -
Railway -
Multicast Routing -
Routing Throughput - 450,000 FPS (pure routing)
DoS and DDoS Protection -
Technology - NMAP-ID Scan
ARP-Flood SYN/FIN Scan Null Scan ICMP-Death FIN Scan SYN-Flood NEWWithout-SYN Scan Xmas Scan NMAP-Xmas Scan SYN/RST Scan Firewall -
Filter - ICMP
MAC address Ethernet protocols Ports IP address DDoS -
Quick Automation Profiles - DNP
DPI EtherCAT EtherNet/IP FOUNDATION Fieldbus FTP HTTP IEC 60870-104 IPsec L2TP LonWorks Modbus TCP PPTP PROFINET RADIUS SSH Telnet VPN -
Stateful Inspection - Router firewall
Transparent (bridge) firewall -
Throughput - Max. 350,000 packets per second
IPsec VPN -
Authentication - MD5 and SHA (SHA-256)
RSA (key size: 1024-bit, 2048-bit) X.509 v3 certificate -
Encryption - 3DES
DES AES-128 AES-192 AES-256 -
Concurrent VPN Tunnels - Max. 250 IPsec VPN tunnels
Switch Properties -
IGMP Groups -
MAC Table Size -
Max. No. of VLANs -
VLAN ID Range LED Interface -
LED Indicators - STATE, PWR1, PWR2, FAULT, 10/100/1000M, PoE
NAT -
Features - 1-to-1
Port forwarding N-to-1 Serial Interface -
Console Port - RS-232 (M12 B-coded 5-pin female connector)
USB Interface -
M12 Connector - M12 A-coded 5-pin female (for ABC-02 USB storage)
Power Parameters -
Input Current -
Input Voltage - 24/36/48/72/96/110 VDC
Redundant dual inputs No. of power inputs: 2 -
Operating Voltage -
Power Connector - M12 K-coded 5-pin male connector
-
Total PoE Power Budget -
Overload Current Protection -
Reverse Polarity Protection Physical Characteristics -
Housing -
Dimensions - 206 x 115 x 100 mm (8.10 x 4.53 x 3.94 in)
-
IP Rating -
Weight -
Installation -
Protection Environmental Limits -
Operating Temperature -
Storage Temperature (package included) -
Ambient Relative Humidity - 5 to 95% (non-condensing)
-
Altitude Standards and Certifications -
EMC -
EMI - CISPR 32, FCC Part 15B Class A
-
EMS - IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV IEC 61000-4-6 CS: 10 V IEC 61000-4-8 PFMF -
Radio Frequency -
Railway - EN 50121-4
EN 50155 IEC 60068-2-1, EN 50155 IEC 60068-2-14, EN 50155 IEC 60068-2-2, EN 50155 IEC 60068-2-30, EN 50155 IEC 60068-2-78 IEC 60571 -
Railway Fire Protection -
Safety -
Salt Spray Test -
Shock - IEC 60068-2-27, IEC 61373, EN 50155
-
Vibration - IEC 60068-2-64, IEC 61373, EN 50155
-
Package Drop Test -
Package Vibration Test Declaration MTBF
|
