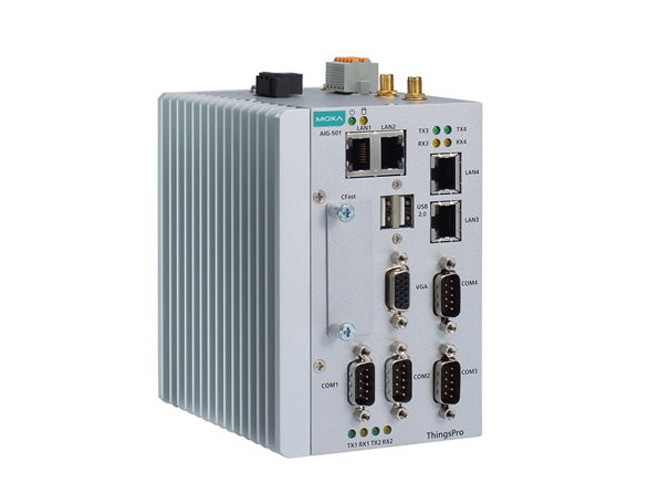

AIG-501-T-AP-AZU-LX, the AIG-500 Series advanced IIoT gateways are designed for Industrial IoT applications, especially for distributed and unmanned sites in harsh operating environments. ThingsPro Edge and Azure IoT Edge software are preloaded and seamlessly integrated with the AIG-500 Series to enable easy, reliable, yet secure sensor-to-cloud connectivity for data acquisition and device management using the Azure Cloud solution. With the use of the ThingsPro Proxy utility, the device provisioning process is easier than ever. Thanks to the robust OTA function, you never have to worry about system failure during software upgrades. With the secure boot function enabled, you can enable the booting process of AIG-500 Series to prevent malicious software–injection attacks.
Appearance
CPU
Intel Atom® Processor E3845 (2M Cache, 1.91 GHz)
Graphics Controller
Intel® HD Graphics
DRAM
4 GB DDR3L
Storage Pre-installed
32 GB CFast GB eMMC
Pre-installed OS
Linux Debian 9, Kernel 4.9
TPM
TPM v2.0
Ethernet Ports
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
Serial Ports
RS-232/422/485 ports x 4, software selectable (DB9 male)
Digital Input
DIs x 4
Digital Output
DOs x 4
USB 2.0
USB 2.0 hosts x 2, type-A connectors
Wi-Fi Antenna Connector
AIG-501-T-AZU-LX: RP-SMA x 2
Cellular Antenna Connector
AIG-501-T-US-AZU-LX: SMA x 2
AIG-501-T-EU-AZU-LX: SMA x 2
AIG-501-T-AP-AZU-LX: SMA x 2
GPS Antenna Connector
AIG-501-T-US-AZU-LX: SMA x 1, AIG-501-T-AP-AZU-LX: SMA x 1, AIG-501-T-EU-AZU-LX: SMA x 1
Number of SIMs
1
Expansion Slots
AIG-501-T-AZU-LX: mPCIe slot x 1
SIM Format
Mini
Video Output
VGA x 1, 15-pin D-sub connector (female)
Magnetic Isolation Protection
1.5 kV (built-in)
Connector
DB9 male
Baudrate
300 bps to 921.6 kbps
Data Bits
5, 6, 7, 8
Flow Control
ADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Parity
None, Even, Odd, Space, Mark
Stop Bits
1, 1.5, 2
Isolation
N/A
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
Connector
Spring-type Euroblock terminal
Sensor Type
Dry contact
Dry Contact
Off: open
On: short to GND
Isolation
None
Connector
Spring-type Euroblock terminal
Current Rating
10 mA (max.) total for all channels
I/O Type
Sink
Isolation
None
Cellular Standards
LTE CAT-4
Band Options (US)
LTE Band 2 (1900 MHz) / LTE Band 4 (1700 MHz) / LTE Band 5 (850 MHz) / LTE Band 12 (700 MHz) / LTE Band 13 (700 MHz) / LTE Band 14 (700 MHz) / LTE Band 66 (1700 MHz) / LTE Band 71 (600 MHz)
UMTS/HSPA Band 2 (1900 MHz) / Band 4 (1700 MHz) / Band 5 (850 MHz)
Carrier Approval: Verizon, AT&T
Band Options (EU)
LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 7 (2600 MHz) / LTE Band 8 (900 MHz) / LTE Band 20 (800 MHz) / LTE Band 28A (700 MHz)
UMTS/HSPA Band 1 (2100 MHz) / Band 3 (1900 MHz) / Band 8 (900 MHz)
Band Option (APAC)
LTE Band 1 (2100 MHz) / LTE Band 3 (1800 MHz) / LTE Band 5 (850 MHz) / LTE Band 8 (900 MHz) / LTE Band 9 ( MHz) / LTE Band 18 (850 MHz) / LTE Band 19 (850 MHz) / LTE Band 28 (700 MHz)
UMTS/HSPA Band 1 (2100 MHz) / Band 5 (850 MHz) / Band 6 (800 MHz) / Band 8 (900 MHz) / Band 19 (800 MHz)
