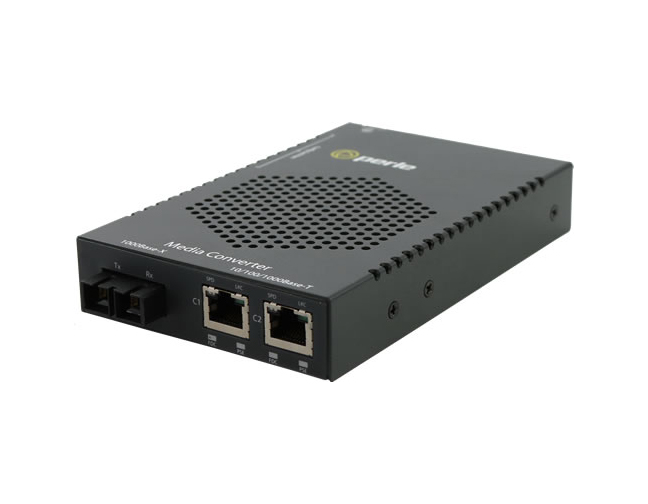

05079684 S-1110DHP-SC10 - Gigabit Media and Rate Converter with Type 4 High-Power PoE PSE (up to 100W/port)
by PERLE

1 x 10/100/1000Base-T port models: 4 watts

2 x 10/100/1000Base-T port models: 4.7 watts

Note: for the HP PoE SFP models the numbers above don’t include the SFP power consumptions

4 pin DIN connector

1 x 10/100/1000Base-T port models: 100-240v AC, regulated AC, 56VDC/120W, 4Pin DIN connector (adapter included)

2 x 10/100/1000Base-T port models: 100-240v AC, regulated AC, 56VDC/200W, 4Pin DIN connector (adapter included)

This green LED is operational only when power is applied. The LED will blink along with transmit/receive data on the fiber port

If a loss of link on the copper port results in a Link Passthrough condition to the fiber port, this LED will blink at a rate of once every 2 seconds until the condition is cleared.

This green LED is operational only when power is applied. The LED will blink along with transmit/receive data on the 10/100/1000 UTP port

If a loss of link on the copper port results in a Link Passthrough condition to the fiber port, this LED will blink at a rate of once every 2 seconds until the condition is cleared.

This LED will signify the status of the PSE function. Using multi-color and blinking the unit will show the following status for the PSE;

GREEN — Solid: The PSE has successfully detected a compliant PD and is applying power over the UTP (for legacy pin out simply show active power when applied)

YELLOW — Solid: The PSE is not active. This means the PSE has been configured to provide power, but the PD is :

• Not connected
• Has not detected a compliant PD and is not applying power
• PSE has turned off power for Reset function

OFF — PSE function switch disabled

RED — Blinking: Error Conditions

• Capacitance too High — 1 blink
• Resistance too Low or short circuit — 2 blinks
• Resistance too high or open circuit — 3 blinks

Disabled - The media converter sets the port according to the position of the speed and duplex switches.

Link Mode provides a transparency to the state of the copper link allowing for simplified trouble shooting from the devices connected to the media converter.

Normal (Default — Up) With Fiber Auto Negotiation enabled when the copper link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault).

With Fiber Auto Negotiation disabled the state of the copper link has no effect on the 1000Base-X link.

Smart Link Pass Through (Down) With Fiber Auto Negotiation enabled the behavior is as follows. When the copper link goes down the 1000Base-X link is brought down. The 1000Base-X link will advertise Remote Fault (Link Fault). When Remote Fault (Link Fault) is received on the 1000Base-X interface the copper transmitter will be turned off. When the copper receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the copper transmitter will be turned off.

With Fiber Auto-Negotiation disabled the behavior is as follows. When the copper receiver is off the 1000Base-X transmitter will be turned off. When the 1000Base-X receiver goes off the copper transmitter will be turned off.

The Fiber Fault Alert switch has meaning when Auto-Negotiation is disabled

Enabled (Default - Up) When the 1000Base-X receiver is off the 1000Base-X transmitter is turned off. Periodically the 1000Base-X receiver will be turned on for a short period to allow the condition to clear if the 1000Base-X link partner is using a similar feature.

Disabled (Down)

The media converter can perform a loopback on the 1000Base-X fiber interface.

Disabled (Default - Up)

Enabled - The 1000Base-X receiver is looped to the 1000Base-X transmitter. The copper transmitter is taken off the interface.

Up: The Media Converter will negotiate Ethernet parameters on the fiber connection. This will ensure that the most optimal connection parameters will be in effect. If connecting to another Perle Media Converter, this parameter should be set to Auto. The Media Converter Module will advertise 1000Mbps, Full and Half Duplex, no Pause.

Down: The Media Converter Module’s fiber will be fixed to 1000Mbps, Full Duplex.

If Auto-Negotiation (802.3u) is enabled, the media converter determines the current cable pinout to use on the copper interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the copper interface to set the port MDI or MDIX whichever is appropriate.

Enabled (Default) - Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable.

Disabled - If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.

Settable for each UTP port available.

When enabled (UP), the media converter will perform a Power Sourcing Equipment (PSE) function as per IEEE802.3bt standard.

Default is "enabled"

This is a technique to perform a power reset on a PD device(s) attached.

When enabled ( down ), the media converter will upon loss of link on any fiber port, turn off PSE output power to the PD device(s) for 2 seconds then turn the power back on. The power remains on until any fiber link transitions from up to down again.

With Passthrough enabled ( Link Mode enabled and Fiber Auto-Negotiation enabled ) , a loss of link on the fiber resulting from a loss of link on the copper, a PD Power Reset till still occur.

When PD Power Reset disabled, loss of fiber link has no effect on PSE power to the PD device(s).

CAT3 and above for PoE power up to 15.4 watts

CAT5 and above for PoE power between 15.4 watts and up to 30 watts

CAT6 and above for PoE power between 30 watts and up to 100 watts

Note: always choose the highest Ethernet CAT category between desired speed and PoE power

RJ45 connector

2 pair CAT5, EIA/TIA 568A/B or better cable for 10/100.

4 pair CAT5 UTP cable for Gigabit.

Note: always choose the highest Ethernet CAT category between desired speed and PoE power

Dual multimode or single mode ( Duplex ) fiber - SC, ST

Single strand fiber ( Simplex ) - SC

Hot insertion and removable ( hot swappable ).

1 x 10/100/1000Base-T port models: 13.65 BTU/hr

2 x 10/100/1000Base-T port models: 16 BTU/hr
