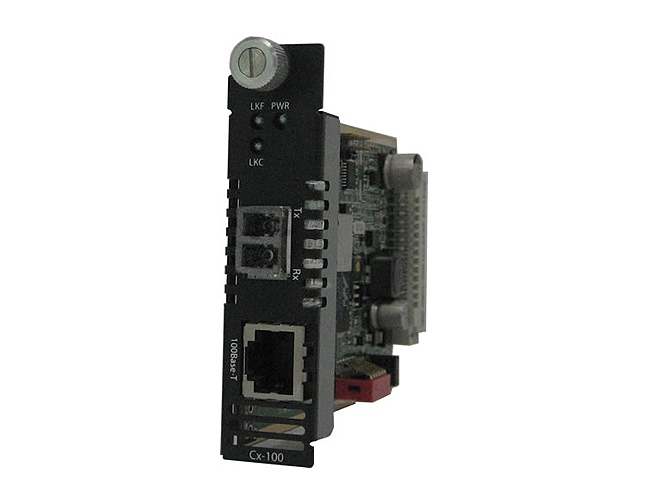

05052380 CM-100-S2LC120 - Fast Ethernet Media Converter Managed Module 100BASE-TX (RJ-45) [100 m/328 ft.] to 100Base-ZX 1550nm s by PERLE

05052380 CM-100-S2LC120 - Fast Ethernet Media Converter Managed Module 100BASE-TX (RJ-45) [100 m/328 ft.] to 100Base-ZX 1550nm s
by PERLE
Write a review Write a review
Mfg SKU # : 05052380
List Price : $2,844.00
Our Price : $2,418.00
Stock : Call for Availability
Quantity :

Installed in a high density Perle Media Converter Chassis, Perle's feature rich Managed Fast Ethernet Media Converter Modules transparently connect UTP copper to fiber. Our fast ethernet media converters provide an economical path to extend the distance of an existing network, the life of non-fiber based equipment, or the distance between two devices.

Network Administrators can rest assured with Perle's advanced features such as Auto-Negotiation, Auto-MDIX, Link Pass-Through, Far End Fault, and Pause which make the end to end link completely transparent. This allows for more efficient troubleshooting and less on-site maintenance. Along with a Media Converter Management Module in the chassis, configuration and monitoring of the copper and fiber ports can be performed. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle's managed fast ethernet media converter modules the smart choice for IT professionals.

For those environments requiring a medium to large-scale deployment of media converters, a centralized platform that simplifies the configuration, administration, monitoring, and troubleshooting of this gear is recommended. PerleVIEW Device Management software is a multi-user, Windows server-based application that delivers this level of Enterprise-grade solution.

CM-100 Managed Media Converter Features

Configuration Mode selection Select whether the module is to use the on-board DIP switches or enable the management module in the chassis to manage
Auto / MDIX Auto-MDIX (automatic medium-dependant interface crossover) detects the signaling on the 100Base-TX interface to determine the type of cable connected (straight-through or crossover) and automatically configures the connection when enabled. With Auto-MDIX enabled, either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable. Can manually set Auto or MDIX on the copper port via on-board strap or via the management card
Module Information
  • Chassis Slot number that the module is in
  • Media converter model and serial
  • User configurable module name
  • User configurable fiber port name
  • User configurable copper port name
  • Hardware revision number
  • Firmware version number
Module DIP switch settings View hardware DIP switch settings
Port Control Enable or disable individual fiber or copper port on the module
Copper Port Status
  • Port Enabled (Yes/No)
  • Link Status (Up/Down)
  • Auto Negotiation Settings (Disabled, Complete or In Progress)
  • Resolved as crossover MDI or MDIX type
Fiber Port Status
  • Port Enabled (Yes/No)
  • Connector type (SC, LC, ST)
  • Link Status (Up/Down)
  • Far End Fault (OK, Failed)
  • Fiber Loopback mode (On/Off)
Module Control
  • Reset card
  • Reset to factory default
  • Phy specific commands such write/read config, read dip switches
  • Update firmware
  • Fiber Loopback mode. (On/Off)
  • Upload/download configuration
Backup and Restore Provides fast and easy module replacement. Management module will always save a copy of the media converter configuration and will restore this configuration automatically to the media module when it is detected in the slot
Auto-Negotiation (802.3u) The media converter supports auto negotiation on the fast ethernet 100Base-TX interface.
Link Pass-Through With Link Pass-Through the state of the 100Base-TX receiver is passed to the 100Base-FX transmitter to make the media converter appear transparent to the end devices that are connected. In addition if Far-End Fault is enabled the media converter can turn off the 100Base-TX transmitter when a FAR-End Fault is received.

Using Link Pass-Through with Far-End Fault minimizes data loss when a fault occurs. Should a fault occur, the end devices have the indication of a failure available to them making trouble shooting easier.
Far-End Fault (FEF) The media converter implements the 802.3 standard for Far-End Fault for the indication and detection of remote fault conditions on the 100Base-FX fiber connection. With Far-End Fault enabled the media converter transmits the Far-End Fault Indication over the 100Base-FX fiber connection whenever a receive failure is detected on the 100Base-FX fiber connection. The media converter continuously monitors the100Base-FX fiber connection for a valid signal.

The action the media converter takes on receiving a Far-End Fault Indication is dependent on the Link Pass Through switch setting.
Pause (IEEE 802.3xy) Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The fast ethernet media converter supports pause negotiation on the 100Base-TX copper connection.
VLAN The media converter is transparent to VLAN tagged packets.
Indicators
Power / TST This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
Fiber link on / Receive activity (LKF) This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.
Copper link on / Receive activity (LKC) This green LED is operational only when power is applied. The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received.
Switches: On-Board (If Auto/Switch strap is set to Switch)
Auto-Negotiation (802.3u) Enabled (Default) - The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex.

Disabled - The media converter sets the 100Base-TX port to full duplex.
Pause Pause should be enabled when all devices connected to the media converter support pause. Auto-Negotiation must be Enabled to use this feature.

Enabled (Default) - The Media converter will advertise Pause capability during Auto-Negotiation on the 100Base-TX interface.

Disabled - The Media converter will advertise that it does not have Pause capability during Auto-Negotiation on the 100Base-TX interface.
Link Pass Through Enabled (Default) - When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter.

When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on.

Disabled - The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface.
Far-End Fault (FEF) Enabled (Default) - The media converter transmits the Far-End Fault Indication over the 100Base-FX fiber connection whenever a receive failure is detected on the 100Base-FX fiber connection. The media converter continuously monitors the100Base-X fiber connection and clears the Far-End Fault Indication condition when a valid signal is received.

Disabled - Far-End Fault Indications are not transmitted regardless of the condition of the receive signal on the 100Base-FX fiber connection.
Remote Loopback The media converter can perform a loopback on the 100Base-X fiber interface.

Disabled (Default - Up)

Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
Auto-MDIX (Strap) If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate.

Enabled (Default) - Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable.

Disabled - If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media convertor's transmitter and the partner devices transmitter are connected to the others receiver. The Media Convertor's 100Base-TX port is configured as MDI with this switch setting.
Configuration Mode (Strap) Auto (default) enable management module to overwrite hardware switch settings
Switch - Use onboard DIP switches
Cables
100Base-TX RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable
Magnetic Isolation 1.5kv
Fiber Optic Cable

Single mode dual LC Media Converters

Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron
Single Mode: 9/125 micron (ITU-T 625)
Packet Transmission Characteristics
Bit Error Rate (BER) <10 -12
Environmental Specifications
Operating Temperature 0 C to 50 C (32 F to 122 F)
Storage Temperature minimum range of -25 C to 70 C (-13 F to 158 F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Heat Output
( BTU/HR )		 6.8
Maximum Power Consumption ( Watts ) 2.0
MTBF (Hours)* 595,000
Mechanical - Hot Swapping Card
Edge Connecter 32 pin DIN 41612 / IEC 60603-2 Type B/2 Male. Fist make, last break for ground and power
Card insertion and removal Captive thumb screws enable fast insertion and removal. Can be further tighten with a screwdriver.
Product Weight
Weight 0.15 kg, 0.33 lbs
Packaging
Shipping Weight 0.33 kg, .73 lbs
Shipping Dimensions 203 x 38 x 152 mm, 8 x 1.5 x 6 inches
Regulatory Approvals
Emissions FCC Part 15 Class A, EN55022 Class A
CISPR 22 Class A
EN61000-3-2
Immunity EN55024
Electrical Safety UL 60950-1
EN60950
CE
Laser Safety EN 60825-1:2007
Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A991A
HTSUS Number: 8517.62.0050
Perle Limited Lifetime Warranty
