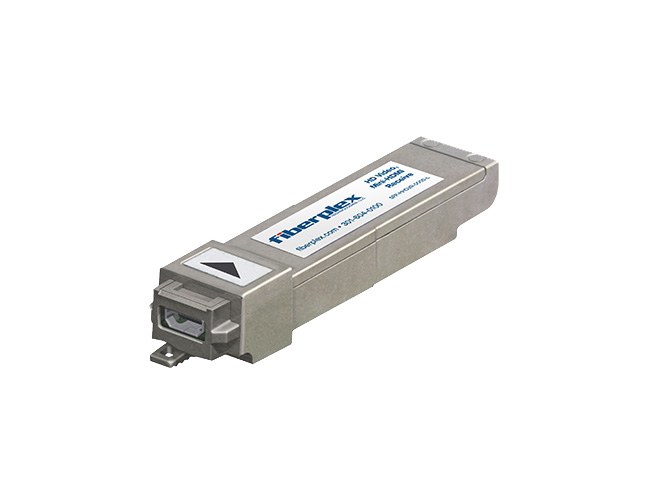

Patton SFP-HHDVT1-0000-M - SFP, HDMI Type D, HD Video (3G) Single Transmit, Medium Reach, MSA
by PATTON

Compliant with SMPTE 424M, 292M and 259M
Supported formats 25/625, 720p/1080i (50/59.94/60Hz), 1080p (23.98/24/15/29.97/30/50/59.95/60 Hz)
Integrated cable driver (HDMI/DVI interface config, EDID reading, audio mapping, voltage and temp, and module info)
HDMI/DVI Inputs include 24 bit (3x8 bits), RGB 4:4:4, YCbCr 4:2:2, YCbCr 4:4:4, BW = 150Mhz, RGB Range (Full/SMPTE), Up to 8 channel audio de-embedding (PCM), HDMI 1.4 Type D connector, HDMI Type D plug with retention and HDCP supported
Control via serial interface including Voltage & Temperature Monitoring, HDMI/DVI interface configuration, EDID reading, Audio mapping and Module Information.
Low Power Consumption Single Supply +3.3V
Operating temperature: 0°C to 70°C

Description
Specification
Datasheet

The Patton Model SFP-HHDVT1-0000-M is a series of electrical transmitter and receiver SFPs designed to convert HDMI/DVI (High definition multimedia interface) to an SDI signal output without scaling artifacts. The SFP-HHDV enforces HDCP, therefore the unit will not pass protected content. Up to 8 channel of audio is supported and de-embedded from the HDMI signal.

The SFP-HHDVR1-0000-M provides module identification information, configuration and diagnostic monitoring through a 2 wire serial interface. It is also a hot pluggable solution for field system upgrade and maintenance. The unit is interchangeable with other MSA optical video SFP, coaxial SFP and SFP converter improving product flexibility. Ganged cages, belly-to-belly and superposed cages mounting are supported.

The specifications for this product are contained in the User Manual
