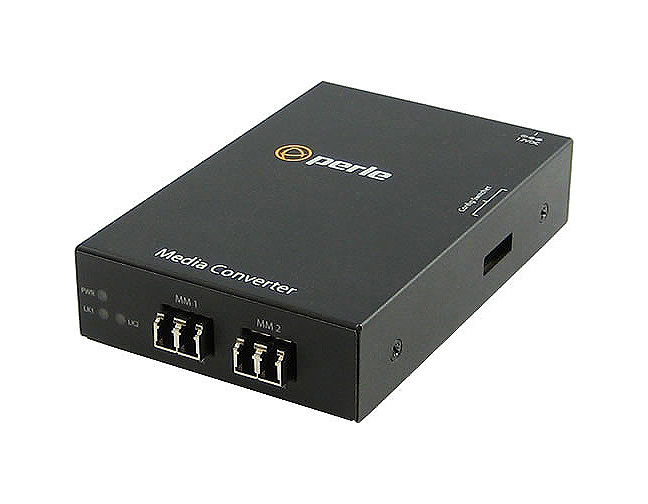

Power |
Input Supply Voltage |
6 - 30 vDC, unregulated ( 12 vDC Nominal ) |
Current |
0.29 amps |
Power Consumption |
3.5 watts |
Power Connector |
5.5mm x 9.5mm x 2.1mm barrel socket |
Power Adapter |
Universal AC/DC Adapter |
100-240v AC, regulated DC adapter included |
Indicators |
Power / TST |
This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink slowly when in Loopback test mode. |
Fiber link 1 / Receive activity (LK1) |
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received. |
Fiber link 2 on / Receive activity (LK2) |
This green LED is operational only when power is applied. The LED is on when the 100Base-X link is on and flashes with a 50% duty cycle when data is received. |
Switches - accessible through a side opening in the chassis |
Link Pass Through |
Enabled (Default) - When the state of the receiver is changed on one of the 100Base-X interfaces it is reflected on the other 100Base-X fiber transmitter. If disabled, the 100Base-X fiber interfaces operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the other interface. |
Far-End Fault (FEF) |
Enabled ( default ) - The media converter transmits the Far-End Fault Indication over the fiber connection whenever a receive failure is detected. The media converter continuously monitors the fiber connection and clears the Far-End Fault Indication condition when a valid signal is received.
Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #2's fiber transmitter is taken off the interface. |
Remote Loopback #1 |
The media converter can perform a loopback on the link #1 fiber interface.
Disabled (Default - Up)
Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface. |
Remote Loopback #2 |
The media converter can perform a loopback on the link #1 fiber interface.
Disabled (Default - Up)
Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. Link #1's fiber transmitter is taken off the interface. |
Cables |
Fiber Optic Cable |
Multimode dual LC to multimode dual LC fiber connector model
Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron
Single Mode: 9/125 micron (ITu-T 625) |
Packet Transmission Characteristics |
Bit Error Rate (BER) |
<10 -12 |
Environmental Specifications |
Operating Temperature |
0 C to 50 C (32 F to 122 F) |
Storage Temperature |
minimum range of -25 C to 70 C (-13 F to 158 F) |
Operating Humidity |
5% to 90% non-condensing |
Storage Humidity |
5% to 95% non-condensing |
Operating Altitude |
Up to 3,048 meters (10,000 feet) |
Heat Output
( BTU/HR ) |
11.9 |
MTBF (Hours)** |
Without power adaptor: 503,679
With power adaptor: 302,090 |
Mounting |
Din Rail Kit |
Optional |
Rack Mount Kit |
Optional |
Product Weight and Dimensions |
Weight |
0.3 kg, 0.66 lbs |
Dimensions |
120 x 80 x 26 mm, 4.7 x 3.1 x 1.0 inches |
Packaging |
Shipping Weight |
0.55 kg, 1.2 lbs |
Shipping Dimensions |
170 x 280 x 70 mm, 6.7 x 10.2 x 2.8 inches |
Regulatory Approvals |
Emissions |
FCC Part 15 Class B*, EN55022 Class B* |
CISPR 22 Class B* |
EN61000-3-2 |
Immunity |
EN55024 |
Electrical Safety |
UL 60950-1 |
EN60950 |
CE |
Laser Safety |
EN 60825-1:2007 |
Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11. |
Environmental |
Reach, RoHS and WEEE Compliant |
Other |
ECCN: 5A991A |
HTSUS Number: 8517.62.0050 |
Perle Limited Lifetime Warranty |
