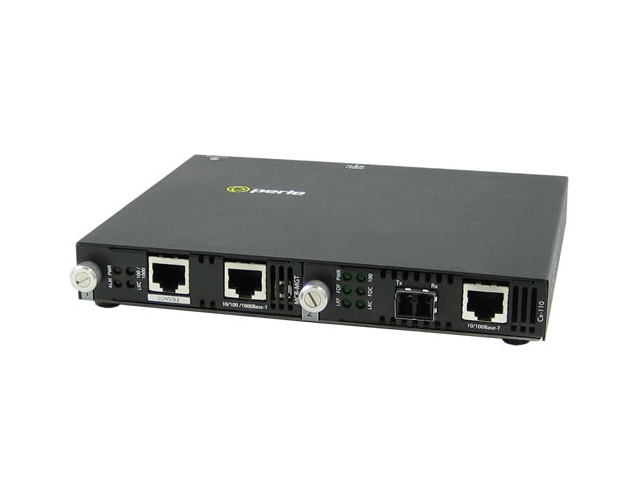

05071014 SMI-110-S2LC80 - 10/100 Fast Ethernet IP Managed Standalone Media and Rate Converter. 10/100BASE-TX (RJ-45) [100 m/328 by PERLE

05071014 SMI-110-S2LC80 - 10/100 Fast Ethernet IP Managed Standalone Media and Rate Converter. 10/100BASE-TX (RJ-45) [100 m/328
by PERLE
Write a review Write a review
Mfg SKU # : 05071014
List Price : $3,142.00
Our Price : $2,671.00
Stock : Call for Availability
Quantity :

Perle’s advanced line of Managed 10/100 Ethernet Media Converters, transparently connect UTP ethernet copper to multimode or single mode fiber.  While providing an economical means of extending your existing copper based network connection, these media converters are SNMP manageable to enable complete control and status viewing of your fiber links.

Perle 10/100 Managed Media Converters come standard with extensive cost and time saving features.  In addition,  a lifetime warranty and free worldwide technical support make Perle's Managed 10/100 Ethernet Converters the smart choice for IT professionals.

SMI-110 Managed Fast Ethernet Media Converter Features

QOS ( Quality of Service )
  • Bandwidth Allocation via rate limiting
  • IEEE 802.1P tagged frame priority control
  • IEEE 802.1P priority tag remapping
  • IP TOS ( Type of Service ) priority for IPV4 Diffserv or IPV6 traffic class frames
  • Congestion Service Policy through WQF ( Weighted Fair Queuing ) or Strict Priority Queuing ( default )
VLAN Tagging
  • Default – Transparent to VLAN frames
  • Enable discarding of tagged frames
  • Enable discarding of untagged frames
  • Untag – Removes any existing tag
  • Insert Tag – Insert (if original frame is untagged) or replace (if original frame is tagged) the VLAN ID and priority with the configured default VLAN ID and priority tag.
  • Insert Double tag (Q in Q) – Append an additional tag using the configured default VLAN ID and priority.
Unknown Multicast Frame filtering When enabled, Multicast frames with an unknown destination address are not allowed to egress the port
Unknown Unicast Frame filtering When enabled, Unicast frames with an unknown destination address are not allowed to egress the port
Unidirectional Ethernet When enabled, provides the ability to restrict port to one-way traffic flow. Used in applications such as unidirectional video broadcasting as well as providing security for ethernet connections in accessible public areas
Configuration Mode selection Select whether to use the on-board DIP switches or the management software for mode selection
Auto-MDIX Can manually set Auto or MDIX on the copper port via on-board strap or via the management software.
Auto-MDIX (automatic medium-dependant interface crossover) detects the signaling on the UTP interface to determine the type of cable connected (straight-through or crossover) and automatically configures the connection when enabled. With Auto-MDIX enabled, either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable.
Converter Information
  • User configurable media converter name
  • User configurable fiber port name
  • User configurable copper port name
  • Hardware revision number
  • Firmware version number
DIP switch settings View hardware DIP switch settings
Selectable Max Packet Size Set max packet size to 1522, 1518 or 2048 ( default )
10BaseT Extended Distance Normal/extended – default Normal. By configuring as “extended”, the 10baseT receiver sensitivity is increased providing the possibility of a 10BaseT connection greater than 100m.
Port Control Enable or disable individual fiber or copper port on the converter
Copper Port Status
  • Port Enabled (Yes/No)
  • Link Status (Up/Down)
  • Auto Negotiation Settings (Disabled, Complete or In Progress)
  • Resolved as crossover MDI or MDIX type
Fiber Port Status
  • Port Enabled (Yes/No)
  • Connector type (SC, LC, ST)
  • Link Status (Up/Down)
  • Far End Fault (OK, Failed)
  • Fiber Loopback mode (On/Off)
Control
  • Reset
  • Reset to factory default
  • Reset Statistical counters
  • Phy specific commands such write/read config, read dip switches
  • Update firmware
  • Fiber Loopback mode. (On/Off)
  • Upload/download configuration
Detailed port statistics To assist in troubleshooting copper and fiber links, an extensive list of ingress and egress counters for both copper and fiber ports are available. These statistics can be viewed locally via the management module or from a central SNMP NMS on the network
Auto-Negotiation (802.3u) The media converter supports auto negotiation on the 10/100Base-TX interface.
Link Pass-Through With Link Pass-Through the state of the UTP receiver is passed to the fiber transmitter to make the media converter appear transparent to the end devices that are connected. In addition if Far-End Fault is enabled the media converter can turn off the 10/100Base-TX transmitter when a FAR-End Fault is received.

Using Link Pass-Through with Far-End Fault minimizes data loss when a fault occurs. Should a fault occur, the end devices have the indication of a failure available to them making trouble shooting easier.
Far-End Fault (FEF) The media converter implements the 802.3 standard for Far-End Fault for the indication and detection of remote fault conditions on the 100Base-X fiber connection. With Far-End Fault enabled the media converter transmits the Far-End Fault Indication over the 100Base-X fiber connection whenever a receive failure is detected on the 100Base-X fiber connection. The media converter continuously monitors the100Base-X fiber connection for a valid signal.

The action the media converter takes on receiving a Far-End Fault Indication is dependent on the Link Pass-Through switch setting.
Pause (IEEE 802.3xy) Pause signaling is an IEEE feature that temporarily suspends data transmission between two devices in the event that one of the devices becomes overwhelmed. The media converter supports pause negotiation on the 10/100Base-TX copper connection.
Remote Loopback The media converter is capable of performing a loopback on the fiber port.

SMI-110 Advanced Management Features

Enterprise and carrier-grade security is available through the support of strong authentication systems such as TACACS+, RADIUS and LDAP. Secure in-band access is assured via SNMPv3, SSH CLI and secure HTTPS Internet browser.

SNMP
  • Full read/write capabilities via central SNMP servers and PerleVIEW
  • Send SNMP traps ( up to 4 servers )
  • SNMPv3, V2C and V1
  • SNMPv3 – encryption and authentication for both management and trap support
  • RFC1213 MIB II
  • Proprietary MIB provided
Telnet / SSH CLI access In-band command line access via Telnet or SSH application
Internet Browser access
Console port CLI access Out-of-band command line access via Cisco compatible RJ45 serial console port using common “rolled” CAT5 cable.
Console port can be enabled ( default ) or disabled
Concurrent management sessions Run multiple management sessions simultaneously for multiple users
Inactivity timeout Protect secure management sessions by setting an inactivity timeout value
Alert event reporting Alert level events are stored in the local event log and sent as:
  • SNMP traps to up to 4 servers
  • SYSLOG messages to a SYSLOG server
  • Email to user defined email address
Advanced IP feature set
  • IPV4 and IPV6 address support
  • DHCP
  • DNS
  • Dynamic DNS
  • NTP
  • TFTP
  • Telnet
  • SSH V2 and V1
  • HTTP
  • HTTPS
Advanced Management User Authentication with primary and secondary server support
  • TACACS+
  • RADIUS
  • LDAP
  • Active Directory via LDAP
  • RSA Secure ID-agent or via RADIUS authentification
  • Kerberos
  • NIS
Advanced Management User Authorization and Accounting
  • TACACS+
  • RADIUS
Encryption
  • AES (256/192/128), 3DES, DES, Blowfish, CAST128, ARCFOUR(RC4), ARCTWO(RC2)
  • Hashing Algorithms: MD5, SHA-1, RIPEMD160, SHA1-96, and MD5-96
  • Key exchange: RSA, EDH-RSA, EDH-DSS, ADH
  • X.509 Certificate verification: RSA, DSA
Access Control List An access control list can be created which can filter out only those workstations that are authorized to access the management resources. Filter on IP and/or Ethernet MAC addresses
Network Services Filter Enable only those network services on the management module that are allowed on your network ( Telnet, SSH, HTTP, HTTPS, SNMP )
Firmware download Update the latest level firmware for management and media converter modules via TFTP or PerleVIEW
Media Converter Module Indicators
Power / TST This green LED is turned on when power is applied to the media converter. Otherwise it is off. The LED will blink when in Loopback test mode.
Fiber link on / Receive activity (LKF) This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is on and flashes with a 50% duty cycle when data is received.
Copper link on / Receive activity (LKC) This green LED is operational only when power is applied. The LED is on when the 100Base-TX link is on and flashes with a 50% duty cycle when data is received.
Fiber Duplex (FDF) This green LED is operational only when power is applied. The LED is on when the 100Base-FX link is operatinal in full duplex mode. The LED is off when in half duplex.
Copper Duplex (FDC) This green LED is operational only when power is applied. The LED is on when the 10/100Base-TX link is operatinal in full duplex mode. The LED is off when in half duplex.
10/100 Speed This green LED is operational only when power is applied. The LED is on when the speed of the copper Ethernet port is running at 100 MBPS. The LED is off when in 10 MBPS
Management Module Indicators / reset
Power Blinking green during startup cycle
Steady green: module has power and is ready
Red : error
ALM Red alarm indicator activated when an alert event occurs
LKC Green indicator indicating an active Ethernet link. Blinking indicates RX and TX of data
100/1000 Green - 1000 Mbps link
Yellow - 100 Mbps link
Off - 10 Mbps or no Link
Reset button Recessed pinhole button resets module
Connectors
100Base-TX RJ45 connector, 2 pair CAT 5, EIA/TIA 568A/B or better cable

Magnetic Isolation - 1.5kv
Fiber Optic Cable

Single mode dual LC Media Converters

Multimode: 62.5 / 125, 50/125, 85/125, 100/140 micron

Single Mode: 9/125 micron (ITU-T 625)
Management ethernet port 10/100/1000Base-T - RJ45

Auto- MDI/MDIX
Management console port RS232 Serial RJ45 - Cisco pinout for use with standard CAT5 "rolled cable" (crossover) 9600 to 115k bps 7/8 bits Odd,even, no parity 1/2 stop bits Hardware/software flow control DCD/DSR monitoring
Filtering
Filtering 1024 MAC Addresses
Frame Specifications
Buffer 512 Kbits frame buffer memory
Size Maximum frame size of 2048 bytes
Switches - accessible through a side opening in the chassis
Auto-Negotiation (802.3u) Enabled (Default) - The media converter uses 802.3u Auto-negotiation on the 100Base-TX interface. It is set to advertise full duplex.

Disabled - The media converter sets the port according to the position of the speed and duplex switches.
Link Pass Through Enabled (Default) - When the state of the receiver is changed on the 100Base-TX interface it is reflected on the 100Base-FX fiber transmitter. When the state of the receiver on the 100Base-FX interface is changed it is reflected on the 100Base-TX transmitter.

When a Far-End Fault Indication is received on the fiber interface the 100Base-TX transmitter is turned off. When the Far-End Fault Indication is cleared the transmitter is turned back on.

Disabled - The 100Base-TX and the 100Base-FX fiber interface operate independently. Far-End Fault indication on the 100Base-FX fiber interface has no effect on the 100Base-TX interface.
Far-End Fault (FEF) Enabled (Default) - The media converter transmits the Far-End Fault Indication over the 100Base-X fiber connection whenever a receive failure is detected on the 100Base-X fiber connection. The media converter continuously monitors the100Base-X fiber connection and clears the Far-End Fault Indication condition when a valid signal is received.

Disabled - Far-End Fault Indications are not transmitted regardless of the condition of the receive signal on the 100Base-FX fiber connection.
Remote Loopback The media converter can perform a loopback on the 100Base-X fiber interface.

Disabled (Default - Up)

Enabled - The 100Base-X receiver is looped to the 100Base-X transmitter. The 100Base-TX transmitter is taken off the interface.
Auto-MDIX (Strap) If Auto-Negotiation (802.3u) is enabled, the media converter uses the HP Auto-MDIX method for the 100Base-TX interface. If Auto-Negotiation (802.3u) is disabled the Media converter will use the RX Energy method on the 100Base-TX interface to set the port MDI or MDIX whichever is appropriate.

Enabled (Default) - Either a straight-through or crossover type cable can be used to connect the media converter to the device on the other end of the cable.

Disabled - If the partner device on the other end of the cable does not have the Auto-MDIX feature a specific cable, either a straight-through or crossover will be required to ensure that the media converter's transmitter and the partner devices transmitter are connected to the others receiver. The Media converter's 100Base-TX port is configured as MDI-X with this switch setting.
Speed Copper 100 (Default)
10
Duplex Copper Full (Default)
Half
Duplex Fiber Full (Default)
Half
Power
Input Supply Voltage ( 12 vDC Nominal )
Current 0.34amps at 12vdc
Power Consumption 4.1watts
Power Connector 5.5mm x 9.5mm x 2.1mm barrel socket
Power Adapter
Universal AC/DC adapter 100-240v AC, regulated DC adapter included
Environmental Specifications
Operating Temperature 0 C to 50 C (32 F to 122 F)
Storage Temperature minimum range of -25 C to 70 C (-13 F to 158 F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Heat Output
( BTU/HR )		 14
MTBF (Hours)* 246,403 without power adaptor
168,829 with power adaptor
Mounting
Din Rail Kit Optional
Rack Mount Kit Optional
Product Weight and Dimensions
Weight 0.722 kg
Dimentions 175 x 145 x 23 mm
Packaging
Shipping Weight 1.2 kg
Shipping Dimentions 300 x 200 x 70 mm
Regulatory Approvals
Emissions FCC Part 15 Class B**, EN55022 Class B**
CISPR 22 Class B**
EN61000-3-2
Immunity EN55024
Electrical Safety UL 60950-1
EN60950
CE
Laser Safety EN 60825-1:2007
Fiber optic transmitters on this device meet Class 1 Laser safety requirements per IEC-60825 FDA/CDRH standards and comply with 21CFR1040.10 and 21CFR1040.11.
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A992A
HTSUS Number: 8517.62.0050
Perle Limited Lifetime Warranty
