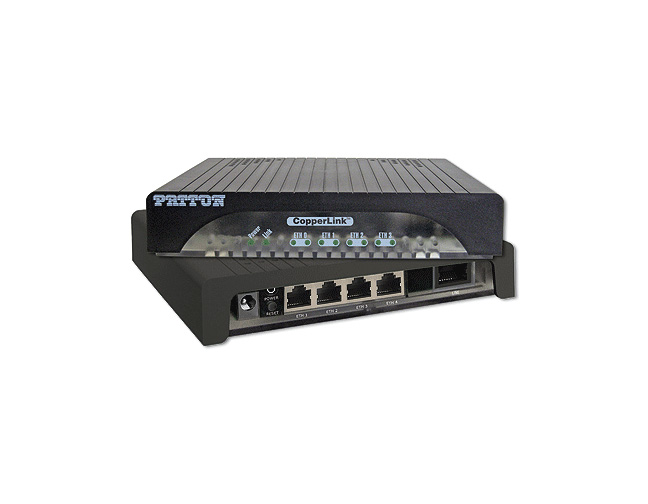

CL1314/EUI-2PK - Long Range CopperLink Ethernet Extender Kit (Local and Remote); 4 x10/100; 100-240VAC
by PATTON
|
|
|
|
- High Speed Extension—Realize symmetrical line rates of over 30 Mbps..
- Multi-rate Selection—Just plug the units in and select the ideal user-configurable rate for your application.
- Ethernet over 2 or 4 Wires—Easy 2 or 4 wire (1 to 2 twisted pairs) connection via an RJ45 port. The additional pair offers additional bandwidth and failover.
- Built-in 4-port Ethernet Switch—Connect up to four Ethernet devices using the integrated 4 X 10/100Base-T, auto-sensing, full/half-duplex Ethernet switch.
- Transparent LAN Bridging—Transparently pass higher-layer protocols with support for 802.1Q VLAN tagging.
- Automatic Learning, Aging, and Filtering—Keeps local traffic local, ensuring efficient utilization of the long-range link.
- Made in the USA — This Patton equipment is designed by Patton engineers and built in our Gaithersburg, Maryland facility. Patton's American-made manufacturing process delivers high-quality networking solutions with reliability you can trust.
|
|
|
The Patton Model CL1314-EUI-2PK CopperLink Ethernet Extenders leverage existing copper twisted-pair infrastructure to interconnect Ethernet devices and networks at high speeds over long distances.
Patton’s CopperLink Ethernet Extenders ensure hassle-free set-up and operation, while achieving the highest possible line rate for the required distance and electromagnetic environment. Users can let the modems select the best acheivable rate or they can “hard-set” the desired line rate via DIP switches, console Telnet or HTTP.
The CL1314 comes with a built-in four-port, auto-sensing, 10/100Base-TX Ethernet switch that provides automatic medium-dependent interface crossover capability (auto-MDIX). That means you can use cross-over or straight-through cables (whichever is handy) to connect up to four Ethernet devices. The auto-MDIX feature detects the polarity of the cabling on each port, and automatically configures the signaling to match. Absolutely no user-configuration is required.
The CL1314 transparently passes all higher-layer protocols—including VLAN tagging, multicast addressing, VPN pass-through for IPsec, and all IP-video compression schemes. All common industrial protocols are also transparently supported, including MODBUS/TCP and PROFINET IO.
Set-up is easy! Simply connect up to four LAN devices to the Ethernet switch, plug the copper twisted-pair into each extender, and apply power! For simple, cost-effective and efficient Ethernet extension, Patton's CopperLink Ethernet Extenders are the ideal solution!
| Protocol |
Transparent to higher layer protocols |
| Transmission Line |
CL1314—Single Twisted Pair (2 wire)
CL1324—Two Twisted Pair (4 wire) |
| Line Rates |
Rates from 192 kbps to 15.3 Mbps, selectable in all 64 kbps increments starting at 192 kbps |
| Front Panel LED Status Indicators |
WAN: Link, LAN (Ethernet): Link/Act, Power |
| Line Coding |
TC-PAM 16 rates up to 2.3 Mbps
TC-PAM 32 rates up to 5.7 Mbps
TC-PAM 64 rates up to 11.4 Mbps
TC-PAM 128 rates up to 15.3 Mbps |
| Connectors |
RJ-45 on copper line side and 4 x 10/100 Ethernet, shrouded male IEC320 power connector |
| Line Interface |
Transformer coupled, 1500 VAC isolation |
| Management |
DIP switch, CLI (Telnet, SSH, Console Port), TFTP firmware upgrade, Import/export config, HTTP, Patton Cloud, restAPI
|
| MTBF |
4.7 years |
| Power |
External 90–260 VAC, 50–60 Hz (Universal Input) |
| Power Consumption |
0.8A@5V |
| Operating Temp. |
32 to 122°F (0 to 50°C) |
| Humidity |
5 to 95%, non-condensing |
| Altitude |
0 to 15,000 ft (0 to 4,600 m) |
| Dimensions |
4.7 x 1.52 x 5.00 in. (106 x 390 x 127 mm) |
| Weight |
2.0 lbs (1.0 kg) |
| Compliance |
FCC Part 15A, CE Mark per EMC directive 89/336/EEC and Low Voltage Directive 73/23/EEC |
|
