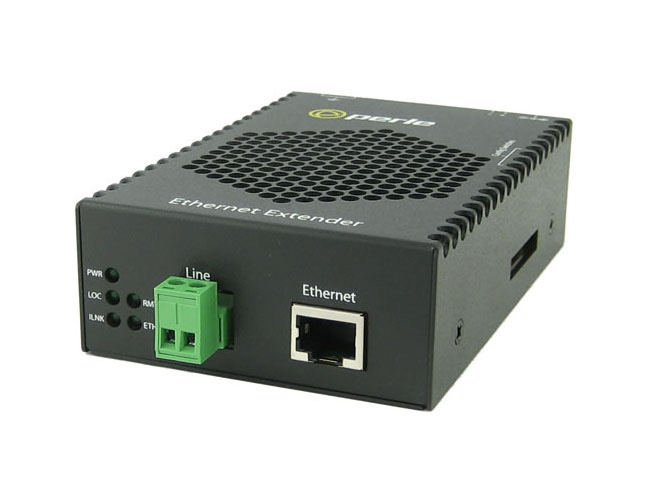

06003670 eX-1S1110-TB-XT - Gigabit Industrial Temperature Ethernet Extender - 1 port 10/100/1000Base-T (RJ-45) . 2-pin Terminal by PERLE

06003670 eX-1S1110-TB-XT - Gigabit Industrial Temperature Ethernet Extender - 1 port 10/100/1000Base-T (RJ-45) . 2-pin Terminal

Write a review Write a review
06003670 eX-1S1110-TB-XT - Gigabit Industrial Temperature Ethernet Extender - 1 port 10/100/1000Base-T (RJ-45) . 2-pin Terminal Block Interlink ( VDSL2 ) connector
Mfg SKU # : 06003670
Our Price : $865.00
Stock :Call for Availability
Quantity :

When you need to extend Ethernet services beyond the general IEEE 802.3 limits of 328ft / 100m in extreme temperatures, and new fiber cabling is cost prohibitive, Ethernet Extenders are the perfect solution. Perle Ethernet Extenderstransparently extend up to four 10/100/1000 Ethernet connections across copper wiring. Use single twisted pair ( CAT5/6/7 ) or any existing copper wiring previously used in alarm circuits, E1/T1 circuits, RS-232, RS-422, RS-485, CCTV and CATV applications.

Equipment found in traffic management, oil and gas pipelines, weather tracking, industrial and outdoor applicationsmust function in temperatures that cannot be supported by a commercial based Ethernet Extender. With the ability to operate in industrial grade temperatures of -40F to +167F (-40C to +75C) along with a rugged steel casing, these simple and effective point to point Ethernet Copper Extenders are ideal to extend the distance between two industrial Ethernet devices subjected to harsh environments and severe temperatures such as security cameras, wireless access points, alarms, traffic controllers, sensors and tracking devices.

Perle’s advanced features such as Link Pass-Through*, Interlink Fault Feedback*, and Loopback allow Network administrators to “see everything” for more efficient troubleshooting and less on-site maintenance. These cost and time saving features, along with a lifetime warranty and free worldwide technical support, make Perle Ethernet Extenders the smart choice for IT professionals. eX-S1110 Ethernet Extenders are also available with support for Commercial Temperature ranges, managed networks with AAA security and high density applications.

eX-S1110-XT Gigabit Ethernet Extender Features

Extend Ethernet over twisted pair Extend an Ethernet link over category 5e, 6 and 7 cabling up to 10,000 feet ( 3 km )
Extend Ethernet over Coaxial cable Extend an Ethernet link over 75 ohm coaxial cable
Hi-Speed Performance Utilizes second generation VDSL2 technology ( ITU-T Recommendation G.993. ) . When operating under “Profile 30a”, Perle Ethernet extenders can provide an aggregate VDSL line rate capability of over 200 mbps.

Actual distance and performance may vary depending on the type / gauge and condition of the wire used.
Plug and Play operation Perle Ethernet Extenders will automatically configure your VDSL interlink connection. The CO/CPE peer association will be determined automatically by the Ethernet Extender. No need to set CO / CPE VDSL pairing.

Once a connection is made, both ends will automatically adjust relevant VDSL parameters to optimize the level of bandwidth possible across the copper link.
Link Pass-Through* With Link Pass-Through the state of the 10/100/1000Base-T Ethernet connection is “passed through” the VDSL link to the 10/100/1000Base-T Ethernet connection on its remote peer. A managed switch on the remote end can then report the state (link up or link down) to its network management system so that any errors can be detected and recovered early.

Competitive Ethernet extenders without this feature will never detect or report any error conditions.
Interlink Fault Feedback* Similar to the Link Pass-Through feature, a loss of VDSL link will drop the 10/100/1000 Ethernet ports on each end until the link recovers.
Auto-Negotiation The Ethernet Extender supports auto negotiation on the 10/100/1000Base-T interface.
Auto-MDIX Auto-MDIX (Automatic Medium-Dependent Interface crossover) detects the signaling on the 10/100/1000 Ethernet RJ45 interface and determines the type of cable connected (straight-through or crossover) and automatically adopts a compatible pinout.
Fixed Speed and Duplex Some Ethernet equipment require a fixed speed and duplex be used or cannot auto-negotiate. By disabling Auto-Negotiation on the Ethernet Extender, a fixed speed of 10, 100 or 1000 mbps as well as Full or half Duplex can be configured through DIP switches.
VLAN Transparent to tagged VLAN ( 802.1Q ) packets.
Transparent to IP Video compression protocols Fully transparent to such IP video compression schemes such as MPEG-4, H.264 and MJPEG.
Power Strain Relief strap A strain relief strap is provided to ensure a solid and secure power connection to the Ethernet Extender. Ideal for areas that may be exposed to vibration.
Loopback When enabled, will perform a loopback on the copper VDSL Interlink.
Ethernet eX-1S1110-XT
Port 1 port RJ45 – 10/100/1000Base-T - Shielded
Auto-MDIX Auto-MDIX enables proper operation with either straight-through or crossover cabling
Distance Distance up to 100 meters ( 328 feet ) as per IEEE 802.3
Maximum Frame Size 1522 bytes
VDSL – Interlink
RJ45, BNC, Terminal Block TIP and RING are polarity insensitive. Surge suppresion of 400 volts between TIP and RING
Choice of RJ45, BNC or terminal block models for VDSL link connector
  • RJ45 – RING pin 4, TIP pin 5 (TIA 568 A/B)
  • BNC – Coaxial 75 ohm cable with BNC connector
  • Terminal Block – 2 position screw connectors for use with twisted pair telephone cabling
Cabling Ethernet Extenders must be connected in pairs using unconditioned wire between 19 ( 0.9 mm ) and 26 AWG ( 0.44 mm ). Circuits that run through signal equalization equipment are not permitted.
VDSL2 Line Rate/Reach Actual distance and rates experienced will depend on condition and guage of wire used. This Rate/Reach table applies to 24 AWG ( 0.5 MM ) twisted pair wiring on RJ45 (RJ) and terminal block (TB) models.

High Speed Asymmetric
Reach ( Distance ) VDSL Rate ( Mbps )
feet meters Downstream Upstream
500 152 101 92
1000 305 101 63
1500 457 90 38
2000 610 62 24
2500 762 55 10
3000 914 42 5
3500 1000 35 3
High Speed Symmetric
Reach ( Distance ) VDSL Rate ( Mbps )
feet meters Downstream Upstream
500 152 101 101
1000 305 85 101
1500 457 62 47
2000 610 60 29
2500 762 44 14
3000 914 30 7
3500 1000 29 4
Long Reach Symmetric
Reach ( Distance ) VDSL Rate ( Mbps )
feet meters Downstream Upstream
500 152 53 44
1000 305 53 43
2500 762 39 18
4000 1219 25 4
5500 1676 17 1.9
7000 2134 8 2.3
7500 2286 7 2.2
8000 2438 5 2.2
Long Reach Asymmetric
Reach ( Distance ) VDSL Rate ( Mbps )
feet meters Downstream Upstream
500 152 78 16
1000 305 78 16
2500 762 55 10
4000 1219 31 0.8
5500 1676 20 0.6
7000 2134 11 0.6
7500 2286 10 0.6
8000 2438 8 0.6
Power eX-1S1110-XT
Input Supply Voltage 9 - 30 vDC, unregulated ( 12 vDC Nominal )
Current 350 mA
Power Consumption (watts) 4.2
Power Connectors 5.5mm x 9.5mm x 2.1mm barrel socket and 2 pin terminal Block
Power Adapter
Universal AC/DC adapter Optional Industrial Temperature 100-240v AC, regulated 12V DC adapter
Power / TST This green LED is turned on when power is applied to the Ethernet Extender. Otherwise it is off. The LED will blink when in Loopback test mode.
CO - Local Ethernet Extender is operating in CO VDSL mode
CPE - remote Ethernet Extender is operating in CPE VDSL mode
ILNK Indicates Link Status and activity on the Interlink (VDSL) port
ETH Indicates link status and activity on Ethernet port(s).
Switches eX-1S1110-XT
Access All switch settings are accessible through a side opening in the chassis
Rate/Reach Two switches enable the user to select the right balance between speed and distance for their environment.
Signal to Noise Ratio Selectable Signal to Noise Ratio (SNR) of 6dB or 9dB. The higher SNR number provides better impulse noise protection but lowers performance.
Auto-Negotiation (802.3u) Enabled (Default) - The Ethernet Extender uses 802.3u Auto-negotiation on the 10/100/1000Base-T interface. It is set to advertise full duplex.

Disabled - The Ethernet Extender sets the port according to the position of the speed and duplex switches.

Link Mode Standard (Default) – The 10/100/1000Base-T link remains active independent of the state of the Ethernet link on its remote peer.

Link Pass-Through- the state of the 10/100/1000Base-T Ethernet connection is “passed through” or propagated across the VDSL link to the 10/100/1000Base-T Ethernet link on its remote Ethernet Extender peer. This enables a managed switch to report the state of the remote device to its network management system.

Interlink Fault Feedback Enabled - A loss of VDSL link will drop the 10/100/1000 Ethernet port on each end until the link recovers

Disabled ( Default ) – The state of the VDSL link is not propagated to the 10/100/1000Base-T port

Loopback Enabled - The VDSL interlink will perform a loopback function, retransmitting all received Ethernet frames back to its peer.

Disabled (Default - Up)

Set Ethernet Speed
(Port 1)
When Auto-Negotiation switch is disabled, fixed speed can be set at 1000 (Default) or 100 or 10
Set Ethernet Duplex
(Port 1)
When Auto-Negotiation switch is disabled, Duplex can be set at Full (Default) or Half
Environmental Specifications eX-1S1110-XT
Operating Temperature -40 C to 75 C (-40 F to 167 F)
Storage Temperature minimum range of -40 C to 85 C (-40 F to 185 F)
Operating Humidity 5% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
Heat Output ( BTU/HR ) 14.3
MTBF (Hours)** 466,861
Din Rail Kit Optional
Rack Mount Kit Optional
Product Weight and Dimensions
Weight 0.33 kg, 0.73 lbs
Dimensions 120 x 80 x 35 mm, 4.7 x 3.1 x 1.4 inches
Shipping Weight 0.46 kg, 1.01 lbs
Shipping Dimensions 170 x 260 x 70 mm, 6.7 x 10.2 x 2.8 inches
Regulatory Approvals
Emissions FCC Part 15 Class A, EN55022 Class A
CISPR 22 Class A
Immunity EN55024
Electrical Safety UL 60950-1
Environmental Reach, RoHS and WEEE Compliant
Other ECCN: 5A991A
HTSUS Number: 8517.62.0050
Perle Lifetime warranty
