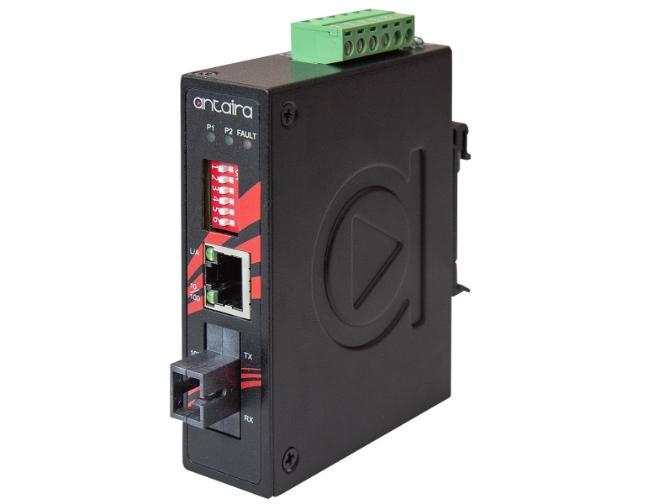

Antaira IMC-C100-WB-M - Compact 10/100TX To 100FX Industrial Media Converter, Single Strand Multi-Mode 2KM, SC ConnectorTx:1550n
by ANTAIRA
|
|
|
|
IMC-C100-WB-M_SUMMARY.html
-
1*10/100Tx Fast Ethernet
-
1*100Fx SC/ST Connector (Multi / Single-Mode)
-
RJ45 Port Support Auto MDI / MDI-X Function
-
Auto Negotiation Speed, Half / Full Duplex
-
Store-and-Forward Switching Architecture
-
Built-in Link Fault Pass Through (LFP)
-
Built-in Far End Fault (FEF)
-
Wide-Range Redundant Power Design
-
Redundant Power Input: 12~48VDC
-
Power Polarity Reverse Protection
-
Overload Current Protection
-
DIN-Rail or Wall Mountable
-
IP30 Protection
|
|
|
IMC-C100-WB-M_DESCRIPTION.html
Antaira Technologies™ IMC-C100-WB-M is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on model. There are models that support Multi-Mode and Single-Mode to support applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilitiesThe IMC-C1000 series has a built-in "Link Fault Pass Through" (LFP) and "Far End Fault" (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides operating temperature range models in STD: -10C to 70C.
|
|
|
|
