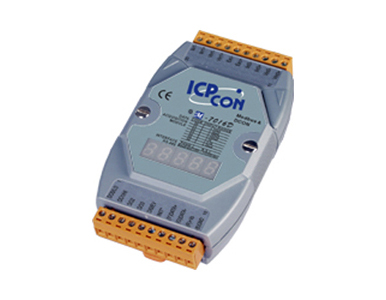

ICP DAS M-7016D - 2-channel Strain Gauge Voltage Input & Current Input Data Acquisition Module communicable over Modbus RTU and
by ICP DAS
|
|
|
|
2-channel Strain Gauge Voltage Input & Current Input Data Acquisition Module
communicable over Modbus RTU and RS-485 with LED display. With Analog Input,
Voltage Output, Digital Input, and Digital Output. Supports operating
temperatures between -25 to 75°C.
|
|
|
The M-7016 series are the latest strain gauge input modules from ICP DAS.
Around our surroundings, there are numerous examples of converting force into a
measurable electrical output. In most cases, we need a strain gauge type load
cell. How are we going to do to make the most use of the electrical output?

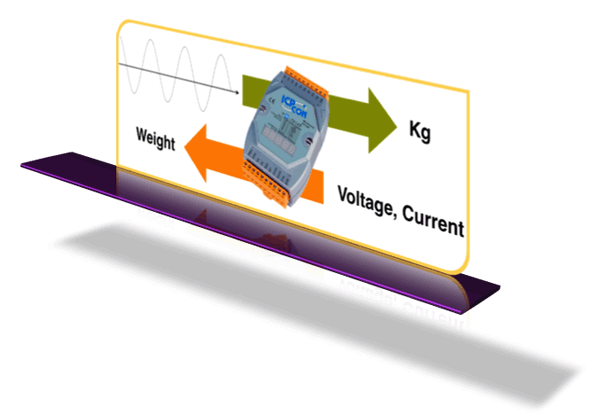

The M-7016 series are definitely your #1 choice! The M-7016 series not only
process the data from load cells or strain gauges, but also do linear mapping at
the same time for intuitive results; by user-defined corespondent table, the
M-7016 series convert the data into weight directly!
In the new models, the M-7016 series support both Modbus RTU & DCON
protocols.
- 2 Analog Input Channels
- Input Types & Ranges:
- ±15mV
- ±50mV
- ±100mV
- ± 500mV
- ±1V
- ± 2.5V
- ± 20mA
- Sampling Rate
|
Mode |
1 Channel |
2 Channels |
Sampling Rate
samples/sec |
10 |
2 |
- Linear Mapping
- Excitation Voltage Output : 0 ~ 10V
- Digital Input : 1 channel; this channel can also be used as a counter.
- Digital Output : 4 channel; support High/Low alarm output.
- 4 1/2 digits LED display : For the M-7016D only.
- Operating temperature: -25°C to 75°C
- Support both Modbus RTU and DCON protocols.
|
Analog Input |
|
Input Channels |
6 |
|
Input Type |
RTD |
|
Wire connection |
2/3 wire |
|
RTD Type |
Pt100, Pt1000, Ni120, Cu100, Cu1000 |
|
Resolution |
16-bit |
|
Sampling Rate |
12 samples/ second (Total) |
|
Accuracy |
+/-0.05% |
|
-3dB BandWidth |
5.24Hz |
|
Zero drift |
+/-20uV/°C |
|
Span drift |
+/-25ppm/°C |
|
Common Mode Rejection |
Typical 86dB |
|
Normal Mode Rejection |
100 dB |
|
Voltage Input Impedance |
>1M Ohms |
|
Open Wire Detection |
Yes |
|
Individual Channel Configurable |
Yes |
|
3-wire RTD lead resistance elimination |
Yes |
|
ESD Protection |
4KV Contact for each terminal, and 8KV Air for random point |
|
EFT Protection |
4KV to Power, and 1KV to RS-485 |
|
Intra-module Isolation, Field to Logic |
3000 VDC |
|
Interface |
|
Interface |
Modbus RTU, RS-485 |
|
Format |
N, 8, 1 |
|
Baud Rate |
1200 ~ 115200bps |
|
LED Display |
|
1 LED as Power/ Communication indicator |
|
Power |
|
Input |
+10 to +30 Vdc |
|
Power Consumption |
1.2W |
|
Protocol |
|
Support Modbus and DCON Protoco |
Yes |
|
Watchdog |
Yes, Module, Communication (Programmable over DCON) frmware version B202
and later |
|
Environment |
|
Operating temperature |
-25 to 75°C |
|
Storage temperature |
-40 to 85°C |
|
Humidity |
5 to 95% RH, non-condensing |
RTD Type Setting
|
Type Code |
RTD Type |
Temperature Range °C |
|
20 |
Platinum 100, α=
0.00385 |
-100 ~ 100 |
|
21 |
Platinum 100, α=
0.00385 |
0 ~ 100 |
|
22 |
Platinum 100, α=
0.00385 |
0 ~ 200 |
|
23 |
Platinum 100, α=
0.00385 |
0 ~ 600 |
|
24 |
Platinum 100, α=
0.003916 |
-100 ~ 100 |
|
25 |
Platinum 100, α=
0.003916 |
0 ~ 100 |
|
26 |
Platinum 100, α=
0.003916 |
0 ~ 200 |
|
27 |
Platinum 100, α=
0.003916 |
0 ~ 600 |
|
28 |
Nickel 120 |
-80 ~ 100 |
|
29 |
Nickel 120 |
0 ~ 100 |
|
2A |
Platinum 1000, α=
0.00385 |
-200 ~ 600 |
|
2B |
Cu 100 at 0°C,α=
0.00421 |
-20 ~ 150 |
|
2C |
Cu 100 at 25°C,α=
0.00427 |
0 ~ 200 |
|
2D |
Cu 1000 at 0°C,α=
0.00421 |
-20 ~ 150 |
|
2E |
Platinum 100, α=
0.00385 |
-200 ~ 200 |
|
2F |
Platinum 100, α=
0.003916 |
-200 ~ 200 |
|
80 |
Platinum 100, α=
0.00385 |
-200 ~ 600 |
|
81 |
Platinum 100, α=
0.003916 |
-200 ~ 600 |
|
82 |
Cu 50 at 0°C |
-50 ~ 150 |
|
83 |
Nickel 100 |
-60 ~ 180 |
|
|
|
|
