M-1600 - I/O Module, 16DI, Sink, 24VDC, 20pin
by MOXA
|
|
|
|
I/O Module, 16DI, Sink, 24VDC, 20pin
|
|
|
I/O Module, 16DI, Sink, 24VDC, 20pin
| Digital Inputs |
16 channels, sink type |
| On-state Voltage |
24 VDC nominal, min. 11 VDC to max. 28.8 VDC |
| Min. Off-state Voltage |
Max. 5 VDC |
| On-state Current |
Max. 6 mA/point @ 28.8 VDC |
| Input Impedance |
Typ. 5.1K ohms |
| Filtering Time |
Typ. 1.5 ms |
| Common Type |

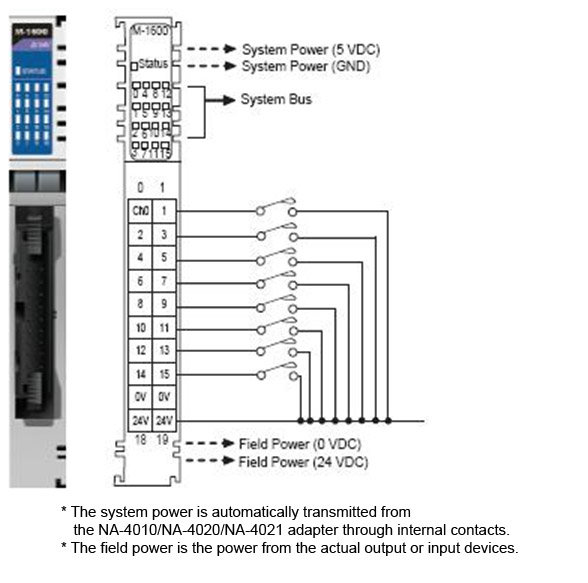

16 channels for 2 COMs (single common) |
| Power Consumption |
40 mA @ 5 VDC |
|
|
|
|
