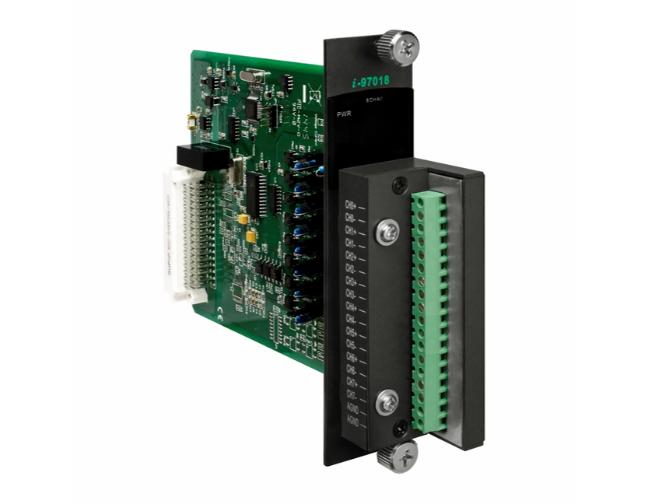

ICP DAS I-97018/S - 8-channel Thermocouple Input Module with CN-1824M Daughter Board. For use with WP-9000, XP-9000, LX-9000 an
by ICP DAS
|
|
|
|
I-97018_S_SUMMARY.html
- 8-channel Analog Input
- Current, Voltage and Thermocouple Input
- Individual Channel Configuration
- Open Thermocouple Detection
- Temperature Output Consistency
- Stable Temperature Output in the Field
- 240 Vrms Overvoltage Protection
- 4 kV ESD Protection
- Dual Watchdog
- 3000 VDC Intra-module Isolation, Field-to-Logic
- Wide Operating Temperature Range: -25 to +75C
|
|
|
I-97018_S_DESCRIPTION.html
I-97018/S - 8-channel Thermocouple Input Module with CN-1824M Daughter Board. For use with WP-9000, XP-9000, LX-9000 and LP-9000 Series PAC Controllers. Supports Operating Temperatures -25°C ~ +75°C.
I-97018_S.html
|
Interface
|
RS-485
|
|
Format
|
N, 8, 1
|
|
Baud Rate
|
1200 ~ 115200 bps
|
|
Protocol
|
DCON
|
|
Dual Watchdog
|
Yes, Module (1.6 Seconds), Communication (Programmable)
|
|
System LED Indictor
|
1 LED as Power Indicator
|
|
I/O LED Indicator
|
-
|
|
Intra-module Isolation, Field-to-Logic
|
3000 VDC
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for each Terminal
±8 kV Air for Random Point
|
|
Power Consumption
|
0.6 W Max.
|
|
Dimensions (L x W x H)
|
144 mm x 30.3 mm x 134 mm
|
|
Operating Temperature
|
-25C ~ +75C
|
|
Storage Temperature
|
-40C ~ +85C
|
|
Humidity
|
10 ~ 90% RH, non-condensing
|
I/O Specifications
|
Channels
|
8
|
|
Wiring
|
Differential
|
|
Sensor Type
|
Thermocouple
|
J, K, T, E, R, S, B, N, C, L, M, LDIN43710
|
|
Voltage
|
±15 mV, ±50 mV, ±100 mV, ±500 mV, ±1 V, ±2.5 V
|
|
Current
|
±20 mA, 0 ~ 20 mA, 4 ~ 20 mA
|
|
Accuracy
|
±0.1% of FSR
|
|
Resolution
|
16-bit
|
|
Sampling Rate
|
10 Hz (Total)
|
|
Input Impedance
|
> 400 kΩ
|
|
Common Voltage Protection
|
±200 VDC
|
|
Individual Channel Configuration
|
Yes
|
|
Overvoltage Protection
|
240 Vrms
|
|
Open Wire Detection (for thermocouple only)
|
Yes
|
|
Temperature Output Consistency
|
Yes
|
|
Stable Temperature Output in the Field
|
Yes
|
|
|
|
|
