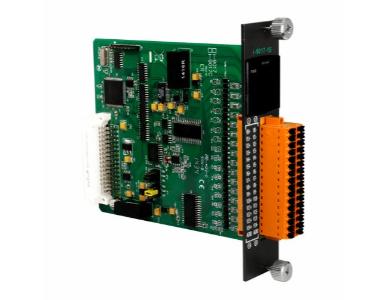

I-9017-15 - 14-bit, 100 K sampling rate, 30/15-channel analog input module (RoHS) by ICP DAS
|
|
|
I-9017-15_SUMMARY.html
- I-9017-15
- 30 Single-ended/15 Differential Input Channels (jumper selectable)
- Input Range: ±1.25 V, ±2.5 V, ±5 V, ±10 V, ±20 mA
- I-9017C-15
- 15 Differential Input Channels
- Input Range: ±20mA
- 14-bit 100 KHz AD Converter
- A/D Trigger Mode: Polling, Interrupt
- 4 kV ESD Protection
- Wide Operating Temperature Range: -25 to +75C
|
|
|
I-9017-15_DESCRIPTION.html
The I-9017-15 is a high performance Analog Input module with 14 bits of resolution and a sampling rate of up to 100 kS/s. The I-9017-15 provides up to 30 single-ended or 15 differential input channels, which is selectable via a jumper setting. The I-9017-15 have qualification for 4 kV ESD protection as well as 2500 Vrms intra-module isolation
I-9017-15.html
I/O Specifications
Channels
|
30-ch Single-ended/15-ch Differential
|
Voltage Input Range
|
±1.25, ±2.5, ±5 V, ±10 V
|
Current Input Range
|
-20 mA ~ +20 mA(Requires Optional External 125 ? Resistor)
|
Resolution
|
14-bit
|
Accuracy
|
±0.1% of FSR
|
Sample Rate
|
Single Channel Polling Mode :100K S/sSingle Channel Interrupt Mode: 50K S/s15-channel Scan Mode : 16
K S/s
|
Input Bandwidth
|
100 KHz
|
Zero Drift
|
± 0.1 uV/C
|
Span Drift
|
± 10 ppm/C
|
Input Impedance
|
20K, 200K, 20M (Jumper Selectable)
|
System Specifications
System LED Indict
|
1 LED as Power Indicator
|
I/O LED Indicator
|
-
|
Intra-module Isolation, Field-to-Logic
|
2500 Vrms
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for each Terminal ±8 kV Air for Random Point
|
Power Consumption
|
2 W Max.
|
Dimensions (L x W x H)
|
144 mm x 30.3 mm x 134 mm
|
Operating Temperature
|
-25 ~ +75C
|
Storage Temperature
|
-40 ~ +85C
|
Humidity
|
10 ~ 90% RH, non-condensing
|
|
