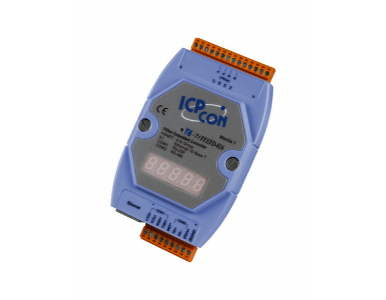

I-7188EFD-016 - FRnet Equipped Embedded Ethernet Controller for use with High Speed Digital Data Acquisition, with Display with
by ICP DAS

I-7188EFD-016 - FRnet Equipped Embedded Ethernet Controller for use with High Speed Digital Data Acquisition, with Display with 40 Mhz CPU. MiniOS7 Operating System. Supports operating temperatures between -25 to 75°C.

System
CPU	80188-40 or compatible
EEPROM	2048 bytes (8 blocks, each block contains 256 bytes) Data retention > 100 years 1,000,000 erase/write cycle
SRAM	512Kb
FLASH ROM	512Kb Erase unit is one sector (64Kb) 100,000 erase/write cycles
Programs can be download from COM1
Built-in 64-bit hardware unique serial number
Communication
Ethernet Port	10M/10BaseT, RJ-45 Port
COM Port	COM driver support interrupt 1K QUEUE Input Output buffer COM1: RS232 (CTS, RTS, RXD, TXD, GND) COM2: RS485 (Data+, Data-)
FRnet Port	Communication speed : 250Kbps Scan time : 128 input/128 output points @ 2.88 mS (I-7188EF-016L) Communication distance : Max. 400m (I-7188EF-016L) Cable: CPEV 0.9 (2P Twisted-pair wire) Distributed I/O modules Max. 8 SA modules, FR-2053 (16 DI) Max. 8 RA modules, FR-2057 (16 DO) Each module of FR-2053/FR2057 module is one group.
Built-in WatchDog Timer (0.8 seconds) Built-in Power Protection and Network Protection Circuit Real Time Clock
Year-2000 compliant Displays seconds, minutes, hours, date of the month Displays month and year from 1980 to 2079 NVSRAM: 31 bytes, battery backup, data valid for up to 10 years
Display
7-segment LED: 5-digit (for I-7188EFD only)
Power
Power requirement	10 - 30 VDC(non-regulated)
Power consumption	2.0W for I-7188EF-016 3.0W for 7188EFD-016
General Environment
Operating temperature	-25C to +75C
Storage temperature	-40C to +80C
Humidity	Operating humidity: 10% ~90% RH, non-condensing torage humidity : 5%~95% RH, non-condensing
Mechanical
Dimensions ( W x H x D )	123mm x 72mm x 33mm
Installation	DIN-Rail, Stack Mounting
