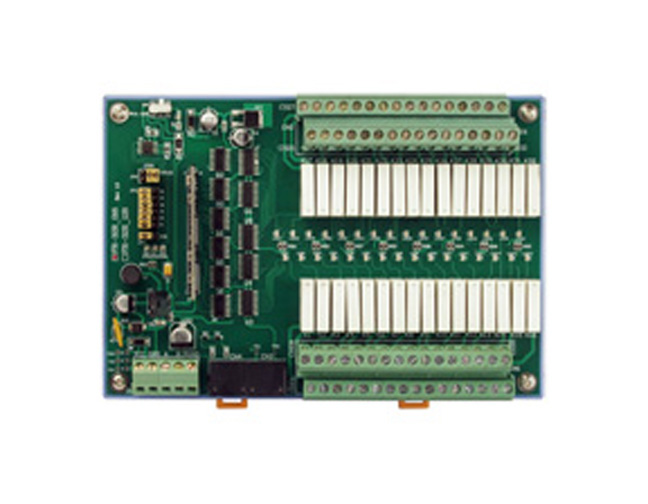

The FR-32R has 32-channel relay output. Not like traditional relay output board, the FR series I/O module has an FRnet interface.The FR I/O module can be used as a distributed remote I/O module or a MagicWire module.The user should select the correct setting when using these modules. Refer to jumper setting. The user can daisy several FRnet modules together. Via FRnet, the FRnet modules can work with PC, PAC, £gPAC and PLC easily. Further information about the networking of FR- 8/16/32R; refer to related literatures of I-7188EF, I-8122, FRB-100/200.
- Factory Automation
- Building automation
- Energy management
- Agriculture automation
| Product Information |
| Communication speed |
250K bps |
| Communication distance |
400m max |
| Number of channels |
8/16/32 ( FR-8/16/32R) |
| Form A relay Type |
SPST |
| Nominal load |
3A/125Vdc, 3A/270Vac |
| Max switching power |
1250VA, 150W |
| Max switching voltage |
125Vdc, 270Vac |
| Max switching current |
5A |
| Life expectancy |
mechanical; electrical |
| Resistive load |
100,000 ops. min; 250Vac/30Vdc@3A |
| Mechanically |
20,000,000 ops. at no load |
| Release time |
5ms |
| Control logic |
TTL Low, Relay on |
| Power Requirement |
10~30V |
| Wire cable |
CPEV 0.9S (2P Twisted-pair wire) |
| Power consumption |
24V@25mA(max) ( FR-8R) |
| 24V@75mA(max) ( FR-16R) |
| 24V@240mA(max) ( FR-32R) |
| Operating temperature |
-25¢XC ~ +75¢XC |
| Operating humidity |
10% ~ 90% RH, non-condensing |
| Storage temperature |
-30¢XC ~ +85¢XC |
| Storage humidity |
5% ~ 95% RH, non-condensing |
| Dimensions |
147 mm x 76 mm ( FR-8R) |
| 173 mm x 117 mm (FR-16R) |
| 173 mm x 117 mm (FR-32R) |
- Built-in FRnet interface
- Real I/O synchronization
- Innovative token-stream technology
- Support Broadcasting
- Real Deterministic Control
- Fixed Scan time: 256 points @ 2.88 ms
- Each bank consists of 8 input channels and has its own ground reference
- ASIC design without CPU
- Memory-map I/O
- No protocol and no software overhead
- Easy Programming and OS-independent
- Din-rail mounting
- Two-Wire Cabling
- Jumper setting
