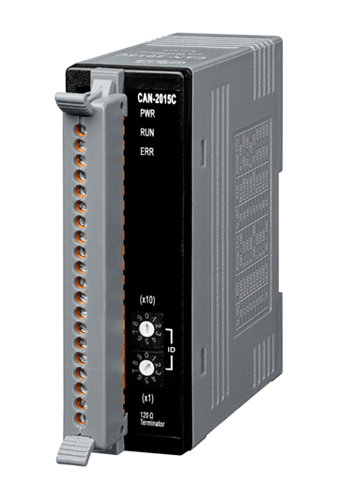

The CAN-2015C is a 8 RTD input channel CANopen based network protocol used for acquiring RTD data. This slave device follows the CiA 301 version 4.02 and CiA 401 version 2.1. It can configured via standard CANopen protocol. The CAN-2015C also passes the CiA CANopen Conformance Test tool, thus making it compatible with other CANopen devices. Applying the EDS can allow the CAN-2015C to be integrated with standard CANopen master.
A CANbus based protocol used ideally for embedded network systems, which include environmental monitoring, remote data acquisition, factory automation, industrial machine control, vehicle control system, medical equipment, and packaging machine control.
- Provide default EDS file
- Passed the validation of CiA CANopen Conformance Test Tools
- ESD Protection 4 KV Contact for each channel
- Support Power Supply +10 ~ +30 VDC
- Support CiA-301 v4.02, CiA-401 v2.1
- Support Dynamic PDO
| CANopen Interface |
| Connector |
5-pin screwed terminal block (CAN_GND, CAN_L, CAN_SHLD, CAN_H, CAN_V+) |
| Baud Rate (bps) |
10 k, 20 k, 50 k, 125 k, 250 k, 500 k, 800 k, 1 M, selected by rotary switch |
| Terminator Resistor |
DIP switch for the 120 Ω terminator resistor |
| Protocol |
CANopen CiA 301 ver4.02, CiA 401 ver2.1 |
| Node ID |
1~99 selected by rotary switch |
| NMT |
Slave |
| Error Control |
Node Guarding protocol / Heartbeat Producer |
| SDOs |
1 server, 0 client |
| PDOs |
10 RxPDO, 10 TxPDO (Supports dynamic PDO) |
| PDO Modes |
Event-triggered, remotely-requested, synchronous (cyclic), synchronous (acyclic) |
| Emergency Message |
Yes |
| EDS file |
Yes |
| Analog Input |
| Channels |
8 channels for 2-wire or 3-wire RTD |
| Input Type |
Pt100, Pt1000, Ni120, Cu100, Cu1000, JPt100 |
| Resolution |
16-bit |
| Sampling Rate |
10 Samples/Sec (Total) |
| Accuracy |
+/-0.05% FSR |
| Zero Drift |
+/- 0.5 μV/ °C |
| Span Drift |
+/- 20 ppm/ °C |
| Common Mode Rejction |
150 dB |
| Normal Mode Rejection |
100 dB |
| Individual Channel Configuration |
Yes |
| Open Thermocouple Detection |
Yes |
| Over Voltage Protection |
120 VDC / 110 VAC |
| Input Impedence |
20 MΩ |
| Isolation |
3000 V DC-DC isolation, 3000 Vrms photo-coupler isolation |
| Hardware |
| ESD Protection |
Contact 4 kV class A |
| LED |
| LEDs |
PWR LED, RUN LED, ERR LED, 8 LEDs for the AI high alarms or low alarms |
| Power |
| Power Supply |
Unregulated +10 ~ +30 VDC |
| Power Consumption |
1.5 W |
| Mechanism |
| Casing |
Plastic case, fire-retardant materials (UL94-V0 Level) |
| Installation |
DIN-Rail |
| Dimensions |
33 mm x 99 mm x 78 mm ( W x L x H ) |
| Environmental |
| Operating Temperature |
-25°C ~ +75°C (-13°F ~ +167°F) |
| Storage Temperature |
-30°C ~ +80°C (-22°F ~ +176°F) |
| Ambient Relative Humidity |
10 ~ 90% RH, non-condensing |
|
