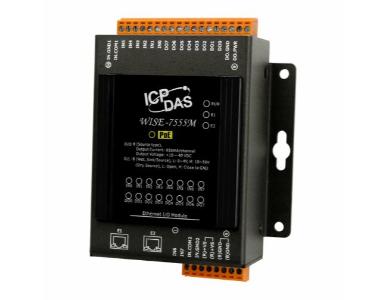

WISE-7555M - 8 Dry/Wet contact Digital Input Channels and 8 source-type Digital Output PoE Module, web browser configurable, all
by ICP DAS
|
|
|
|
WISE-7555M_SUMMARY.html
- Runs on browsers, no extra software tool is required.
- No more programming, Web pages provided for control logic editing.
- IF-THEN-ELSE logic rules execution ability.
- Built-in I/O(DI: 8 Channels; DO: 8 Channels)
- Support I/O Monitoring/Control, Counter, Timer, Email sending and CGI Command sending operations.
- Modbus TCP Protocol for SCADA System Integration.
- IEEE 802.3af-compliant Power over Ethernet (PoE).
- 2-port Ethernet Switch for Daisy-Chain Topology.
- Support Schedule operation
- MQTT Protocol for IT & IoT(Internet of Things) System Integration.
|
|
|
WISE-7555M_DESCRIPTION.html
Developed by ICP DAS, WISE (Web Inside, Smart Engine), is a user-friendly yet powerful controller for remote logic control and monitoring in various industrial applications. WISE-7555M is designed with a web site interface allowing users to implement IF-THEN-ELSE control logic on controller with no programming required.
WISE-7555M.html
Hardware Specifications
|
Channels
|
8
|
|
Contact
|
Dry +Wet
|
|
Sink/Source (NPN/PNP)
|
Dry: Source
Wet: Sink/Source
|
|
Wet Contact
|
On Voltage Level
|
+10 VDC to +50 VDC
|
|
Off Voltage Level
|
+4 VDC Max.
|
|
Dry Contact
|
On Voltage Level
|
Close to GND
|
|
Off Voltage Level
|
Open
|
|
Counters
|
Max. Counts
|
16-bit (65535)
|
|
Max. Input Frequency
|
50 Hz
|
|
Min. Pulse Width
|
10 ms
|
|
Overvoltage Protection
|
+70 VDC
|
|
Effective Distance
|
500 M Max.
|
|
Channels
|
8
|
|
Type
|
Isolated Open Collector
|
|
Sink/Source (NPN/PNP)
|
Source
|
|
Max. Load Current
|
650 mA/channel at 25°C
|
|
Load Voltage
|
+10 VDC to +40 VDC
|
|
Overvoltage Protection
|
47 VDC
|
|
Overload Protection
|
-
|
|
Short-circuit Protection
|
Yes
|
|
Ethernet Port
|
2 x RJ-45, 10/100 Base-TX, Swtich Ports
|
|
PoE
|
Yes
|
|
Protocol
|
Modbus TCP, MQTT
|
|
for System Running
|
Yes
|
|
for Ethernet Link/Act
|
Yes
|
|
for I/O Channel Status
|
Yes
|
|
for PoE Power
|
Yes
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for Each Terminal and
±8 kV Air for Random Point
|
|
EFT (IEC 61000-4-4)
|
±2 kV for Power Line
|
|
Surge (IEC 61000-4-5)
|
±2 kV for Power Line
|
|
Reverse Polarity Protection
|
Yes
|
|
Powered from Terminal Block
|
12 to 48 VDC
|
|
Powered from PoE
|
Yes, IEEE 802.3af, Class1
|
|
Consumption
|
3.7 W (Max.)
|
|
Dimensions (L x W x H)
|
120mm x 97mm x 42mm
|
|
Installation
|
Wall mounting
|
|
Operating Temperature
|
-25°C to +75°C
|
|
Storage Temperature
|
-30°C to +80°C
|
|
Humidity
|
10 to 90% RH, non-condensing
|
Software Specifications
|
Rule Configuration Website
|
Access Web server on WISE controllers to edit and upload logic rules through web browser.
|
|
72 IF-THEN-ELSE Logic Rules
|
3 IF conditions with AND or OR operators
3 THEN actions and 3 ELSE actions
|
|
48 Internal Registers
|
Hold temporary variables and read/write data
|
|
24 Timers
|
Delay / Timing functions.
|
|
24 Schedules
|
Setup prescheduled routine tasks.
|
|
24 Emails
|
Send Email messages to pre-set Email receivers.
|
|
24 CGI Commands
|
Send pre-set CGI commands.
|
|
24 Recipes
|
Set up THEN/ELSE action groups.
|
|
8 P2P remote modules
|
Set up the connection information for the remote WISE modules.
|
|
Modbus TCP Protocol
|
Real time control and monitoring I/O channels and system status of controllers via SCADA software.
|
|
MQTT Protocol
|
Real time message publish/subscribe mechanism for I/O channels and system status via IT/IoT software.
|
|
DI Channel
|
ON, OFF, ON to OFF, OFF to ON, Change
|
|
Internal Register
|
=, >, <, >=, <= (value)
|
|
DI Counter
DO Counter
|
=, >, <, >=, <= (value), Change
|
|
Timer
|
Timeout, Not Timeout
|
|
Schedule
|
In Range, Out of Range
|
|
P2P
|
DI, AI, DI counter, DO counter, IR
|
|
Rule Status
|
Enable, Disable
|
|
DO Channel
|
ON, OFF, Pulse Output
|
|
Internal Register
|
Change the value
|
|
DI Counter
DO Counter
|
Reset
|
|
Timer
|
Start, Reset
|
|
Schedule
|
Enable, Disable
|
|
Email
MQTT message
CGI Commands
|
Send
|
|
Recipe
|
Execute
|
|
P2P
|
DO(On/Off), AO, IR
|
|
Rule Status
|
Enable, Disable
|
|
