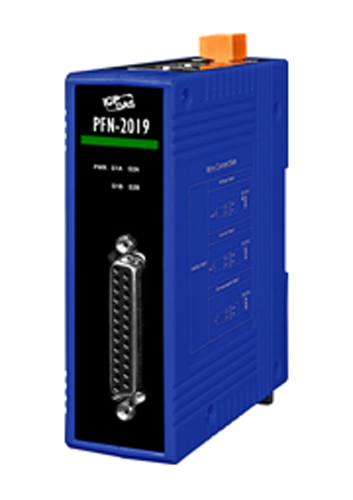

ICP DAS PFN-2019/S - PROFINET 10 Channel Universal Analog Input (RoHS)
by ICP DAS
|
|
|
|
PROFINET 10 Channel Universal Analog Input (Current Input) Module with 4 kV Contact ESD protection for any terminal. Has power input range of +10 ~ +30 VDC. Communicates over PROFINET protocol. Supports operating temperatures of -25°C ~ +75°C (-13°F ~ 167°F) and is din rail mountable.
|
|
|
The PFN-2019 is specially designed for PROFINET IO device. It has 10-channel universal analog input with voltage and current input types. It provides extremely accurate thermocouple measurement and automatically cold-junction compensation for each channel. You can access and configure it by using the GSDML file in any PROFINET Engineering tool.
- Protocol: PROFINET IO Device
- PROFINET Conformance Class B and RT Class 1
- Cyclic Time: 1ms (min)
- Generic GSDML File Provided (Version 2.25)
- 16-bits resolution & 10Hz sample rate
- Supports thermocouple devices with J,K,T,E,R,S,B,N,C
- 4 kV Contact ESD protection for any terminal
- Wide range of power input (+10 ~ +30 VDC) and operating temperature -25°C ~ +70°C (-13°F ~ +158°F)
| Hardware |
| CPU |
32-bit CPU Core |
| RAM/Flash/EEPROM |
32 MB / 4 MB / 8 KB |
| Watchdog |
CPU built-in |
| ESD Protection |
4 kV class A |
| PROFINET Interface |
| Protocol |
PROFINET IO Device |
| Conformance Classes |
Class B |
| Services |
RTC, RTA, CL-RPC, DCP, LLDP, I&M |
| Cycle Time |
1 ms (min) |
| Analog Input |
| Channels |
10 channel differential |
| Input Range |
+/-15mV, +/-50mV, +/-100mV, +/-500mV, +/-1V, +/-2.5V, +/-5V, +/-10V, +/-20mA, 0~20mA, 4~20mA (Jumper Selectable),
Thermocouple Type: J, K, T, E, R, S, B, N, C |
| Resolution |
16 bit |
| Sample Rate |
10 Hz (Total) |
| Accuracy |
+/- 0.1% of FSR |
| Open Wire Detection |
Yes |
| LED |
| Round LED |
PWR LED, S1A LED, S1B LED, S2A LED, S2B LED |
| Power |
| Power supply |
Unregulated +10 ~ +30 VDC |
| Protection |
Power reverse polarity protection, Over-voltage brown-out protection |
| Power Consumption |
5 W |
| Mechanism |
| Installation |
DIN-Rail |
| Dimensions |
33 mm x 93 mm x 126 mm (W x L x H) |
| Environment |
| Operating Temp. |
-25°C ~ +70°C (-13°F ~ 158°F) |
| Storage Temp. |
-30°C ~ +80°C (-22°F ~ +176°F) |
| Humidity |
10 ~ 90% RH, non-condensing |
|
|
