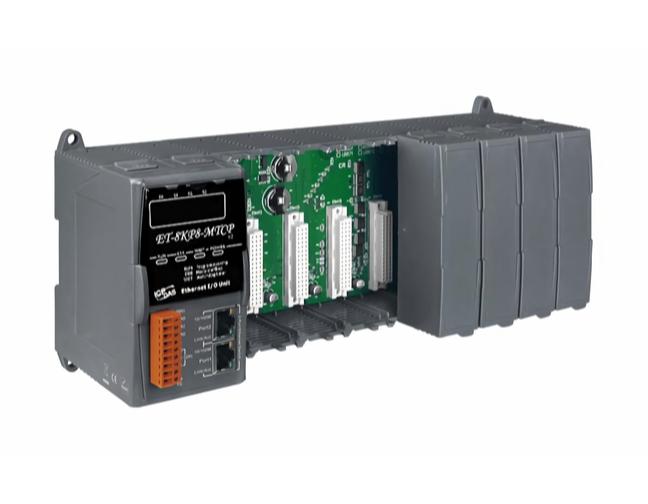

ET-8KP8-MTCP - Modbus TCP Ethernet Expansion Unit with 8 slots by ICP DAS
|
|
|
ET-8KP8-MTCP_SUMMARY.html
- Two Ethernet Ports for Daisy-Chain Topology
- Supports Modbus TCP
- Supports Modbus RTU/ASCII
- Supports Modbus TCP to RTU Gateway
- Auto Configuration
- 8 I/O Slots for I-8K and I-87K Series Modules
- Operating Temperature: -25 ~ +75C
|
|
|
ET-8KP8-MTCP_DESCRIPTION.html
ET-8KP8-MTCP is a Modbus TCP I/O expansion unit to expand I-8K and I-87K series I/O modules over the Ethernet for industrial monitoring and controlling applications. It offers two Ethernet switch ports for daisy-chain topology. The daisy-chain feature allows ET-8KP8 to connect in series to each other or other Ethernet devices. Users can easily simplify the cabling and save installation space with the feature. It is designed to be used in harsh and noisy environment, so the hardware is manufactured with wide power input range (10 ~ 30 VDC), isolated power input and can operate under wide temperature (-25 ~ +75°C).
ET-8KP8-MTCP.html
Display | Type | 5 x Digit 7 Segment LED Display | LED Indicators | Status | 1 x Run, 1x Module offline, 1 x WDT, 1 x Power | I/O Expansion | I/O Type | I-87K, I-8K Series | Slots | 8 | COM Ports | Ports | 1 x RS-232 (Console) | Protocol | Modbus RTU/ASCII Slave | HMI | Push Button | 4 | Ethernet | Ports | 2 x RJ-45, 10/100 Base-TX | Protocol | Modbus TCP Slave, Modbus TCP to RTU Gateway | Power | Input Range | +10 ~ 30 VDC (1 kV Isolated) | Redundant Power Inputs | Yes | Consumption | 2.4 W | Mechanical | Dimensions (mm) | 312 x 132 x 111 (W x L x H) | Installation | DIN-Rail, Wall mounting | Environmental | Operating Temperature | -25 ~ +75C | Storage Temperature | -30 ~ +75C | Humidity | 10 ~ 90% RH, Non-condensing |
|
|
|
