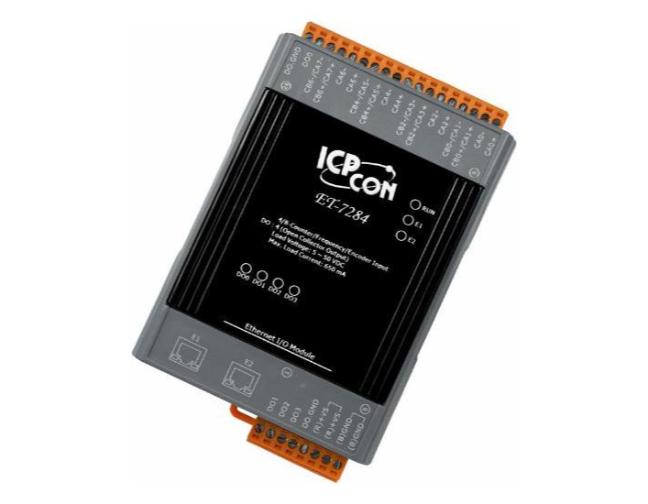

The ET-7284 /PET-7284 is a 32-bit high-speed Counter/Frequency/Encoder input and 4-channel Digital Output module that offers a variety of input mode options, including "Up Counter", "Frequency Input", "Up/Down Counter", "Direct/Pulse Counter" and "A/B Phase Counter". The mode can be individually configured for all 8 channels, where, for example, some channels can be set to "Up Counter" mode, and other channels can be individually set to "Frequency", "Up/ Down Counter" or "Encoder input" mode. The built-in programmable low pass filter can be used to eliminate noise where the width of the high/low pulse is narrower than the minimum high/low width of the low pass filter.
ET-7284.html
|
Built-In Web Server
|
Yes
|
|
Web HMI
|
Yes
|
|
I/O Pair Connection
|
Yes
|
|
Ethernet Port
|
2 x RJ-45, 10/100 Base-TX, Swtich Ports
|
|
PoE
|
-
|
|
Protocol
|
Modbus TCP, Modbus UDP
|
|
Security
|
ID, Password and IP Filter
|
|
Dual Watchdog
|
Yes, Module (0.8 seconds), Communication (Programmable)
|
|
for System Running
|
Yes
|
|
for Ethernet Link/Act
|
Yes
|
|
for DI/DO status
|
Yes
|
|
for PoE Power
|
-
|
|
Ethernet
|
1500 VDC
|
|
I/O
|
2500 VDC
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
|
|
EFT (IEC 61000-4-4)
|
±4 kV for Power Line
|
|
Surge (IEC 61000-4-5)
|
±2 kV for Power Line
|
|
Reverse Polarity Protection
|
Yes
|
|
Powered from Terminal Block
|
12 ~ 48 VDC
|
|
Powered from PoE
|
-
|
|
Consumption
|
4.2 W
|
|
Dimensions (L x W x H)
|
120 mm x 76 mm x 38 mm
|
|
Installation
|
DIN-Rail or Wall mounting
|
|
Operating Temperature
|
-25 to +75C
|
|
Storage Temperature
|
-30 to +80C
|
|
Humidity
|
10 to 90% RH, Non-condensing
|
I/O Specifications
|
Counter/Frequency/Encoder Input
|
|
Counter/Frequency/Encoder Input
|
4-channel Up/Down Counter (CW/CCW)
4-channel Dir/Pulse Counter (Bi-directional)
4-channel A/B Phase (Quadrant Counting)
8-channel Up Counter
8-channel Frequency
|
|
Contact
|
Wet
|
|
Sink/Source (NPN/PNP)
|
Sink
|
|
Types
|
Counter, Frequency or Encoder
|
|
Counter/Encoder bits
|
32-bit (4,294,967,295)
|
|
On Voltage Level
|
+3.5 VDC ~ +30 VDC
|
|
Off Voltage Level
|
+1 VDC Max.
|
|
Programmable Low Pass Filter
|
1 ~ 32767 ?s
|
|
Individual Channel Configuration
|
Yes
|
|
Max. Speed
|
3.5 VDC ~ 10 VDC: 200 kHz
10 VDC ~ 30 VDC: 150 kHz
|
|
Frequency Accuracy
|
1 Hz ~ 200 kHz: ±0.025% of Input Frequency (Note1)
|
|
Count Value Retention
|
Yes
|
|
Channels
|
4
|
|
Type
|
Isolated Open Collector
|
|
Sink/Source (NPN/PNP)
|
Sink
|
|
Max. Load Current
|
650 mA/channel
|
|
Load Voltage
|
+5 VDC ~ +50 VDC
|
|
Overvoltage Protection
|
60 VDC
|
|
Overload Protection
|
1.4 A
|
|
Short-circuit Protection
|
Yes
|
|
Power-on Value
|
Yes, Programmable
|
|
Safe Value
|
Yes, Programmable
|
|
