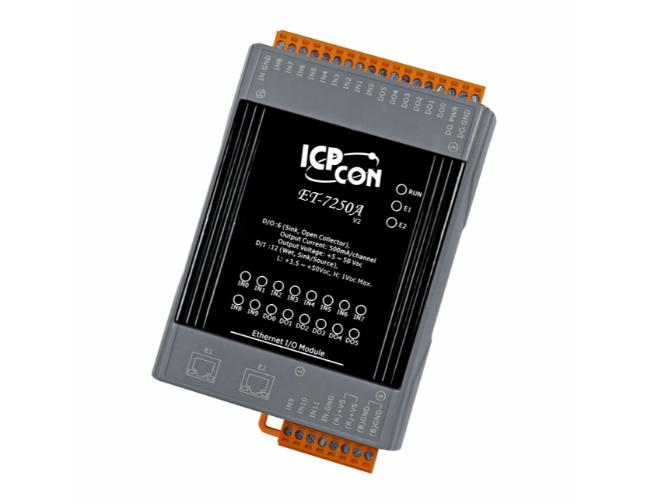

ET-7250A - Ethernet I/O Module with 2-port Ethernet Switch, with 12-channel Digital Input, 6-channel Digital Output (RoHS)
by ICP DAS
|
|
|
|
ET-7250A_SUMMARY.html
- Built-in Web Server
- Web HMI
- Support for both Modbus TCP and Modbus UDP Protocols
- Communication Security
- 2-port Ethernet Switch for Daisy-Chain Topology
- Dual Watchdog
- Wide Operating Temperature Range: -25 to +75C
- I/O Pair Connection
- Built-in I/O
- DI/Counter: 12 Channels
- DO: 6 Channels
|
|
|
ET-7250A_DESCRIPTION.html
ET-7250A provides 6 sink-type digital output channels and 12 wet contact digital input channels, each of which is able to be used as a 32-bit counter. In addition, each digital input of ET-7250A accepts either dry contact or wet contact.
ET-7250A.html
System Specifications
|
Built-In Web Server
|
Yes
|
|
Web HMI
|
Yes
|
|
I/O Pair Connection
|
Yes
|
|
Ethernet Port
|
2 x RJ-45, 10/100 Base-TX, Swtich Ports
|
|
PoE
|
-
|
|
Protocol
|
Modbus/TCP, Modbus/UDP
|
|
Security
|
ID, Password and IP Filter
|
|
Dual Watchdog
|
Yes, Module (0.8 second), Communication (Programmable)
|
|
for System Running
|
Yes
|
|
for Ethernet Link/Act
|
Yes
|
|
for DI/DO status
|
Yes
|
|
for PoE Power
|
-
|
|
Ethernet
|
1500 VDC
|
|
I/O
|
2500 VDC
|
|
ESD (IEC 61000-4-2)
|
±4 kV Contact for Each Terminal and ±8 kV Air for Random Point
|
|
EFT (IEC 61000-4-4)
|
±4 kV for Power Line
|
|
Reverse Polarity Protection
|
Yes
|
|
Powered from Terminal Block
|
12 ~ 48 VDC
|
|
Powered from PoE
|
-
|
|
Consumption
|
2.7 W (Max.)
|
|
Dimensions (L x W x H)
|
120 mm x 76 mm x 38 mm
|
|
Installation
|
DIN-Rail or Wall mounting
|
|
Operating Temperature
|
-25 to +75C
|
|
Storage Temperature
|
-30 to +80C
|
|
Humidity
|
10 to 90% RH, Non-condensing
|
I/O Specifications
|
Channels
|
12
|
|
Contact
|
Dry +Wet Contact
|
|
Sink/Source (NPN/PNP)
|
Dry: Source
Wet: Sink
|
|
Wet Contact
|
On Voltage Level
|
1 VDC Max.
|
|
Off Voltage Level
|
+3.5 VDC ~ +50 VDC Max.
|
|
Dry Contact
|
On Voltage Level
|
Close to GND
|
|
Off Voltage Level
|
Open
|
|
Counters
|
Max. Count
|
4,294,967,285 (32 bits)
|
|
Max. Input Frequency
|
100 Hz
|
|
Min. Pulse Width
|
5 ms
|
|
Overvoltage Protection
|
+60 VDC
|
|
Channels
|
6
|
|
Type
|
Isolated Open Collector
|
|
Sink/Source (NPN/PNP)
|
Sink
|
|
Max. Load Current
|
500 mA/channel
|
|
Load Voltage
|
+5 VDC ~ +50 VDC
|
|
Overvoltage Protection
|
60 VDC
|
|
Overload Protection
|
1.3 A
|
|
Short-circuit Protection
|
Yes
|
|
Power-on Value
|
Yes, Programmable
|
|
Safe Value
|
Yes, Programmable
|
|
