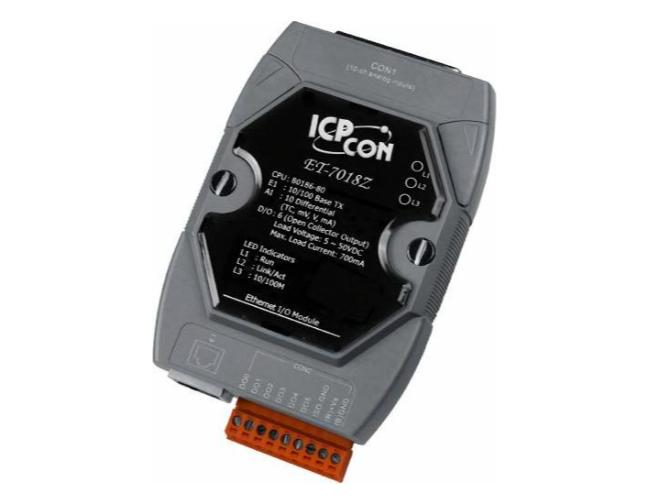

ICP DAS ET-7018Z/S - 10-channel Thermocouple, Analog Input, Current Input, and Voltage Input with High Voltage Protection and 6-
by ICP DAS
|
|
|
|
ET-7018Z_S_SUMMARY.html
ET-7018Z/S - 10-channel Thermocouple, Analog Input, Current Input, and Voltage Input with High Voltage Protection and 6-channel Isolated Digital Output Data Acquisition Module with short cable, communicable over Ethernet and Modbus TCP Protocol. The S2 version comes with DN-1822 Daughter Board and 1.8m Cable. Supports operating temperatures between -25°C to +75°C (-13°F ~ +167°F).
|
|
|
ET-7018Z_S_DESCRIPTION.html
ET-7018Z/S - 10-channel Thermocouple, Analog Input, Current Input, and Voltage Input with High Voltage Protection and 6-channel Isolated Digital Output Data Acquisition Module with short cable, communicable over Ethernet and Modbus TCP Protocol. The S2 version comes with DN-1822 Daughter Board and 1.8m Cable. Supports operating temperatures between -25°C to +75°C (-13°F ~ +167°F).
ET-7018Z_S.html
| Software | | Built-In Web Server | Yes | | Web HMI | Yes | | I/O Pair Connection | Yes | | Communication | | Ethernet Port | 10/100 Base-TX with Auto MDI/MDI-X | | Protocol | Modbus/TCP, Modbus/UDP | | Security | ID, Password and IP Filter | | Dual Watchdog | Yes, Module (0.8 second), Communication (Programmable) | | LED Indicators | | L1 (System Running) | Yes | | L2 (Ethernet Link/Act) | Yes | | L3 (Ethernet 10/100 M Speed) | Yes | | PoE Power | - | | 2 Way Isolation | | Ethernet | 1500 VDC | | I/O | 2500 VDC | | EMS Protection | | ESD (IEC 61000-4-2) | 4 kV Contact for Each Terminal and 8 kV Air for Random Point | | EFT (IEC 61000-4-4) | +/-4 kV for Power | | Power Requirements | | Reverse Polarity Protection | Yes | | Powered from Terminal Block | Yes, 10 ~ 30 VDC | | Powered from PoE | - | | Consumption | 2.0 W | | Mechanical | | Dimensions (W x L x H) | 72 mm x 116 mm x 35 mm | | Installation | DIN-Rail or Wall mounting | | Environmental | | Operating Temperature | -25 XC ~ +75 XC | | Storage Temperature | -30 XC ~ +80 XC | | Humidity | 10 ~ 90% RH, non-condensing | | Analog Input | | Channels | 10 (Differential) | | Sensor Type | +/-15 mV, +/-50 mV, +/-100 mV, +/-500 mV, +/-1 V, +/-2.5 V
+/-20 mA, 0 ~ 20 mA, 4 ~ 20 mA (Requires Optional External 125 [ Resistor)
Thermocouple (J, K, T, E, R, S, B, N, C, L, M, LDIN43710) | | Individual Channel Configuration | Yes | | Resolution | 16-bit | | Sampling Rate | 10 Samples/Second (Total) | | Accuracy | +/-0.1% of FSR or better | | Zero Drift | +/-0.5 gV/XC | | Span Drift | +/-25 ppm/XC | | Over Voltage Protection | 240 Vrms | | Input Impedance | >300 k[ | | Common Mode Rejection | 150 dB Min. | | Normal Mode Rejection | 100 dBV | | Temperature Output Consistency | Yes | | Stable Temperature Output in the Field | Yes | | Open Wire Detection | Yes | | Virtual Channel to Channel Isolation | +/-400 VDC | | Digital Output | | Channels | 6 | | Type | Isolated Open Collector (Sink) | | Max. Load Current | 700 mA/Channel | | Load Voltage | 5 VDC~ 50 VDC | | Overvoltage Protection | 60 VDC | | Overload Protection | 1.4 A | | Short-circuit Protection | Yes | | Power-on Value | Yes, Programmable | | Safe Value | Yes, Programmable | | Thermocouple Type | RangeC | | J | -210 ~ +760 | | K | -270 ~ +1372 | | T | -270 ~ +400 | | E | -270 ~ +1000 | | R | 0 ~ +1768 | | S | 0 ~ +1768 | | B | 0 ~ +1820 | | N | -270 ~ 1300 | | C | 0 ~ 2320 | | L | -200 ~ +800 | | M | -200 ~ +100 | | L2(DIN43710) | -200 ~ +900 |
|
|
|
|
